Vibratory Feeding Scale Load Cell

Vibratory Feeding Scale Load Cell thumbnail-1
Vibratory Feeding Scale Load Cell thumbnail-2
Vibratory Feeding Scale Load Cell photo-1
Vibratory Feeding Scale Load Cell photo-2
US$ 20 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
MLC207
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number MLC207
Product Description
vibratory feeding scale load cell

Features

Model:MLC207

Category: button load cell

Range: 50,100, 200, 500, 1000, 2000, 3000, 5000, 7500, 10000lbf

Dimension: D32*8.1mm; D38*11mm

Material: Alloy steel,stainless steel

Application: Feed scale,vibratory feeding scale

Characteristic: force measure load cell, vibratory feeding scale load cell

Technology


other dimension

Load(lbs)

D1

D2

D3

H

L

A

SR



200-2000

32

8.1

25.4

10

1.8

32UNC

35



3000-10000

38

11

31.4

18

2.0

32UNC

35



Specification

comprehensive error:

0.5%FS/1.0%FS

output resistance:

350±5Ω

Rated output:

1/0.5 mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.3%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.1%FS

compensated temp:

-10~+40ºC

Repeatability:

0.1%FS

use temperature:

-20~+55ºC

Creep:

0.3FS/10MIN

temp effect on zero:

0.03%FS/10ºC

Zero balance:

±1%FS

Temp effect on span:

0.02%FS/10ºC

Input resistance:

380±30Ω

defend grade:

IP68
Application

 vibratory feeding scale load cell

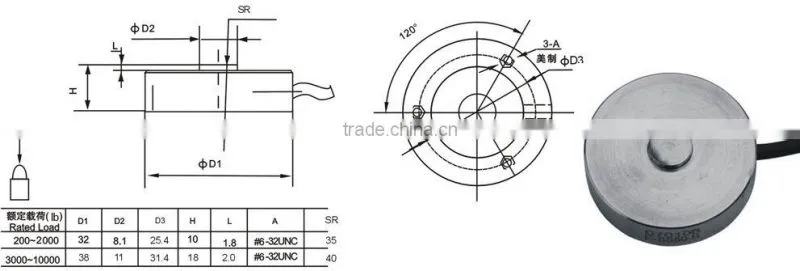

Product Dimension
vibratory feeding scale load cell

Force type

vibratory feeding scale load cell

Packaging & Shipping

Product photo

vibratory feeding scale load cell



Packing picture

vibratory feeding scale load cell



Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
