Crane Scale Load Cell ,overload Limiter Load Cell

Crane Scale Load Cell ,overload Limiter Load Cell thumbnail-1
Crane Scale Load Cell ,overload Limiter Load Cell thumbnail-2
Crane Scale Load Cell ,overload Limiter Load Cell photo-1
Crane Scale Load Cell ,overload Limiter Load Cell photo-2
US$ 100 - 300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
MLC314
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number MLC314

Product Description
crane scale load cell ,overload limiter load cell

Features

Model: MLC314

Category: Tension load cell

Range: 5t,10t

Dimension: 255*130*30/295*130*40mm

Material: Alloy steel,stainless steel

Application: crane scale,hopper scale,overload limiter

Characteristic: crane scale load cell,overload limiter load cell

Technology


                                                                            other dimension

Load(T)

L1

L2

L3

H1

H2

B1

D

L4

5

255

201

50

30

28

60

D22

72

10

295

215

70

40

38

84

28

92

Specification

comprehensive error:

0.03%FS

output resistance:

352±3Ω

Rated output:

2±0.002mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.03%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.03%FS

compensated temp:

-10~+40ºC

Repeatability:

0.02%FS

use temperature:

-20~+65ºC

Creep:

0.02%FS/10MIN

temp effect on zero:

0.03%FS/10ºC

Zero balance:

±1%FS

Temp effect on span:

0.02%FS/10ºC

Input resistance:

380±3Ω

defend grade:

IP68

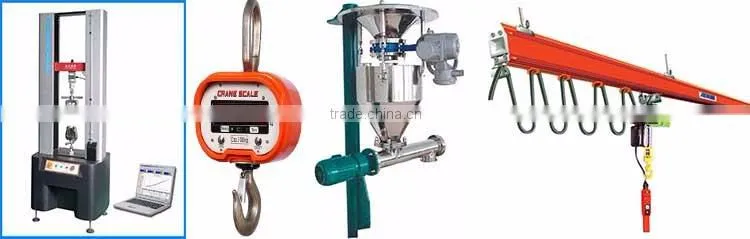

Application

 crane scale load cell ,overload limiter load cell

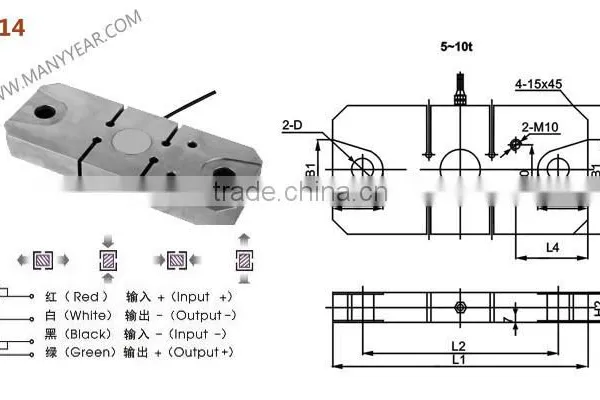

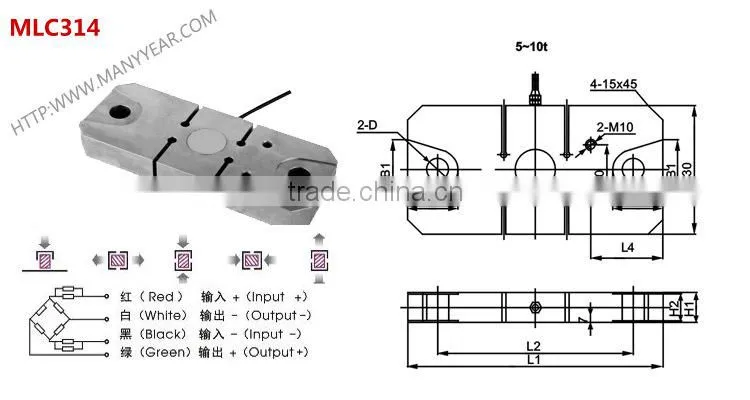

Product Dimension
crane scale load cell ,overload limiter load cell

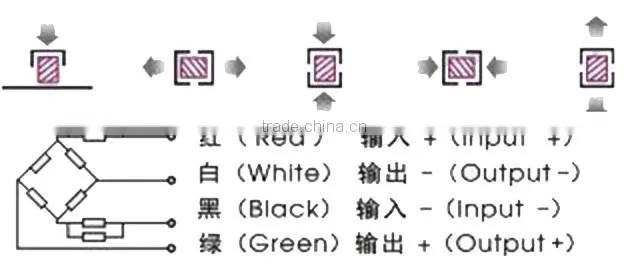

Force type

crane scale load cell ,overload limiter load cell

Packaging & Shipping

Product photo

crane scale load cell ,overload limiter load cell



Packing picture

crane scale load cell ,overload limiter load cell



Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
