Hanging Scale Load Cell ,crane Scale Load Cell

Hanging Scale Load Cell ,crane Scale Load Cell thumbnail-1
Hanging Scale Load Cell ,crane Scale Load Cell thumbnail-2
Hanging Scale Load Cell ,crane Scale Load Cell photo-1
Hanging Scale Load Cell ,crane Scale Load Cell photo-2
US$ 20 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
MLC301
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number MLC301
Product Description
hanging scale load cell ,crane scale load cell

Features

Model: MLC301

Category: Tension load cell

Range: 100kg,150kg,200kg,250kg,300kg,500kg,1000kg,2000kg,5000kg

Dimension: 50.8*12.7*64/50.8*19*76/76.2*25.4*108mm

Material: Alloy steel,stainless steel

Application: hanging scales,crane scale, tension and compression test

Characteristic: hanging scale load cell,crane scale load cell

Technology


Other dimension



 rated range (kg)

A

B

C

M

301

10~50

50.8

12.7

64

M8

100~500

50.8

19

76

M12*1.75

750~1500

50.8

25.4

76

M12*1.75

2000~5000

76.2

25.4

108

M18*1.5

301B

250~500 LB

50.8

19

76

1/2-20UNF

301C

20~100

50

12.5

62

M6

150~1000

50

25

62

M12*1.25

1500~3000

75

27

100

M20*1.5

5000

90

40

140

M24*2

301S

1000~3000

60

30

80

M16

Specification

comprehensive error:

0.03%FS

output resistance:

350±5Ω

Rated output:

2±0.02mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.03%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.03%FS

compensated temp:

-10~+40ºC

Repeatability:

0.02%FS

use temperature:

-20~+65ºC

Creep:

0.03%FS/10MIN

temp effect on zero:

0.03%FS/10ºC

Zero balance:

±1%FS

Temp effect on span:

0.02%FS/10ºC

Input resistance:

350±5Ω

defend grade:

IP66
Application

 hanging scale load cell ,crane scale load cell

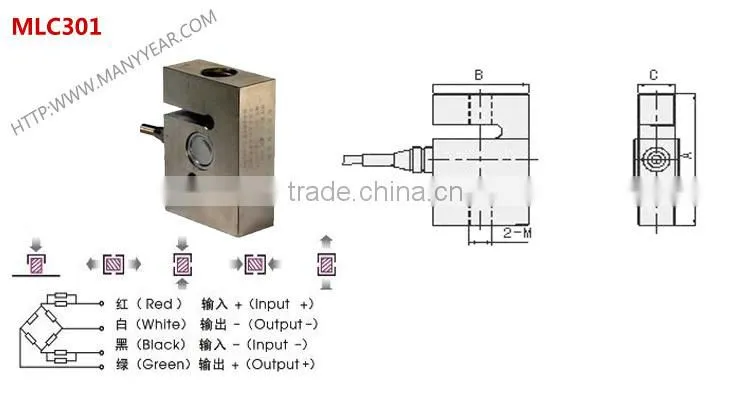

Product Dimension
hanging scale load cell ,crane scale load cell

Force type

hanging scale load cell ,crane scale load cell

Packaging & Shipping

Product photo

hanging scale load cell ,crane scale load cell



Packing picture

hanging scale load cell ,crane scale load cell



Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
