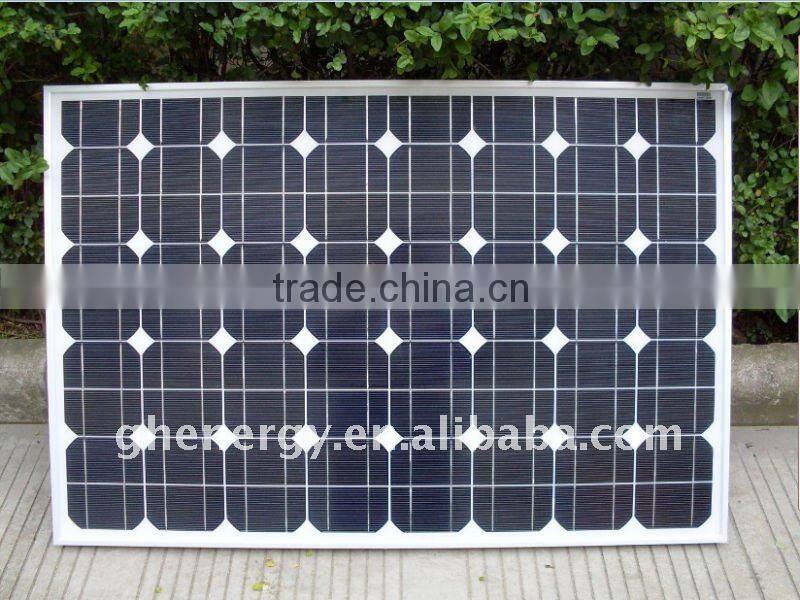

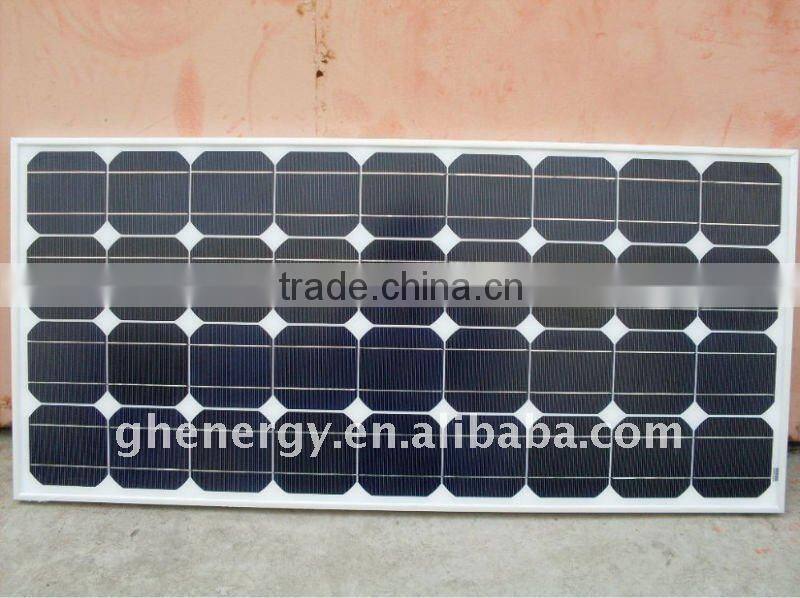

On Sale Solar Modules Monocrystalline 110W GH Energy,solar Panel,PV System

Name: On Sale Solar Modules Monocrystalline 110W GH Energy,solar Panel,PV System
Brand: GH Solar
SKU: 130617753
Availability: InStock

US$ 0.49 - 0.62 MOQ: 9999 Watts

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

GH Solar

Model Number:

GHSolar-040

Zhejiang Ganghang Solar Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name GH Solar

Model Number GHSolar-040

Specification Normal

Application Commercial

Output Voltage (V) 55V

Load Power (W) 110W

Solar Power (W) 100W

Work Time (h) 24H

Specifications

solar modules soalr panels solar cells PV system
1.Solar panel:110W
2.Certification:TUV CE
3.Monocystalline Silicon
4.MOQ:10

solar modules soalr panels solar cells PV system

Our products have got the certificates of IEC, TUV, UL, CE, PV CYCLE membership and etc.

Specification of module
Model	TECHNICAL					SIZE(mm)				QTY IN CONTAINER			REMARKS
Model	Wp	Vmp	Imp	Voc	Isc	Length	Width	Thickness	Weight(kg)	20’	40’	40HQ	REMARKS
GH005-M08	5	16.8	0.30	21.0	0.33	306	218	30	1.0				Cutting cell or Completed cell
GH010-M08	10	16.8	0.60	21.0	0.66	337	289	30	1.5	5186	10736	12550
GH020-M08	20	16.8	1.19	21.0	0.32	636	283	30	2.2	2824	5846	6834
GH040-M08	40	17.2	2.33	21.6	2.64	618	539	30	4.3	1626	3366	3934	Cutting cell or Completed cell
GH050-M08	50	17.2	2.9	21.6	3.30	767	539	35	4.8	1490	3084	3608
GH060-M08	60	17.2	3.49	21.6	3.96	732	658	35	3.4	1174	2430	2842
GH080-M08	80	17.2	4.65	21.6	5.28	1196	534	35	8.0	860	1780	2082	36pcs 5” cell
GH100-M08	100	17.2	5.80	21.6	6.60	1200	680	35	13.0	466	964	1128	6” Cutting cell
GH120-M08	120	17.2	6.98	21.6	7.92	1416	680	35	13.0	466	964	1128	36pcs 5” cell
GH180-P06	180	28.6	6.29	36.2	7.10	1590	960	50	18				56pcs 6” cell
GH200-P06	200	28.6	6.98	36.2	7.90	1590	960	50	18				56pcs 6” cell
GH240-P06	240	34.4	6.98	43.4	7.90	1880	960	50	22				72pcs 6” cell
GH280-M05	280	36.1	7.78	44.1	8.80	1880	960	50	22				72pcs 6” cell cell
