Hot Sale Solar Panel Simulator ,Solar Module Simulator,Solar Simulator German Quality
for solar pv assembly Production line
(Solar module production line Turkey project)

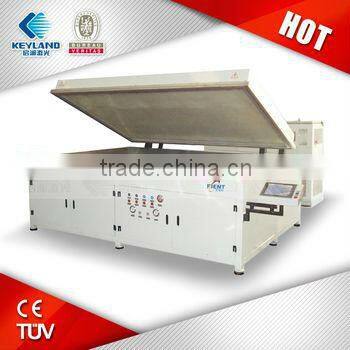

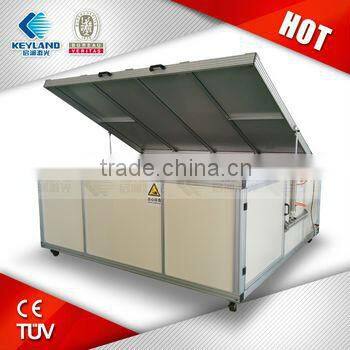

AutoMatic Solar Module Laminating Machine
Solar Panel Laminator Area: 1100*2200mm;1800*2200mm;1800*2600mm;2200*2200mm;2200*2400;2200*2600mm
REMARKS: We can design and manufacture all kinds of solar Machines according to customer requirements.
Model | Solar Laminating area |
Dimension (mm)
| weight |
| KL-C1 | 2200*1100mm | 2590×1550×1250 | 3T
|
| KL-C2 | 2200*1800mm | 2590×2250×1250 | 4T
|
| KL-C3 | 2200*2200mm | 2650×2590×1250 | 5T
|
| KL-C4 | 2400*2200mm | 2720×2830×1350 | 6T
|
Solar Panel Laminators Technical Parameters
Cooling water flow needed | 2L/min
|
Laminating height |
25mm |
Total power of equipment |
33KW |
Operation Controlling mode |
Manual/automatic |
Heating mode |
Oil heating |
Temperature control |
Intelligent temperature |
Temperature uniformity in working area |
≤ ±1.5°C |
Temperature control accuracy |
≤ ± 1°C |
Temperature control range |
30 °C~180 °C |
Pumping speed |
30 / Seconds |
Laminating time |
14 min (Including Curing time) |
Operating vacuum degree |
20-200Pa |
Exhuasting time |
4-6 min |
Solar laminator Selling points
- Intelligent temperature control system makes the temperature more homogeneous and easier set and control.
- laminating pressure is adjustable and can be adjusted according to the process, which makes the quality of modules better.
- It Could work continuously in high temperature for 24 hours

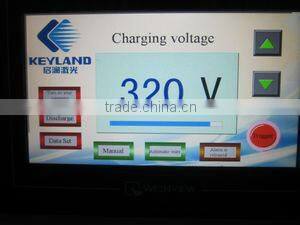

- The advanced touch screen operating platform makes it more intuitive to operate, makes it respond more quickly, make the performance more stable and the failure rate is further reduced.
- Appling a fully humanized operating procedure.the equipment is equipped with many detection switches,in the normal production, operators will only be required to put the modules on the heating platform and press the cover switch, the equipment will automatically laminate, cure and open cover automatically and wait for operator to start the next procedure.
Other related solar Assembly Equipments:

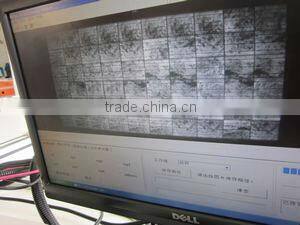

| EL Tester Effective test range:1200*2100mm Resolution:1.4 Megapixels Test Time: 1s~60s can be set Test Methods: un contact free style Power:220V/10A/1PH Camero: imported |
| Solar panel tester Light intensity:100mW/cm2 Light intensity non-uniformity:≤±2% Light intensity instability degree of irradiation:≤±2% Test results consistency:≤±0.5% Test error of electrical properties:≤1% Single flash time:10ms Effective test range :2000×1200mm/5W-300W Measuring voltage:10V-100V(resolution 1mV) Measuring current:0-20A(resolution 1mA) Test parameters:Isc,Voc,Pmax,Vm,Im FF,EFF,Temp,Rs,Rsh" |
| | Solar panel Lamination area:2200*2200/2200*1100mm Laminated Cavity Height:25mm Control Mode:The auto/hand-switch Quick heating,good temperature uniformity Germany Simens PLC,high temperature control precision; Taiwan touch screen control Control relay :OMRON |
| | Solar Frame Machines Framing size: Min:350×500*35MM Max:1150×2100*500MM without bump horny Air cylinder, linear rail, steel structur |

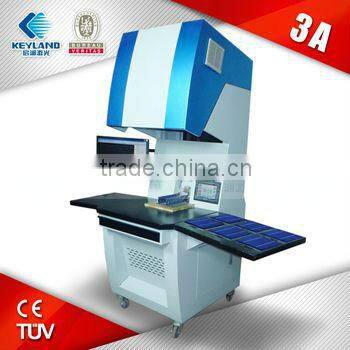

| Solar cell tester Light intensity:100mW/cm2 Light intensity non-uniformity:≤±2% Light intensity instability degree of irradiation:≤±2% Test results consistency:≤±0.5% Test error of electrical properties:≤1% Single flash time:10ms Effective test range :200×200mm/0.1W-5W Measuring voltage:0V-0.8V(resolution 1mV) Measuring current:0-20A(resolution 1mA) Test parameters:Isc,Voc,Pmax,Vm,Im FF,EFF,Temp,Rs,Rsh
|
| | |
| Solar Panle Defect Testing Machine | EL Testing Machinery | Semi-Automatic EL Testing Machines |
| | |
| Solar Sun Simulator Working Condition | PLC Control System | Indian Solar Panel Testing Machines |
| | |
| Solar Cell Sun Simulator | Solar Equipment Solar Exhibition | Solar Cell Cutting Machines |
♥♥♥ Contact Simmer

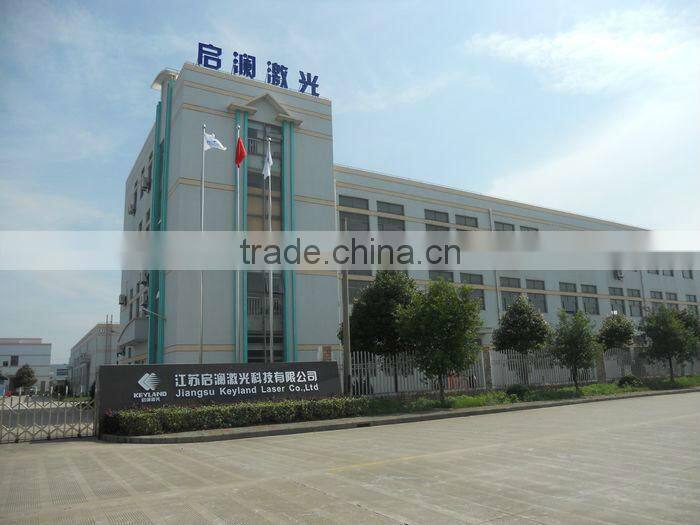

Jiangsu Keyland Laser Tecnology
