Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Cell > Triangle Solar Modules 280W GH Energy

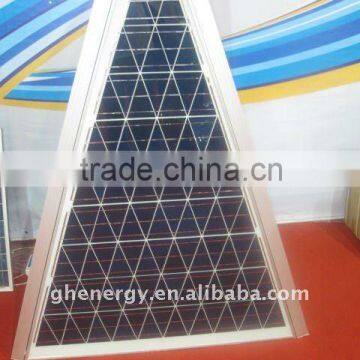

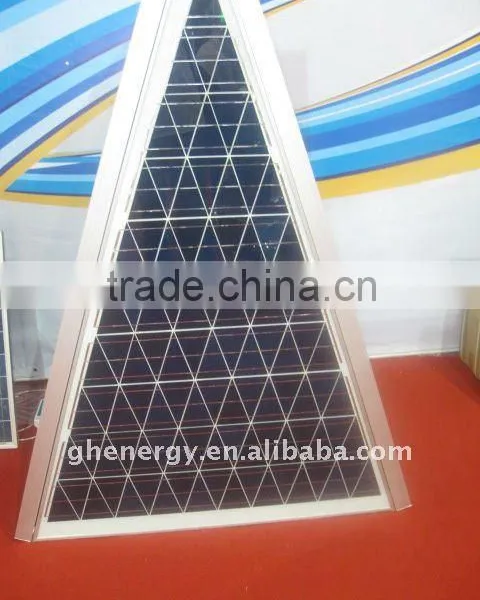

Triangle Solar Modules 280W GH Energy

Triangle Solar Modules 280W GH Energy thumbnail-1
Triangle Solar Modules 280W GH Energy photo-1
US$ 0.49 - 0.62 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GH Solar Energy
Model Number:
GH-0111
Contact Supplier Request Quote Chat Now
Zhejiang Ganghang Solar Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or ShangHai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GH Solar Energy
Model Number GH-0111
Material Monocrystalline Silicon
Size 1430*990*35
Number of Cells 54
Max. Power 180W
Product Description

Triangle Solar modules 280W GH energy

Triangle Solar modules 280W GH energy

Solar panel

Our Solar Panels are A GRADE and are EURO, TUV, CE, IEC & NZ Certified.

photovoltaic solar panel

They are made of Crystalline Photovoltaic cells and Aluminum framed.High efficiency and A GRADE quality

Full EURO, TUV, CE, IEC & NZ certification



The structure of solar panel



solar panel ---- Cells

The high-efficiency of mono and poly solar cells ensure adequate power for solar panels.

solar panel ---- Glass

Low iron tempered glass, 3.2mm thickness with high reflectivity.

solar panel ---- EVA

Higher transmission rate, antioxidant capacity and temperature resistance, no expansion or contraction.

solar panel ---- Back film

Increase efficiency of solar modules sightly and reduce solar panel’s temperature. Aging resistance, corrosion resistance and airtight.

solar panel ---- Frame

Using the framework of the anodized aluminum frame with high intensity, mechanical shock resistance capability.





Solar modules

180W Monocrystalline Solar Module with 96pcs of mono solar cell,Pmax2W,Vmp36-43.2(V),Imp2.55A ,TUV CE



Model GH-0111
Pmax 280W
power tolerance: ±3%
Vmp 36V
Imp 2.55A
Voc 43.2V
Isc 3.06A
Pcs 72(8*9)
Cell Type 125*125 monocrystalline solar cell
Size 1250X950 x 30
Net weight 11.5kg
STC 1000W/m2,AM 1.5,25oC
Warranty 5 year warranty for products,10 years for 90% power ,25 years for 80% power
Accessory 3.2mm thick tempered glass,aluminium frame
Others There are drainage holes on the Border components, eliminating the framework of deformation caused by rain or snow accumulated in the framework



Our products have got the certificates of IEC, TUV, UL, CE, PV CYCLE membership and etc.

Triangle Solar modules 280W GH energy

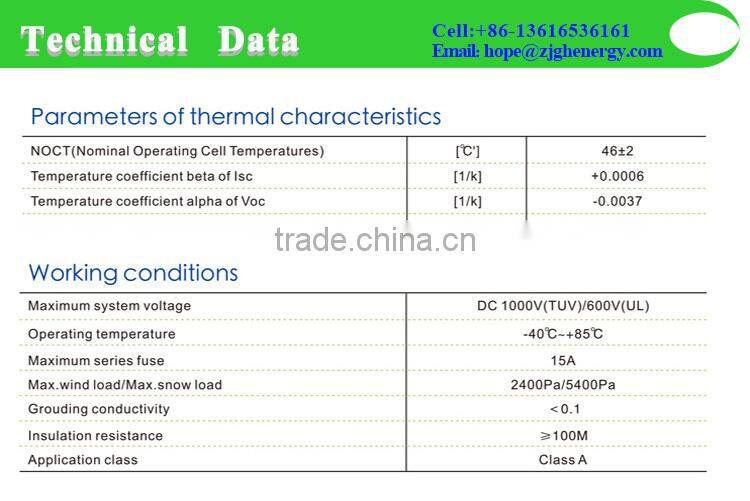

Technology Data

Triangle Solar modules 280W GH energy

Model Power Best Working Voltage(V)

Best Operating

Current(A)

 Open-circuit Voltage(V) Short-circuit Current(A) Number of Cell(Pcs) Dimension(mm)
Mono Solar Panels 3W 3.00  9.00  0.33  10.44  0.36  18  185*185*17
Mono Solar Panels 5W 5.00  9.01  0.55  10.45  0.59  18  250*185*17
Mono Solar Panels 10W 10.00  17.92  0.56  20.79  0.60  36  255*350*17
Mono Solar Panels 15W 15.00  18.00  0.83  20.88  0.89  36  360*350*17
Mono Solar Panels 20W 20.00  18.01  1.11  21.42  1.31  36  360*450*25
Mono Solar Panels 25W 25.00  18.00  1.39  21.80  1.63  36  360*490*25
Mono Solar Panels 30W 30.00  17.95  1.67  21.72  1.97  36  545*514*25
Mono Solar Panels 40W 40.00  17.95  2.23  21.65  2.62  36  420*670*30
Mono Solar Panels 50W 50.00  18.00  2.78  21.72  3.27  36  540*670*30
Mono Solar Panels 60W 60.00  18.10  3.31  21.68  3.90  36  630*670*30
Mono Solar Panels 70W 70.00  18.00  3.89  21.24  4.20  36  780*670*30
Mono Solar Panels 80W 80.00  18.00  4.44  21.24  5.23  36  780*670*30
Mono Solar Panels 90W 90.00  18.15  4.96  21.42  5.83  36  906*670*30
Mono Solar Panels 90W 90.00  18.15  4.96  21.42  5.83  36  1200*540*30
Mono Solar Panels 100W 100.00  18.25  5.48  21.54  6.45  36  1200*540*30
Mono Solar Panels 100W 100.00  18.25  5.48  21.54  6.45  36  1020*670*30
Mono Solar Panels 110W 110.00  18.00  6.11  21.24  7.19  36  1120*670*30
Mono Solar Panels 130W 130.00  17.20  7.56  21.24  8.50  36  1240*670*30
Mono Solar Panels 140W 140.00  18.00  7.80  22.30  8.67  36  1480*670*35
Mono Solar Panels 150W 150.00  18.00  8.35  22.20  8.85  36  1480*670*35
Mono Solar Panels160W 160.00  18.20  8.79  22.60  9.23  36  1480*670*35



Certifications

Triangle Solar modules 280W GH energy

Packaging & Shipping

Triangle Solar modules 280W GH energy

u Normally packing: 1pc/2pcs/3pcs/10pcs/20pcs per carton

u Individual packing requirement is acceptable

Company Information

Triangle Solar modules 280W GH energy

FAQ

Triangle Solar modules 280W GH energy

Our Services

Triangle Solar modules 280W GH energy
