Description

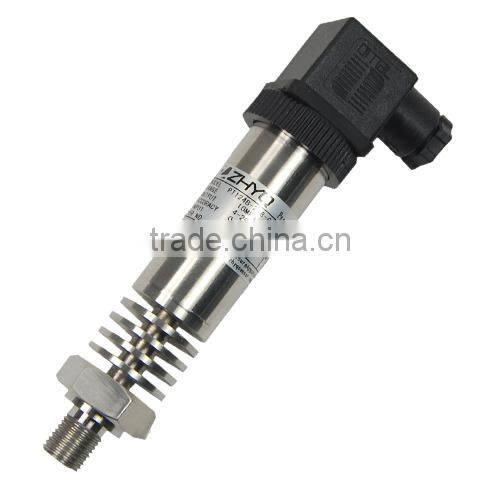

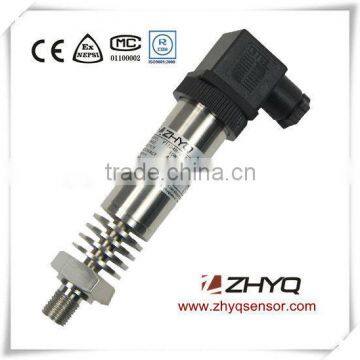

PT124G-218 is with cooling tube pressure sensor for industrial area , It adopts imported thermo stability sensing element, makes this transmitter work stability under 150 °C. It welds with cool lasing technology, there are cooling ribs between the pressure sensor chips and amplifier electrical circuit, which avoids the heat conductionefficiently. PT124G-218 is mV/V output , if welding a amplification circuit will be change to PT124B-218 , the Analog signal output can connect with PLC directly .
Feature
Various industrial standard signal output
Various electrical connector available
Certain stock for shortening delivery time
High accuracy, free of calibration
compact dimension design
Application
measuring and controlling the moderate and high temperature fluid pressure in various industrial fields:
Paper & Pulp, Paint
Polyurethane device
Hydraulic Press
Specification
Name |
with cooling tube pressure sensor for industrial area |
Model |
PT124G-218 |
Pressure range |
-1~0~1000bar |
Over load |
150%FS |
Burst pressure |
300%FS |
Output |
1.5mV/V , 2mV/V |
Power supply |
10 VDC |
Response time |
<5ms |
Combine error |
0.25%FS; 0.5% FSO (Including Linearity, Repeatability & Hysteresis) |
Repeatability |
≤ +/- 0.2%FSO |
Long term stability |
≤ +/-0.2%FS/year |
Pressure connection |
M20×1.5, G1/2,G1/4, 1/2NPT ( customer tailor ) |
Operating temperature |
-20 °C ~ 150 °C |
Temperature compensation |
0°C ~ 75°C |
Electrical connector |
Bendix connector,Hirschman DIN4365 and Gland lead |

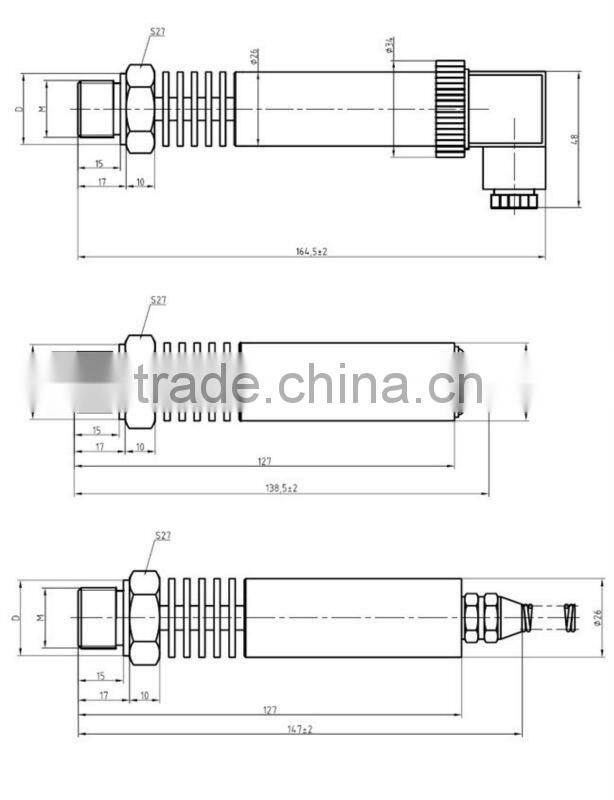

Dimension
Order Guide : with "* "are required , with "---"is optional
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
