Corrugated diaphragm Pressure transducer for viscous fluid
- 500 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
-
New 913A0124H01 York FRICK low-pressure pressure sensor, pressure range 0-200psi
-
New 913A0124H02 York FRICK high-pressure pressure sensor, pressure range 0-500psi
-
HBM S Type S9M Force Load Cell
-
HBM CFT+ Force Sensor
-
HBM C15 Force Transducer With 4MV/V Signal Output
-
HBM CFT Series Piezoelectric Force Transducer
Product Details
| Place of Origin: | Shanghai, China | Brand Name: | ZHYQ | Model Number: | PT124G-214 |
Product Description
Description

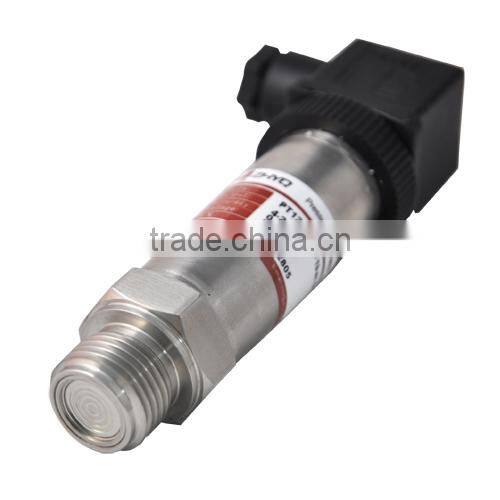

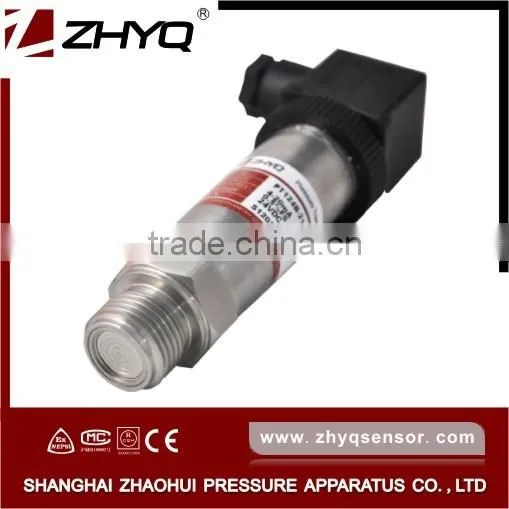

PT124G-214 is Corrugated diaphragm Pressure transducer for viscous fluid , it is with corrugated flush diaphragm is particularly suitable for the measurement of viscous fluids or media containing particulates that may clog the pressure connection of standard industrial transmitters. All wetted parts are made of stainless steel and are hermetically welded. PT124G-214 welding a amplification circuit will be change to PT124B-214 , the Analog signal output can connect with PLC directly .
Feature
It's desiged with corrugated diaphragm
This type can avoid clog the pressure connection
All wetted parts are made of stainless steel and are hermetically welded
his series is particularly suitable for the measurement of viscous fluids or particulates
suitable vaccum or samll pressure range
Application
Hydraulic Press
Polyurethane device
Medical pharmacy
Paper & Pulp, Paint
Food & Beverage Processing
Specification
| Name | Corrugated diaphragm Pressure transducer for viscous fluid |
Model | PT124G-214 |
Range: | -1bar~ 0bar ~16bar |
Accuracy: | 0.5%FS; 1%FS |
Nonlinearity: | 0.2%FS -1bar~ 0bar ~16bar |
Reliability: | 0.2%FS |
Output: | 1.5mV/V , 2mV/V |
Input voltage: | 10VDC |
Operate Temperature: | -20~80°C |
Compensated temperature: | 0~75°C |
Overload pressure: | 150%FS |
Medium material: | stainless steel (SS304 or SS316) |

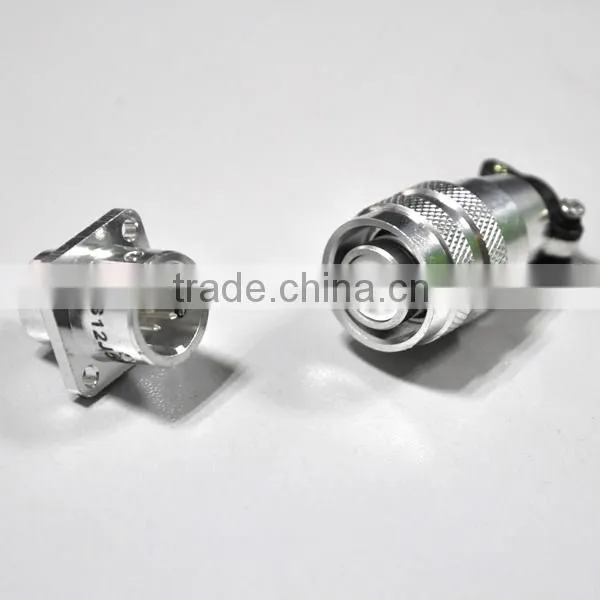

Electric connector: | Hirschman(DIN), M12(4pins) , 5pins , gland cable, direct cable optional |
Process connector: | G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5(Customer design) |
Housing Shell Diameter: | 26mm , 38mm optional |

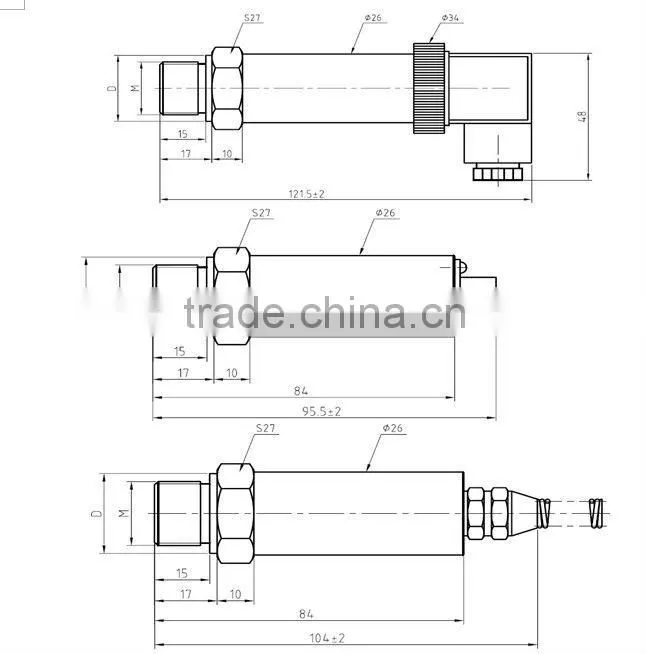

Dimension
Remarks:
The standard accuracy is 0.5%, and size diameter is 26mm ,if you need special ( 26mm, ,38mm),when order ,please mention it , and we will send you the drawing to confirm .
Ordering Guide with * are required, with --- is optional
Model | Range (bar) | Output | Screw Thread | Electric connection | Accuracy | Diameter (mm) | Other requirement |
PT124B-214 | * | * | * | * | * | * | --- |
Example: PT124B-214-(-1-6)Bar-4/20mA-G1/2-Hirschmann-0.5%-26 | |||||||
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.

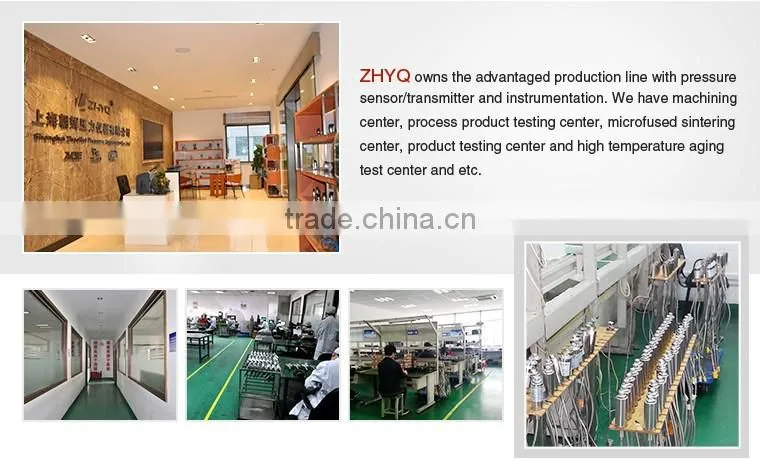

ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
