MV/V Output Diffused Silicon High Accuracy Pressure Transmitter for Precision Machinery

MV/V Output Diffused Silicon High Accuracy Pressure Transmitter for Precision Machinery thumbnail-1
MV/V Output Diffused Silicon High Accuracy Pressure Transmitter for Precision Machinery thumbnail-2
MV/V Output Diffused Silicon High Accuracy Pressure Transmitter for Precision Machinery thumbnail-3
MV/V Output Diffused Silicon High Accuracy Pressure Transmitter for Precision Machinery thumbnail-4
MV/V Output Diffused Silicon High Accuracy Pressure Transmitter for Precision Machinery thumbnail-5
MV/V Output Diffused Silicon High Accuracy Pressure Transmitter for Precision Machinery thumbnail-6
MV/V Output Diffused Silicon High Accuracy Pressure Transmitter for Precision Machinery photo-1

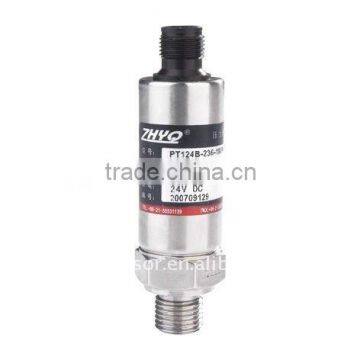

MV/V Output Diffused Silicon High Accuracy Pressure Transmitter for Precision Machinery photo-2
MV/V Output Diffused Silicon High Accuracy Pressure Transmitter for Precision Machinery photo-3
MV/V Output Diffused Silicon High Accuracy Pressure Transmitter for Precision Machinery photo-4
MV/V Output Diffused Silicon High Accuracy Pressure Transmitter for Precision Machinery photo-5
MV/V Output Diffused Silicon High Accuracy Pressure Transmitter for Precision Machinery photo-6
US$ 35 - 80 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
ZHYQ
Model Number:
PT124G-212
Contact Supplier Request Quote Chat Now
Shanghai Zhaohui Pressure Apparatus Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name ZHYQ
Model Number PT124G-212
Product Description

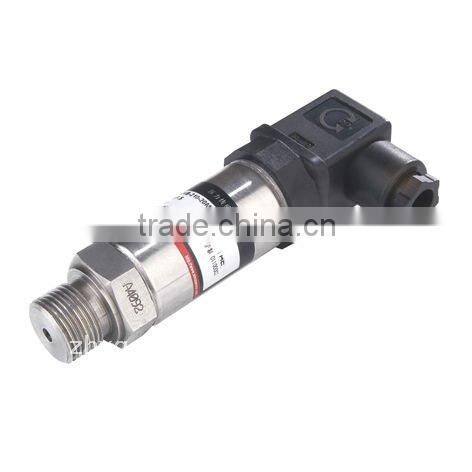

mV/V output diffused silicon high accuracy pressure transmitter for precision machinery

Description

PT124G-212 series is mV/V output diffused silicon high accuracy pressure transmitter for precision machinery , adopt diffused silicon core sensor chip ,it can ensure the sensor high precision, high steadily . this pressure transducer has been specially designed to cover the majority of industrial applications where need high accuracy measuring Compact design and robust construction make these instruments suitable for all application in machine construction, process control, laboratory or quality and materials testing equipment. the pressure transducer of PT124G-212 welding a amplification circuit will be change to PT124B-212 , the Analog signal output can connect with PLC directly .



Feature

Various industrial standard signal output

Various electrical connector available

Certain stock for shortening delivery time

High accuracy, free of calibration

Various dimension design



Application

Pumps and Compressors

Hydraulic/Pneumatic Systems

Automotive Test Systems

Energy and Water Management

Agriculture – Sprayers and Dusters

Refrigeration – Freon and Ammonia Based

General Pressure Measurements

suitble low range , high accuracy



Specification

Name

mV/V output diffused silicon high accuracy pressure transmitter for precision machinery

Model

PT124G-212

Range:

-1~0-5bar

Accuracy:

0.5%FS; 0.25%FS

Nonlinearity:

0.2%FS

Reliability:

0.2%FS

Output:

1.5mV/V ; 2mV/V

Input voltage:

10VDC

Operate Temperature:

-20~80°C

Compensated temperature:

0~75°C

Overload pressure:

150%FS

Medium material:

stainless steel (SS304 or SS316)

Electric connector:

Hirschman(DIN), M12(4pins) , 5pins , gland cable, direct cable optional

Process connector:

G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5(Customer design)

Housing Shell Diameter:

22mm,23mm , 26mm ,38mm optional




mV/V output diffused silicon high accuracy pressure transmitter for precision machinery

Dimension

mV/V output diffused silicon high accuracy pressure transmitter for precision machinery





Remark:

The standard pressure transducer accuracy is 0.5%, and size diameter is 26mm ,if you need special ( 22mm,  23mm ,  26mm, 38mm),when order ,please mention it , and we will send you the drawing to confirm .



Ordering Guide   with * are required, with --- is optional

Model

Range

(bar)

Output

Screw Thread

Electric connection

Accuracy

Diameter

(mm)

Other requirement

PT124G-212

*

*

*

*

*

*

---

Example: PT124G-212-2Bar-2mV/V-G1/2-Hirschmann-0.5%-26



Factory Show

mV/V output diffused silicon high accuracy pressure transmitter for precision machinery

Product Application

mV/V output diffused silicon high accuracy pressure transmitter for precision machinery

Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.

Quality Control

ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.

mV/V output diffused silicon high accuracy pressure transmitter for precision machinery



mV/V output diffused silicon high accuracy pressure transmitter for precision machinery

Customer Photo

mV/V output diffused silicon high accuracy pressure transmitter for precision machinery

Packaging & Shipping

mV/V output diffused silicon high accuracy pressure transmitter for precision machinery

Our Services

mV/V output diffused silicon high accuracy pressure transmitter for precision machinery

FAQ

mV/V output diffused silicon high accuracy pressure transmitter for precision machinery
