Description

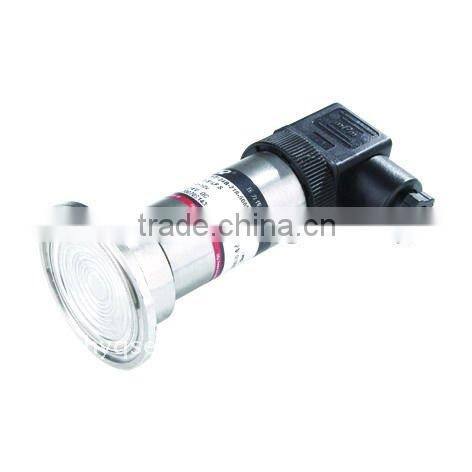

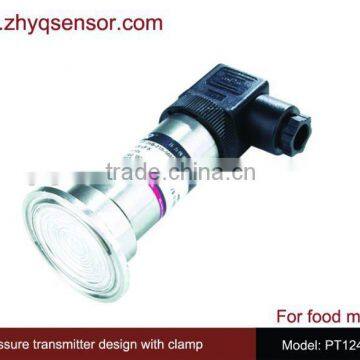

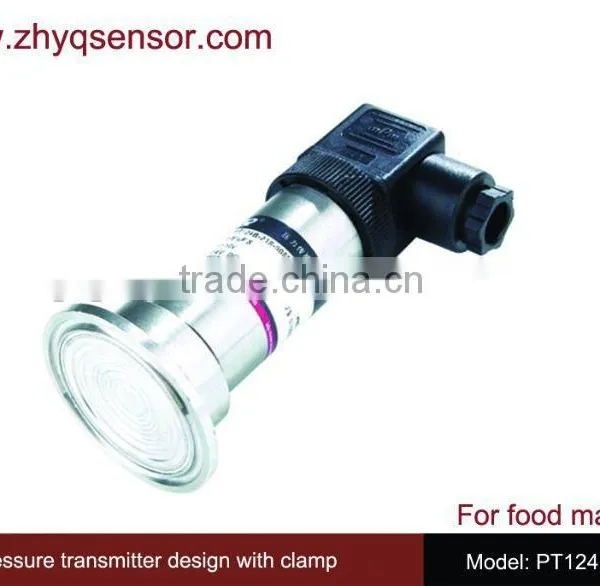

PT127G-217 is 1.5"TC flush diaphragm pressure sensor for food machinery , this clamp mounting pressure transmitter mostly for food machinery , this pressure transmitter adopting the special sensor chip with exact accuracy and high stability and exact compensated technology , this clamp mounting pressure transmitter is suitable for pressure measuring and controlling in the clean asepsis conditions and the conditions which are easy to block. PT124G-217 welding a amplification circuit will be change to PT124B-217 , the Analog signal output can connect with PLC directly .
Feature
clamp mounting pressure transmitter for food machinery
It adopts firm material with special treatment, design with compact construct,
corrosive-resistant, shock-resistant,
siutable for the low pressure measurement occasion,
suitable for the measurement of viscous fluids or port is easily blocked medium .
international standard quality , can replace other brand absolutely .
Application
Paper & Pulp, Paint
Polyurethane device
Hydraulic Press
Medical pharmacy
Food & Beverage Processing
Specification
Name |
1.5"TC flush diaphragm pressure sensor for food machinery |
Model |
PT124B-217 |
Pressure range |
-1~0~60 bar |
Over load |
150%FS |
Burst pressure |
300%FS |
Output |
1.5mV/V ; 2mV/V |
Power supply |
10 VDC |
Response time |
<5ms |
Combine error |
0.25%FS; 0.5% FSO (Including Linearity, Repeatability & Hysteresis) |
Repeatability |
≤ +/- 0.2%FSO |
Long term stability |
≤ +/-0.2%FS/year |
Pressure connection |
1.0 ″ , 1.5 ″ , or others |
Operating temperature |
-20 °C ~ 80 °C |
Temperature compensation |
0°C ~ 75°C |

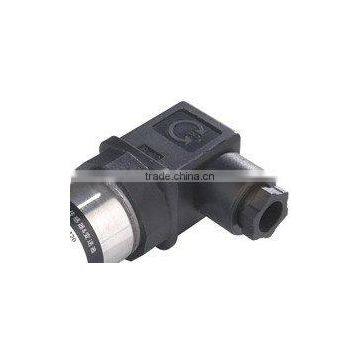

Electrical connector |
Bendix connector,Hirschman DIN4365 and Gland lead |

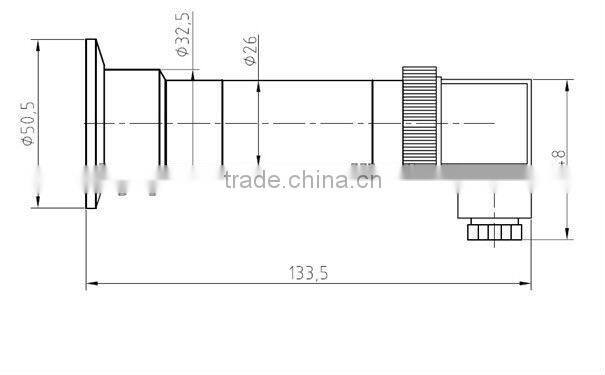

Dimension
Order Guide : with "* "are required , with "---"is optional
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
