Help CenterCeramic Type Pressure Sensor for Hydraulic Application
Related Products
-
MV/V Output Diffused Silicon High Accuracy Pressure Transmitter for Precision MachineryUS$ 35 - 80MOQ: 1 Piece -
0.5-4.5v Output SS304 Material Pressure Transmitter for Air ConditionUS$ 10 - 50MOQ: 1 Piece
-
SS304 7/16-20UNF Female Thread Air Condition Pressure TransmitterUS$ 10 - 50MOQ: 1 Piece
-
Small Valume Pressure Transmitter for Air ApplicationUS$ 25 - 40MOQ: 1 Piece
-
Differential Gauge/absolute Pressure TransmitterUS$ 300 - 495MOQ: 1 Piece
Description

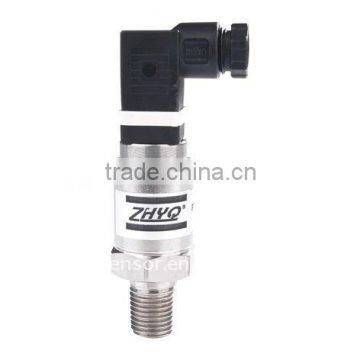

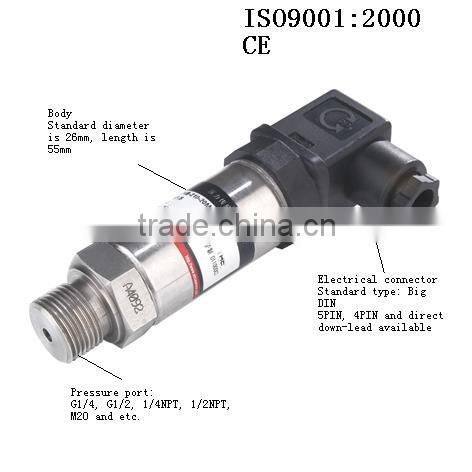

PT124B-213 is ceramic type Pressure sensor for hydraulic application , it adopts ceramic sensor chip, with stainless steel encapsulation, smart figure. This series pressure sensor is especially suitable in the occasion where Installation space is restricted and has the feature of wide range temperature compensation, high accuracy, non-calibration, wide range, and OEM Process. This model pressure sensor has wide application in hydraulic pressure, auto-controlling house, constant pressure water supply, loading machine, and liquid pressure measuring and controlling in automatization fields. PT124G-213 welding a amplification circuit will be change to PT124B-213 , the Analog signal output can connect with PLC directly .
Feature
Various industrial standard signal output
Various electrical connector available
Certain stock for shortening delivery time
High accuracy, free of calibration
different dimension design
compact constructure for narrow space application
Application
Petrochemical industry
Health and Medical
Food & Beverage Processing
Hydraulic pressure
Auto-controlling house
Constant pressure water supply
Liquid pressure measuring and controlling in automatization fields.
Specification
Name |
ceramic type Pressure sensor for hydraulic application |
Model |
PT124G-213 |
Range: |
0-5bar~50bar |
Accuracy: |
0.5%FS; 1%FS |
Nonlinearity: |
0.2%FS |
Reliability: |
0.2%FS |
Output: |
1.5mV/V , 2mV/V |
Input voltage: |
10 VDC |
Operate Temperature: |
-20~80°C |
Compensated temperature: |
0~75°C |
Overload pressure: |
150%FS |
Medium material: |
stainless steel (SS304 or SS316) |
Electric connector: |
Hirschman(DIN), M12(4pins) , 5pins , gland cable, direct cable optional |
Process connector: |
G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5(Customer design) |
Housing Shell Diameter: |
22mm, 23mm , 26mm , 38mm optional |
Dimension
Remarks:
The standard pressure sensor accuracy is 0.5%, and size diameter is 26mm ,if you need special diameter pressure sensor ( 22mm, 23mm ,26mm, ,38mm),when order ,please mention it , and we will send you the drawing to confirm .
Ordering Guide with * are required, with --- is optional
Model |
Range (bar) |
Output |
Screw Thread |
Electric connection |
Accuracy |
Diameter (mm) |
Other requirement |
PT124G-213 |
* |
* |
* |
* |
* |
* |
--- |
Example: PT124G-213-20Bar-2mV/V-G1/2-Hirschman-0.5%-26 | |||||||
It can match the N series pressure instrument from ZHYQ, also can match the pressure instrument or controller of other brand. And is widely used in the domestic
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
