Description

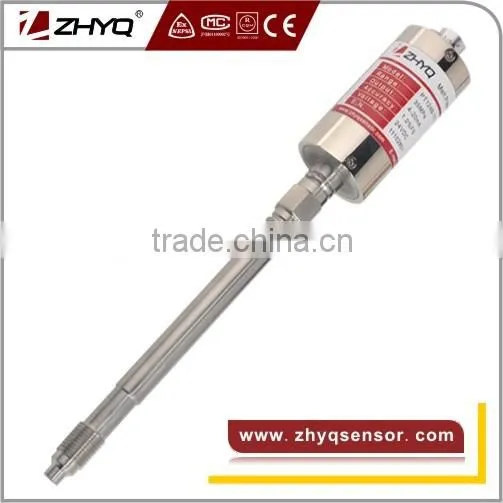

PT124B-111 is Rigid 0-10V output melt pressure sensor to replace PT460E . this series is an economic type product designed with rigid stem construction, This series can be used together with the N Series Intelligent Digital Pressure Instrument of ZHYQ or other brand instrumentation. Zero & full span can be adjustable, PT124G-111 welding with amplify circuit can be change to PT124B-111 , the signal be connected with PLC directly . With the advantage of high precision and reliable pressure measuring and good quality, internal 80% calibration and etc. if you need high accuracy ,6 pins collector which can replace Gefran / Dynisco etc.other brand absolutely .
Feature
High-standard quality
Stainless steel Seal
Simple Installation
80% inner calibration
Excellent stability and repeatability
can replace Dynisco or Gefran products absolutely
Application
various plastic extrusion lines
chemical fiber manufacturing equipment
plastic rubber machine
polyester equipment
petrochemical equipment
Specification
Name |
Rigid 0-10V output melt pressure sensor to replace PT460E |
Model |
PT124B-111 |
Pressure range |
0-3.5MPa…0-150MPa (0-500psi…20000psi) |
Over Pressure |
1.5 X FSO |
Combined Error |
1.0% FSO (Including Linearity, Repeatability & Hysteresis) |
Output |
4-20mA ,0-5V ,0-10V |
Input Voltage |
24VDC |
Repeatability |
+/- 0.2%FSO |
Bridge Resistance Input |
345 Ohms minimum |
Bridge Resistance Output |
350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) |
80% FSO +/- 1% |
Insulation Resistance |
200 megohms @ 100 Vdc |
Max Diaphragm Temperature |
400 °C |
Mounting Torque |
500 inch/lbs. max. |
Standard Wetted Parts |
Diaphragm coated 15-5 PH SST |

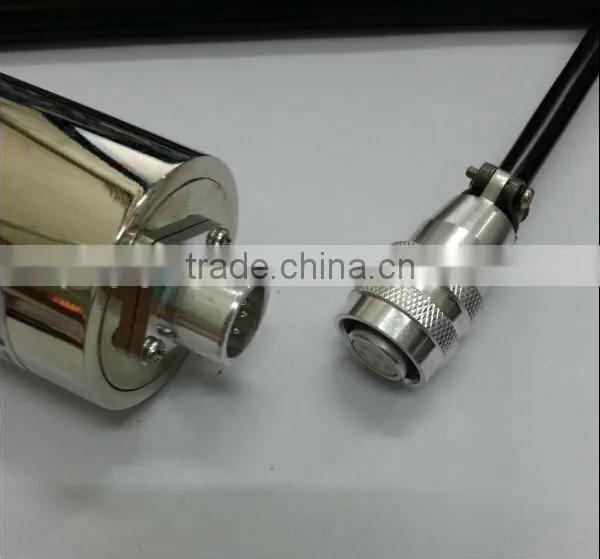

Electrical connector |
5pins |
Process connector |
M14×1.5, 1/2-20UNF, M18×1.5 Optional |
Dimension
Order Guide : with "* "are required , with "---"is optional
Model |
Range |
output |
Rigid & flexible length (inch) |
Screw Thread |
Electric connector |
Accuracy |
others |
PT124B-111 |
* |
* |
* |
* |
* |
* |
|
Example:PT124B-111-500Bar-4-20mA -6”-1/2-20UNF-5PIN-0.5% |
|||||||
This model is Rigid 0-10V output melt pressure sensor to replace PT460E , can matching with our N series digital pressure indicator to local display the pressure and temperature
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
