Home > Products > all products sherry > female thread air condition pressure transmitter

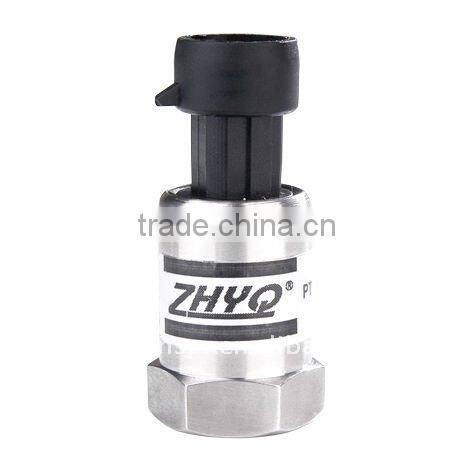

female thread air condition pressure transmitter

Name: female thread air condition pressure transmitter
Brand: ZHYQ
Availability: InStock

FOB Price

USD $10 - $50 / Piece

1 Piece(Min.Order)

Supply Ability 8000 Piece / Pieces per Month
Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	ZHYQ
Model Number	PT124B-231

Product Description

Description

PT124B-231 is female thread air condition pressure transmitter . this series is air condition HAVC pressure transmitter , this pressure transmitter has adopts diffused silicon or ceramic piezoresistive sensor chip, with compact configuration, easy to install, and special valve needle design for lead pressure port, perfect electrical performance and long-term stability make it the idea choice for the air-condition and compressor pressure measuring and controlling.

Feature

Superior long term stability

A wide range of temperature compensation

Low power consumption

Excellent repeatability/hysteresis

Special design for customer

Many OEM options

Application

Laboratory test apparatus

Agricultural chemical equipment

Refrigeration and HVAC systems

Hydraulic pressure system

Gas tank pressure monitoring

Coolant pressure measuring

Specification

Name	female thread air condition pressure transmitter
Model	PT124B-231
Range	0….1bar to 0….100bar `
Accuracy	0.5%FS ; 1%FS; 1.5%FS
Linearity	0.02%FS
Reliability	0.05%FS
Output	4-20mA, 0-5V, 0.5-4.5V,1-5V
Input Voltage	24(12-36V)DC;5VDC
Operating Temperature	-20°C~120°C
Temperature Compensation	-10~65°C(Standard Compensation)
Over Pressure	150%FS
Case material	304SS,316SS,Brass optional

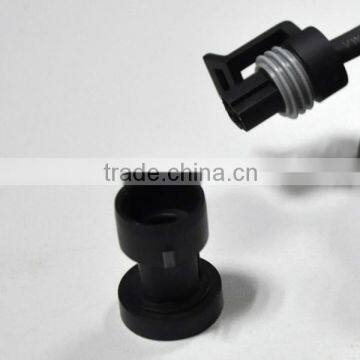

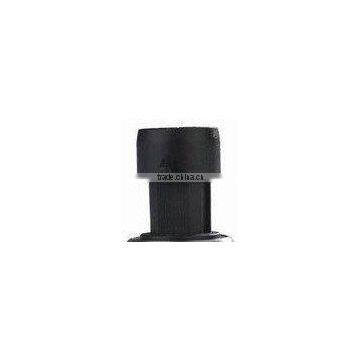

Electric connection	Packed connector
Process connection	1/4NPT,1/8-27NPT,7/16-20UNF (Optional)


Dimension

Wiring code

Signal Output	4-20mA (2 Wires)		0-5V, 0.5-4.5V,1-5V (3 wires)
Wiring Code	1	Input (Red)	1	Input (Red)
	2	Output (Black)	2	common point (Black)
	3	None	3	Output (Blue)
	Remarks: Above wiring connector is the standard type, if you need the special wiring, please contact with the company at first.

Order guide with * are required, with --- is optional

Model

Range

Output

Process

Connection

Electric

Connection

Other Requirement

PT124B-231

---

Example: PT124B-231-10bar-0.5-4.5V-7/16F-20UNF

Packaging & Shipping

Company Information

Our company

Shanghai Zhaohui Pressure Apparatus Co., Ltd (ZHYQ) is the leading manufacturer which specializes in the design and construction of various transducer, transmitter and automation control products in China.

Founded in 1999, ZHYQ has actively brought in advanced production equipment and manufacturing process at home and abroad, developed and produced the transducers more than 80 series and 500 models successfully, which include industrial pressure transducer/transmitter, project equipment pressure transmitter, melt pressure transducer/ transmitter, melt pressure gauge, level transmitter, temperature transducer, tension transducer/ transmitter, burst Plug, intelligent digital indicator, and all kinds of sensor chips and etc.

ZHYQ insists on the development strategy with High-tech, High Quality, High level service, Creating world name brand, focuses on the challenge and stress attended by the customers, offers the competitive products and service and creates the economic value for the customers persistently.

Our factory

Certifications

FAQ

1. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before ship to our clients.
2. How fast can you delivery goods?
always 7-10 working days since order confirmed , if need goods urgently, we can arrange expedited production.
3. What’s your MOQ?
We have no MOQ limits, 1 piece for test purpose at first is acceptable.
4. How long is your product warranty?

7 days replacement and 12 months repair free of charge for quality problem

5. can you accept OEM brand ?

Yes, we can accept the OEM brand without extra charge .

6. Can you offer free samples?
Yes, we can offer free samples, however you should pay for the samples at first, and then we will return the cost when you release bulk order.
7. How long your quotation valid ?
our quotation valid for 6 months .
8. What trade terms , payment mode and payment terms can you accept?
Trade terms : Ex- Works, FOB, CNF

Payment mode: T/T, Western Union, PayPal, Money Gram
Payment terms: 100% payment before shipment
9. What express ways you can offer, can we use our own courier?
We can send goods to you by DHL, TNT, UPS, SF, EMS for freight prepard , also can use your own courier account to do the freight collect , just for your convenience.
