Description

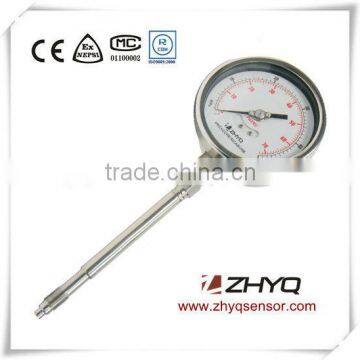

PT124Y-612 is Mechanical rigid stem Melt Pressure Gauge with different output , this series is Mechanical Melt Pressure Gauge with all kinds of output, desinged with rigid stem and local index display; this pressure gauge Adopts the original German packaging machine stamen, isolated diaphragm and all stainless steel structure; also this pressure gauge the rigid stem is movable , the dial plate’s stem-up and stem-down versions, the gauge head can be rotated 360°for unobstructed viewing. and this model pressure gauge has various signal output optional.
Feature
Direct local reading
Stem-up and stem-down version
Customer defined pressure gauge
Install easily, high reliability
Zero adjustment
With signal output
Application
Plastic injection molding
Chemical fibre and filature
Rubber & plastic machinery
Compression moulding machine
The equipment of high temperature steam
High temp fluid pressure measuring and controlling
Spacification
Name |
Mechanical rigid stem Melt Pressure Gauge with different output |
Range |
0-1MPa ~ 0-150MPa(0-10Bar ~ 0-1500Bar) |
Accuracy |
±1.6%FS |
| Output | 4-20mA,0-10V, 3.33mV/V |
Configuration |
Bourdon tube |
Over Pressure |
1.5×FS |
Dial Diameter |
100mm |
Needle sweep: |
270º |
Diaphragm material: |
15-5PH |
Case material: |
Stainless steel with safety glass |
Electrical connector |
5 PIN, DIN |
Max Diaphragm Temp. |
350°C |
Process Connection |
1/2-20UNF, M22×1.5,M14*1.5(Optional) |

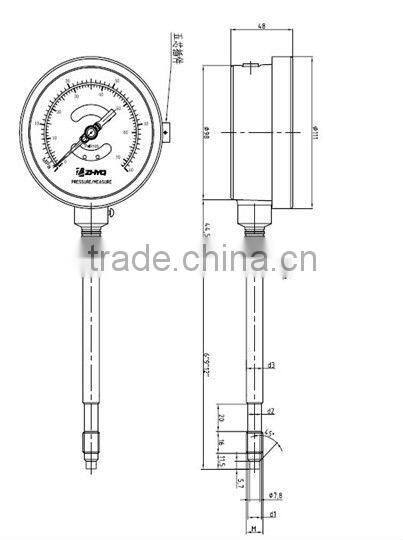

Dimension
Order Guide : with "* "are required , with "---"is optional
Model |
Range (bar) |
Output |
Rigid length (inch) |
Screw Thread |
Electric connection |
Other requirement |
PT124Y-612 |
* |
* |
* |
* |
* |
--- |
Example:PT124Y-612-350Bar-3.33mV/V -6”-1/2-20UNF-5 PIN | ||||||
Our company
Shanghai Zhaohui Pressure Apparatus Co., Ltd (ZHYQ) is the leading manufacturer which specializes in the design and construction of various transducer, transmitter and automation control products in China.
Founded in 1999, ZHYQ has actively brought in advanced production equipment and manufacturing process at home and abroad, developed and produced the transducers more than 80 series and 500 models successfully, which include industrial pressure transducer/transmitter, project equipment pressure transmitter, melt pressure transducer/ transmitter, melt pressure gauge, level transmitter, temperature transducer, tension transducer/ transmitter, burst Plug, intelligent digital indicator, and all kinds of sensor chips and etc.
ZHYQ insists on the development strategy with High-tech, High Quality, High level service, Creating world name brand, focuses on the challenge and stress attended by the customers, offers the competitive products and service and creates the economic value for the customers persistently.
Our factory
1. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before ship to our clients.
2. How fast can you delivery goods?
always 7-10 working days since order confirmed , if need goods urgently, we can arrange expedited production.
3. What’s your MOQ?
We have no MOQ limits, 1 piece for test purpose at first is acceptable.
4. How long is your product warranty?
7 days replacement and 12 months repair free of charge for quality problem
5. can you accept OEM brand ?
Yes, we can accept the OEM brand without extra charge .
6. Can you offer free samples?
Yes, we can offer free samples, however you should pay for the samples at first, and then we will return the cost when you release bulk order.
7. How long your quotation valid ?
our quotation valid for 6 months .
8. What trade terms , payment mode and payment terms can you accept?
Trade terms : Ex- Works, FOB, CNF
Payment mode: T/T, Western Union, PayPal, Money Gram
Payment terms: 100% payment before shipment
9. What express ways you can offer, can we use our own courier?
We can send goods to you by DHL, TNT, UPS, SF, EMS for freight prepard , also can use your own courier account to do the freight collect , just for your convenience.
