Description

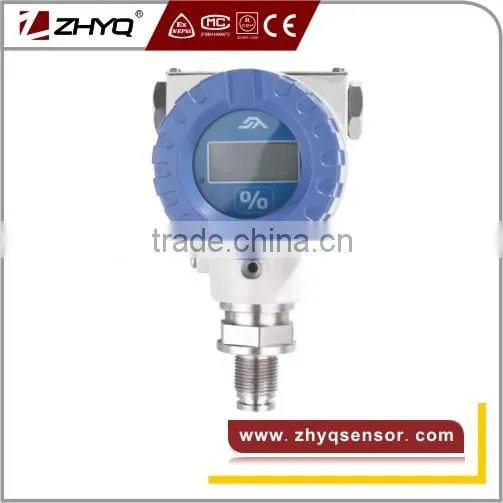

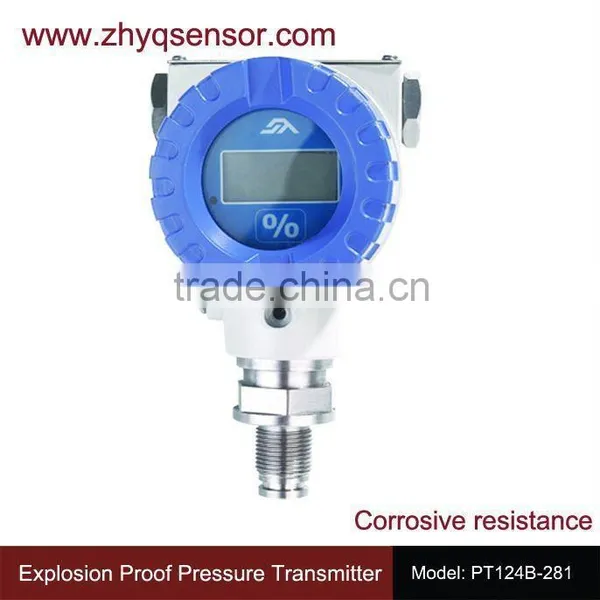

PT124B-281 is 4-20mA LED local display Explosion & Corrosive proof Pressure sensor , this series is SS316 materiak explosion proof pressure transmitter, designed with flameproof structure, this explosion proof pressure transmitter pass EXibIICT4, according with standard of GB3836.1-2000 and GB3836.4-2000. The protection class of the transmitter house is IP65, it is suitable for outdoor installation, this explosion proof pressure transmitter output is 4-20mA with LCD display optional, make it easy to read value directly. and the wetted parts adopts material of 316L, Hastelloy alloy or F4, it can measure the corrosive liquid level.
Feature
Stainless steel sealed construction
Intrinsically safe
Protection class:IP65
SS316 materialCorrosion-resistance, with LCD display
Wide temperature compensation
High accuracy
Application
Suitable for the occasion of chemical fiber
environmental protection, medicine, industrial control and etc.
Measure the pressure or height of the liquid level of corrosive medium, like acid, alkaline
Specification
Name |
4-20mA LED local display Explosion & Corrosive proof Pressure sensor |
Model |
PT124B-281 |
Pressure range |
-1~0~2000bar |
Over load |
150%FS |
Burst pressure |
300%FS |
Output |
4-20mA |
Power supply |
12~36VDC |
Response time |
<5ms |
Combine error |
0.5% FSO(Including Linearity, Repeatability & Hysteresis) |
Pressure connection |
M20×1.5 , G1/2 , G1/4 , 1/2NPT ( customer tailor ) |
Operating temperature |
-20°C ~ 85°C |
Temperature compensation |
0°C ~ 60°C |
Electrical connector |
Terminal Block |
Material |
SS316L |
Explosion proof grade |
ExiallCT4 |

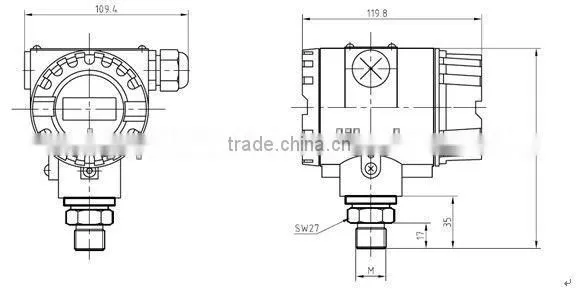

Dimension
Order Guide : with "* "are required , with "---"is optional
