K-1000DDMX SD card controller
support standard dmx512 chip/DMX512APN/WS2821A
drive 1024pixel
with address writer function

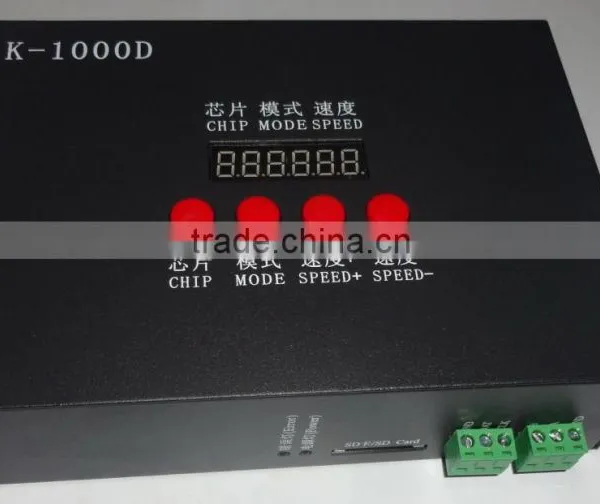

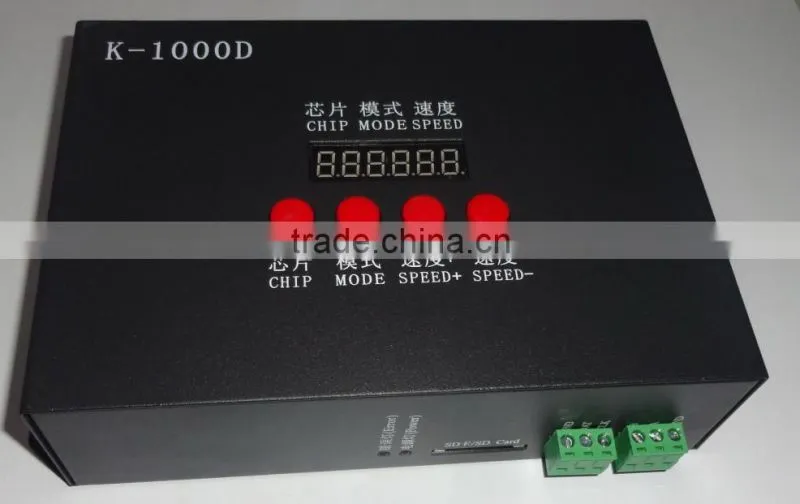

K-1000D;DMX SD card pixel controller;support standard dmx512 chip/DMX512AP-N/WS2821A;drive1024pixel;with address writer function
K-1000D system features:
1,32 level -65 536-level grayscale control, software Gamma correction process.
2,supports a variety of point, line, surface light source, supports a variety of rules, shaped handle.
3,the controller outputs a port, with each port maximum 512 lights.
4,the controller can use multiple cascaded AC synchronous, play content stored in the SD card.
5,K-1000D store up to 30 files.
Support chips:
Standard DMX protocol 250Kbps
Standard DMX protocol 500Kbps
UCS-DMX lights IC
UCS1903 1909 1912 High Speed
DMX512AP-N series IC
WS2821A series IC
Note: A single-IC simply pick and GND
Key meaning:
KEY |
MEANING |
|
Chip SHIP |
Select the model and write code IC chip models |
|
Mode MODE |
Switching file / write code |
|
Speed SPEED + |
Speed |
Press the SPEED + and SPEED-, then enter the file loop playback mode |
Speed SPEED- |
Slow down |
|
Signal output (485):
Power supply |
DC5V power input |
Power lamp POWER |
Power Indicator |
Error lights ERROR |
Error indicator |
SD Card / SD CARD |
SD card slot |
Write code process:

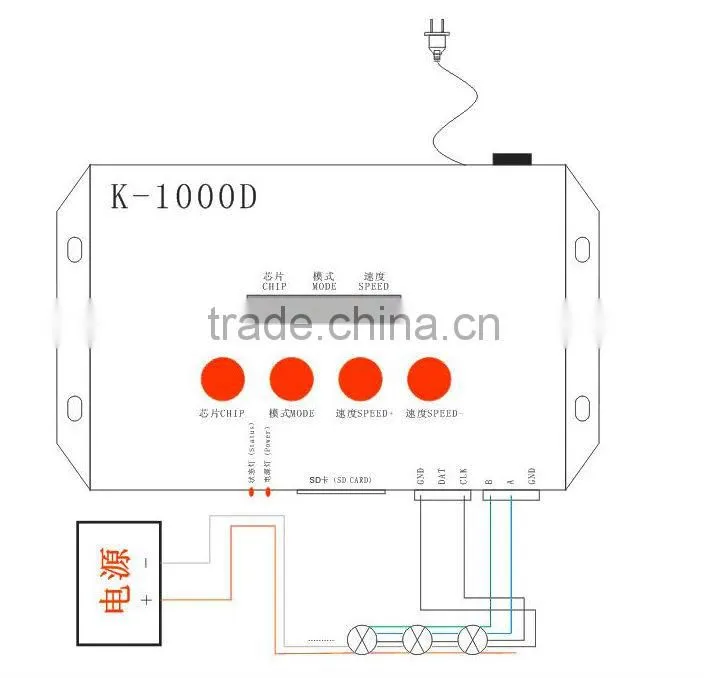

Wiring:
K-1000D;DMX SD card pixel controller;support standard dmx512 chip/DMX512AP-N/WS2821A;drive1024pixel;with address writer function
K-1000D system features:
1,32 level -65 536-level grayscale control, software Gamma correction process.
2,supports a variety of point, line, surface light source, supports a variety of rules, shaped handle.
3,the controller outputs a port, with each port maximum 512 lights.
4,the controller can use multiple cascaded AC synchronous, play content stored in the SD card.
5,K-1000D store up to 30 files.
Support chips:
Standard DMX protocol 250Kbps
Standard DMX protocol 500Kbps
UCS-DMX lights IC
UCS1903 1909 1912 High Speed
DMX512AP-N series IC
WS2821A series IC
Note: A single-IC simply pick and GND
Key meaning:
KEY |
MEANING |
|
Chip SHIP |
Select the model and write code IC chip models |
|
Mode MODE |
Switching file / write code |
|
Speed SPEED + |
Speed |
Press the SPEED + and SPEED-, then enter the file loop playback mode |
Speed SPEED- |
Slow down |
|
Signal output (485):
Power supply |
DC5V power input |
Power lamp POWER |
Power Indicator |
Error lights ERROR |
Error indicator |
SD Card / SD CARD |
SD card slot |
Write code process:

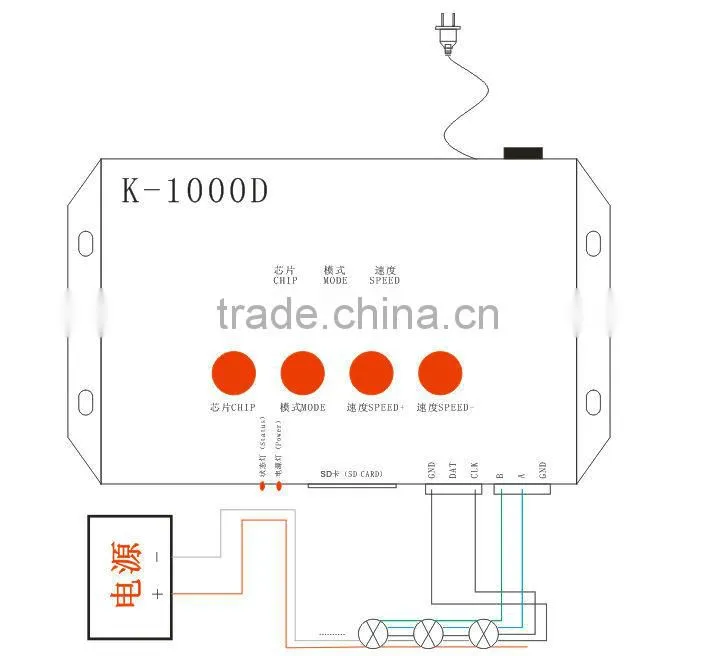

Wiring:
Chip00—03 support for the IC
00-- standard DMX 250KB
01-- standard DMX 500KB
02 - UCS curtain lights
03 - UCS1903-DMX series

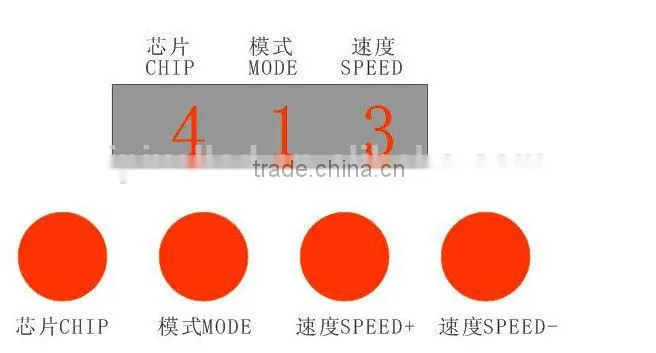

Chip04-06
address writer code IC
04 - UCS512A dmx address setting
05 - WS2821 dmx address setting
06-- DMX512AP-N dmx address setting

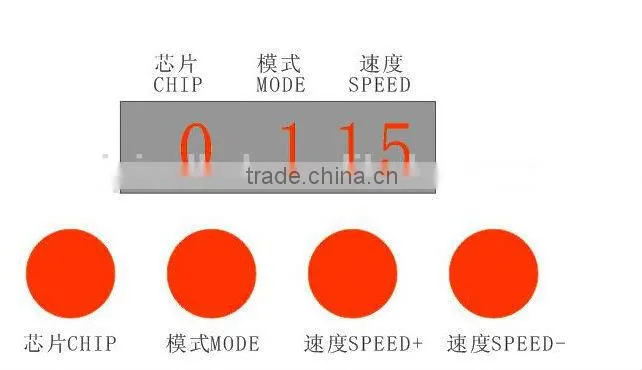

speed”3” means three channels
Note: In the 00-03 mode, press Mode 8 seconds directly UCS512 write code, write code mode is the default three-channel
Encryption Glossary
Notes: 1, such as the controller proposes to add a differential relay over 50 m distance to the lamp.
2, wire transfer signal is recommended to use a good quality UTP or RVVP shielded cable for transmission.
Specific parameters:
Card:
Type: SD Card
Capacity: 128MB-2GB
Format: FAT format
Save the document:. * Led
Physical parameters:
Working temperature: -30-85
Power supply: DC5V input
Power consumption: 3W
Weight: 0.8Kg
Note:
1, before copying the files to the SD card, you must format the SD card, attention is to be formatted before each copy.
2, SD card must be formatted as "FAT" format.
ote: SD card controller can not hot-swappable, plug the SD card each time that you must first disconnect the power controller.
