2015 Hot New Products Russian Ceiling Light

2015 Hot New Products Russian Ceiling Light photo-1
US$ 20 - 85 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ASRAM
Model Number:
ASR-L66-395
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name ASRAM
Model Number ASR-L66-395

2015 Hot new products russian ceiling light


Features

1. Lifetime: more than 50,000 hours.

2. Energy saving: In the same specification and luminous flux, the LED panel light can save 50% than the traditional T8 lamps, and 30% than the new T5 lamps.

3. Low temperature rise: The LED panels temperature rise is less than 25°C.

4. Low working voltage: 12VDC, 24VDC and 36VDC all available.

5. Ultrathin design: the thickness is 12mm.

6. Anti-glaring: 172 degrees while the traditional lamp is 120 degrees.

7. Small radiation.

8. Low luminous decay: Within 10,000 hours,the luminous decay remains at 3%.

9. User-friendly: Easy installation. It can be directly replaced the original T8/T5 lamp panel without installing other facilities.

10. Flexible design: The client can specify any size and specification he want.



Technical parameters:



Specification

Asram-P15

Asram-P22

Asram-P33

Asram-P63

Asram-P66

Asram-P13

Asram-P16

Dimension ( mm)

150x150

200x200

300x300

600x300

600x600

1200x300

1200x600

Power consumption

8w

12W

24W

36W

48W

60W

72W

LED QTY

84 pcs

120 pcs

240 pcs

360 pcs

480 pcs

600 pcs

720 pcs

Input voltage (Driver)

90-135VAC or 175-265VAC /50-60HZ

Output voltage (Driver)

12~14V DC

12~14V DC

24~28V DC

36~42V DC

48~56V DC

60~70V DC

72~84V DC

Constant current

900mA

900mA

900mA

900mA

900mA

900mA

900mA

Efficiency

more than 85%

PF

more than 0.9

CCT

3000K, 5000K, 6500K

Luminous

560 lm

840 lm

1680 lm

2520 lm

3360 lm

4200 lm

5040 lm

Luminescence efficiency

70 lm/w

70 lm/w

70 lm/w

70 lm/w

70 lm/w

70 lm/w

70 lm/w

Net Weight (includes driver)

0.3KG

0.4KG

0.9KG

1.8KG

3.6KG

3.6KG

7.2KG







Advantage

1. High brightness up to adopting side light technology.

2. The brightness is 20% higher than the common diffuser plate while use Acrylic panel with laser-engraved grids.

3. Good heat dissipation and obtained the national patents.

4. Obtained the Certificate of Utility Model Patent and Design Patent.

5. With LED driver made by own factory what constant current and constant voltage.

6. Can be used with Dimmers, dimming range: 1-100%.

7. Lighting angle is more than 172°, uniform illumination and no dark area.

8. No-glaring.

9. Customized size and wattage are welcome. Maximum size: 2400x1200mm.

10. MOQ for 10pcs.

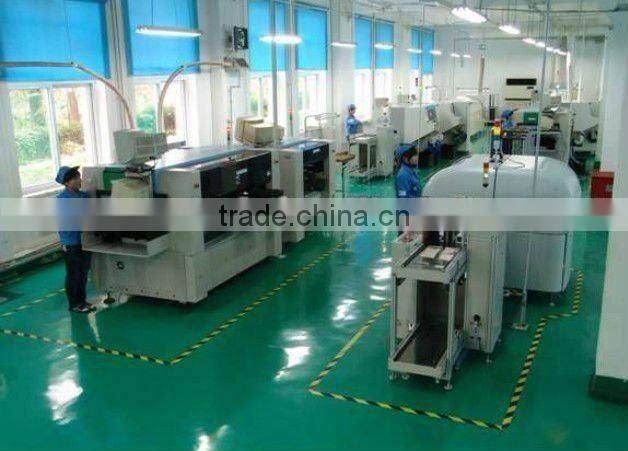

Factory:



2015 Hot new products russian ceiling light2015 Hot new products russian ceiling light

2015 Hot new products russian ceiling light2015 Hot new products russian ceiling light2015 Hot new products russian ceiling light

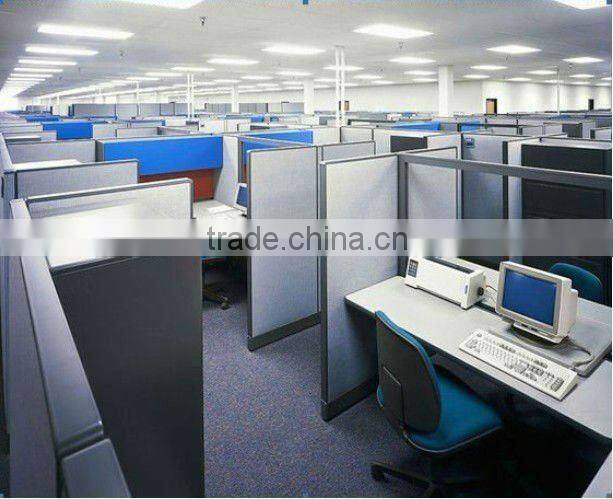

Effect:





2015 Hot new products russian ceiling light





Note:

1. All the above items are under factory standard warranty.

2. All the shape, size, color, brightness is available here and OEM and ODM is welcome.

3. The price is much more flexible and it completely depends on the quantity you need.



If interested, Welcome your inquiry! (Factory:Shenzhen,China)
