t-4000 led pixel controller DC 5V input 8W
Features:
1)32—256 Gray,Gamma correction procession software
2)Support the rules and special-shaped handle
3)Four ports output, each port support 1024/2048 lights
4)Single offline control, playback content stored in SD card
5)T-4000 can store up to 16 files, copy multiple files to SD card in order
Note:
T-4000 single port 512 lights, the playback speed of up to 30 frames / sec, the port more than 512 lights, the frame rate with the increase in the number of lights automatically reduced.
Support chips:
Support chips |
LedEdit corresponding model |
Single one support lights |
Remarks |
LPD6803,D705,1101,6909,6912 |
T-1000-6803 |
2048pixels |
|
LPD8806,LPD8809 |
T-1000-8806 |
2048 pixels |
|
TM1803,TM1804,TM1809,TM1812 |
T-1000-TM |
2048 pixels |
TM1804 and TM1809 are divided into high and low speed |
DMX512 |
T-1000-DMX |
170/512 pixels |
Compatible standard DMX512 agreement |
WS2801,WS2803 |
T-1000-WS |
2048 pixels |
|
TLS3001,TLS3002 |
T-1000-TLS |
2048 pixels |
|
P9813 |
T-1000-P9813 |
2048 pixels |
|
SM16715 |
T-1000-SM16715 |
2048 pixels |
|
SM16716 |
T-1000-SM16716 |
2048 pixels |
|
BS0815 |
T-1000-0815 |
2048 pixels |
|
Match 6909,6912 Guardrail tube |
T-1000-HL32 |
1024 pixels×sub-control number |
Must connect sub-control board |

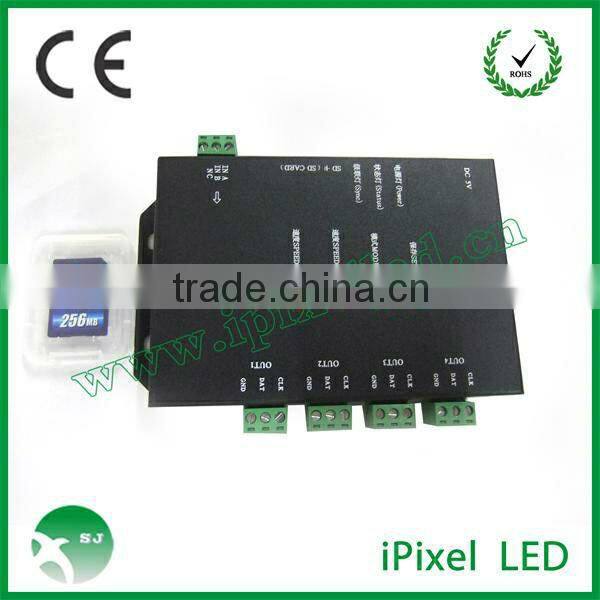

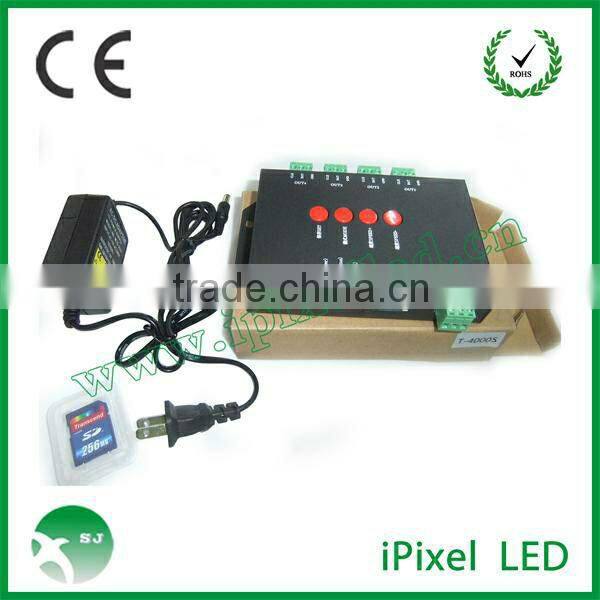

Product Images:
Buttons definition:
Buttons |
Definition |
|
SET |
Save settings(if press SET,the current settings file and playback speed are saved, according to this to play after the next boot) |
|
MODE |
Switch files |
|
SPEED+ |
Speed up |
Press SPEED+ and SPEED- at the same time, enter files loop model |
SPEED- |
Speed down |
|
Signal output definition:
COM |
Ground |
DAT |
Signal |
CLK |
Clock |
Special parameters:
Memory card:
Type:SD card(if control more lights, suggest using high-speed SD card)
Capacity:32MB—2GB
Format:FAT format
Store files:*.led
Physical parameters:
Temperature:-20°C—85°C
Power supply:DC 5V input
Power:4W
NOTE:
1.To copy files to SD card, you must first format to the SD card, pay attention to is is that each copy must be formatted before.
2.SD card must be formatted as FAT format.
3.The SD card in the controller can not be hot-swappable, plug the SD card every time, you must first disconnect the power supply controller.

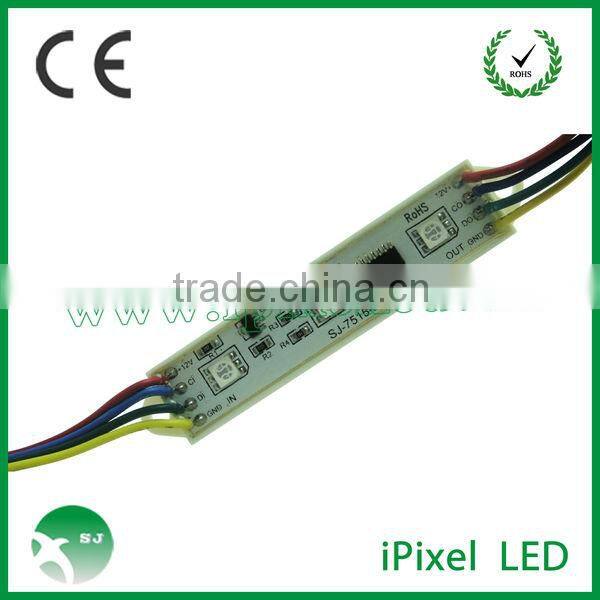

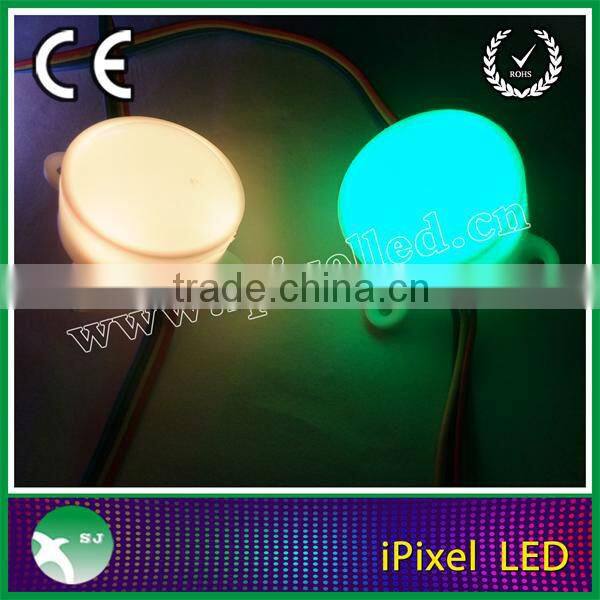

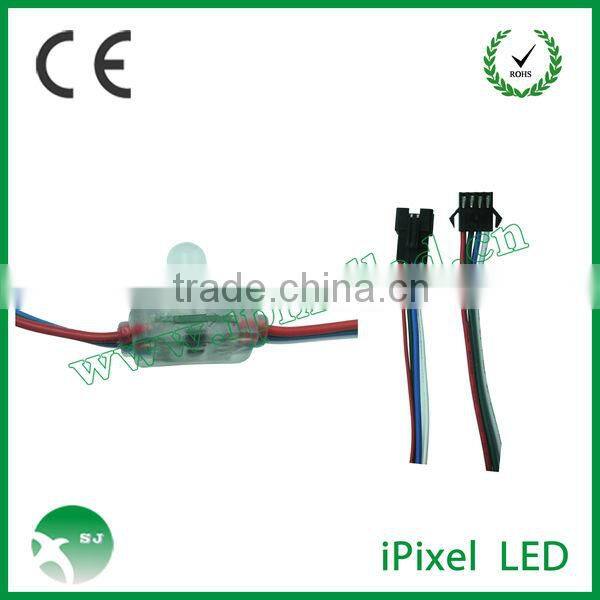

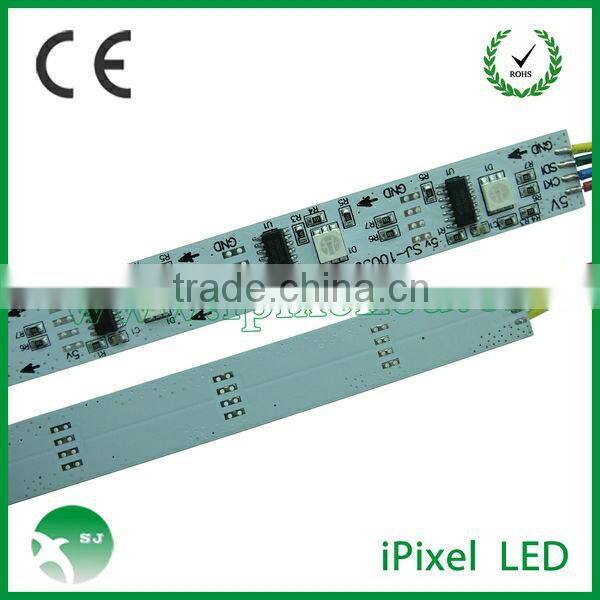

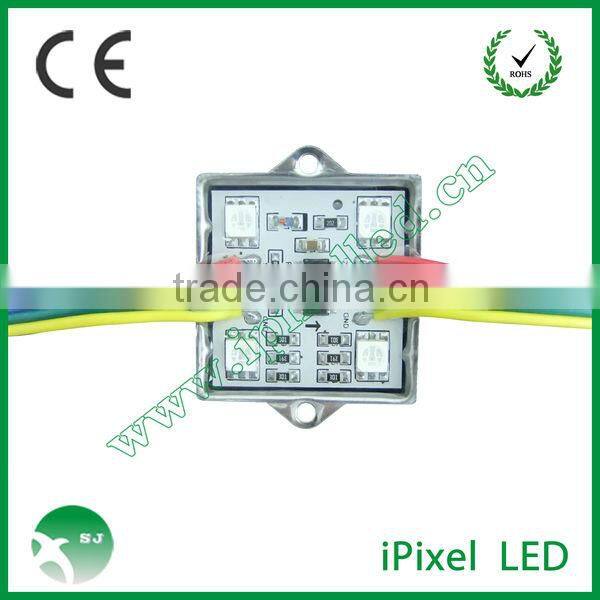

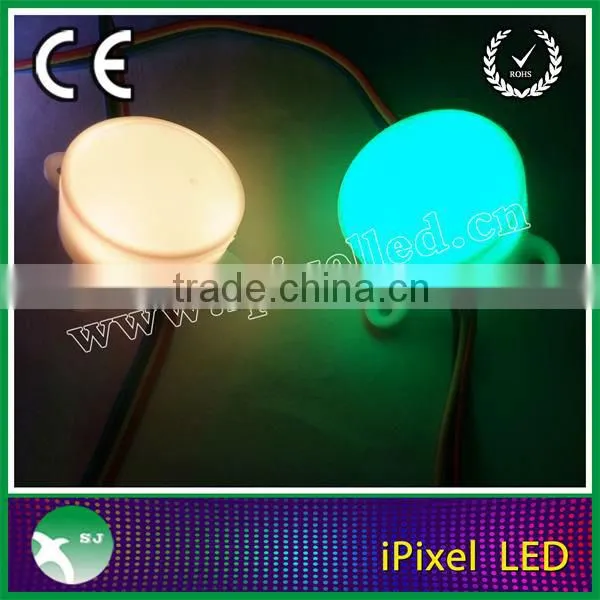

Controllable leds:
