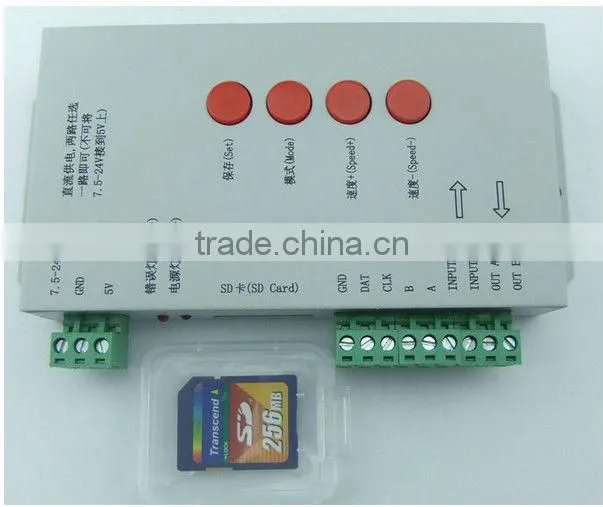

Digital programable led Pixel controller with sd card

Specifications

1)with sd card
2)support 2048 pixels

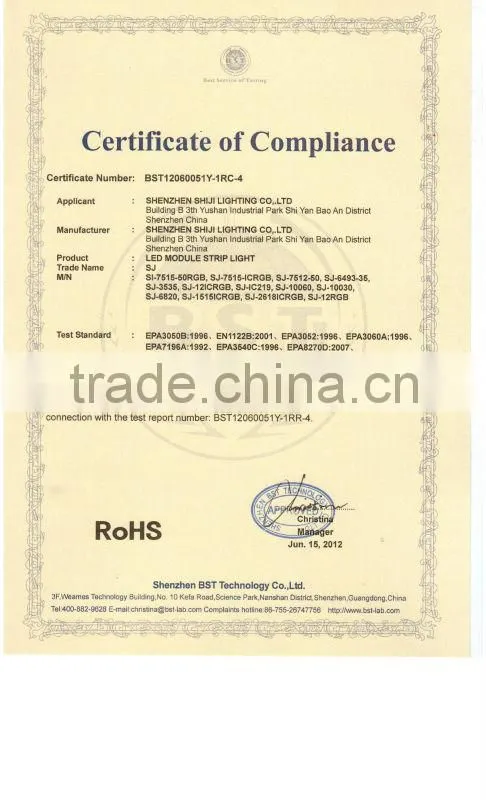

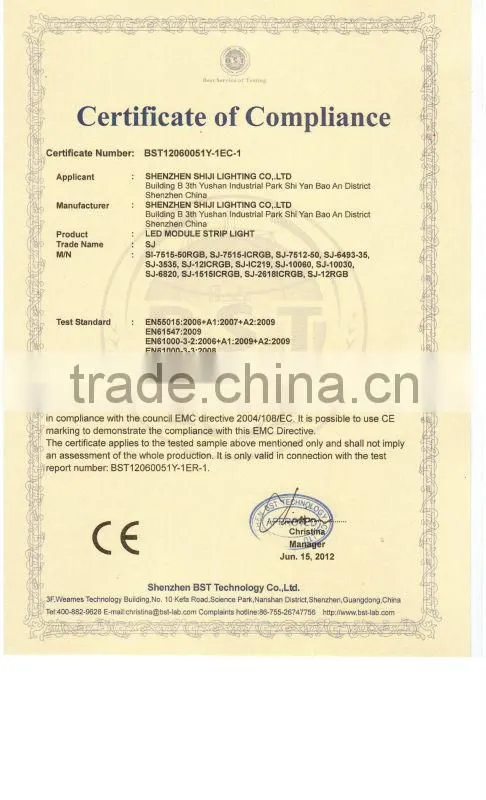

3)CE& RoHS
4)WS2801,LPD6803,UCS1903,and etc...
5)Off-line controller

Digital programable led Pixel controller with sd card





Features:



1)32—256 Gray,Gamma correction procession software



2)Support the rules and special-shaped handle



3)Single-port output,can support 1024/2048 lights



4)Off-line control, play back content stored in the SD card

5)T-1000C store a maximum of 16 documents,copy multiple files to the SD card in order





Instructions:



1) T-1000C-port 512 lights, the playback speed of up to 30 frames / sec, the port more than 512



lights, the frame rate with the increase in the number of lights automatically reduced



2) Display files naming: when placing one file, copy the software-generated display file to the



formatted SD card, when placing multiple files should be named as “00led”,”01led”,”02led”…



(00means the first display file, 01means the second, and so on)



Suppported Chips:





supported chips	LedEdit software that models	Single load number of lamp	Notes
LPD6803,D705,1101,UCS6909,UCS6912,	T-1000-6803	2048 Pixel
LPD8806,LPD8809	T-1000-8806	2048 Pixel
TM1803,TM1804,TM1809,TM1812,UCS1903	T-1000-TM	2048 Pixel	TM1804 and TM1809 of high speed
Standard DMX,HX512	T-1000-DMX	170/512 Pixel	Compatible with standard DMX512 Protocol
WS2801,WS2803	T-1000-WS	2048Pixel
TLS3001,TLS3002,TLS3005,TLS3008	T-1000 -TLS	2048 Pixel
P9813	T-1000 -P9813	2048 Pixel
SM16715	T-1000-SM16715	2048 Pixel
SM16716	T-1000-SM16716	2048 Pixel
BS0815,BS0825,BS0901	T-1000-0815	2048 Pixel

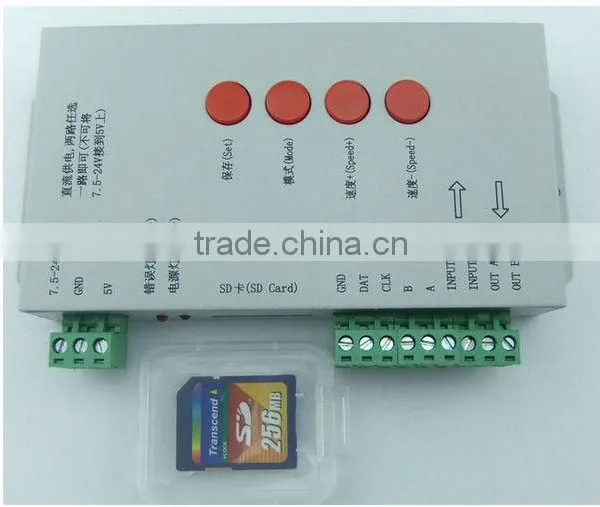

Detailed Pictures:











LED Pixels Controlled by T-1000S For Your Reference:



1)12mm WS2801 & LPD6803 & UCS1903 & SM16716 bullet led pixel lights:









2) 12mm square WS2801 & LPD6803 & TM1803 led pixel light









3)26mm UCS1903 ed pixel light





4)30mm WS2801 & P9813 led pixel light









5)45mm WS2801 & LPD6803 led pixel light





6) 50mm WS2801 & LPD6803 led pixel





7)WS2801 led pixel strip
