T-1000s Full Color Led Module Controller
Specifications
t-1000s full color led module controller:ing voltage: dc5v/dc7.5-24v
2.voltage:220v
3.2years'warranty
t-1000s sd controller full color led module
Performance features:
1.32-256 Gray,Gamma correction procession software
2.Support the rules and special-shaped handle.
3.Single-port output,can support 1024/2048 lights
4.Off-line control, play back content stored in the SD card
5.T-1000s can store a maximum of 16 documents,copy multiple files to the SD card in order
Note:
1.The model T1000S with one port output.When it control 512 pixels the speed can reach 30fps, more than 512 pixels,
the frame speed will be slow down automatically.
2. When T1000S controller control less than 512 lamps the frame rate can reach 30fps. When T-1000S control more than 512 lamps and less than 2048 lamps the frame rate will slow down automatically.
3. T-1000S must use the new software LedEdit 2013.
supported chips:
supported chips |
LedEdit software that models
|
Single load number of lamp
|
Notes
|
LPD6803,D705,1101,UCS6909,UCS6912, |
T-1000-6803 |
2048 Pixel |
|
LPD8806,LPD8809 |
T-1000-8806 |
2048 Pixel |
|
TM1803,TM1804,TM1809,TM1812,UCS1903 |
T-1000-TM |
2048 Pixel |
TM1804 and TM1809 of high speed |
Standard DMX,HX512 |
T-1000-DMX |
170/512 Pixel |
Compatible with standard DMX512 Protocol |
WS2801,WS2803 |
T-1000-WS |
2048Pixel |
|
TLS3001,TLS3002,TLS3005,TLS3008 |
T-1000 -TLS |
2048 Pixel |
|
P9813 |
T-1000 -P9813 |
2048 Pixel |
|
SM16715 |
T-1000-SM16715 |
2048 Pixel |
|
SM16716 |
T-1000-SM16716 |
2048 Pixel |
|
BS0815,BS0825,BS0901 |
T-1000-0815 |
2048 Pixel |

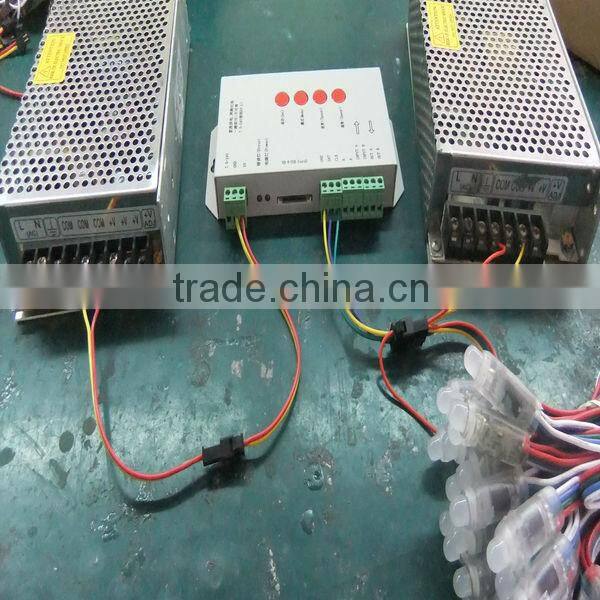

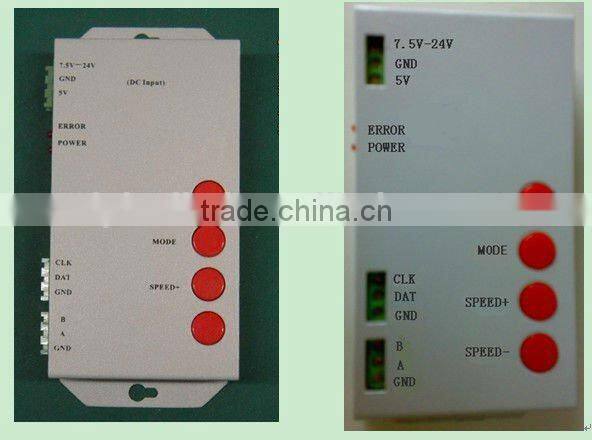

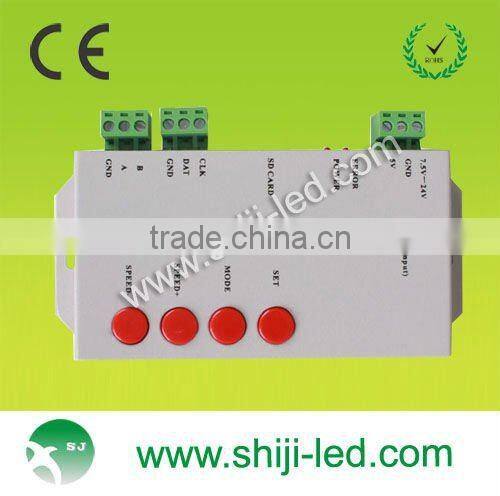

product images:

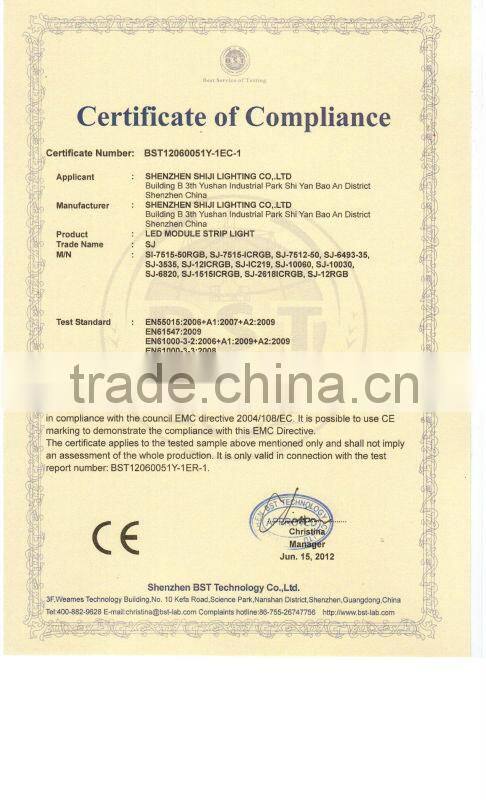

certificate:
