Help CenterSiglent SSA3032X 3.2GHz Compare With Tektronix Spectrum Analyzer
Related Products
-
SSA3032X 3.2GHz Spectrum Analysis InstrumentsNegotiableMOQ: 1 Piece -
SSA3032X 3.2GHz 10.1 Inch WVGA Color Spectrum AnalyzerNegotiableMOQ: 1 Piece
-
SSA3032X,3.2GHz Spectrum Analyzer With Tracking Generator OptionalNegotiableMOQ: 1 Piece
-
SSA3032X,3.2GHz Chinese Spectrum AnalyzerNegotiableMOQ: 1 Piece
-
Siglent SSA3032X 3.2GHz as Good as Rigol Spectrum AnalyzerNegotiableMOQ: 1 Piece
- 10.1 lnch WVGA(1024x600)Display
- Frequency Range from 9 kHz up to 3.2 GHz
- -161 dBm/Hz Displayed Average Noise Level (Typ.)
- -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
- Total Amplitude Accuracy < 0.7 dB
- 10 Hz Minimum Resolution Bandwidth (RBW)
| Model | SSA3032X | |
| Frequency Characteristic | ||
| Frequency range | 9kHz~3.2 GHz | |
| Frequency resolution | 1Hz | |
| Frequency span range | 0 Hz, 100 Hz to 3.2 GHz | |
| Frequency span accuracy | ± Span / (number of sweep points - 1) | |
| Frequency aging rate | <0.5 ppm/first year, 3.0 ppm/20 years | |
| Temperature stability | <1 ppm/year,0°C~50°C | |
| Filter Bandwidth(RBW) | 10Hz~1MHz, in 1-3-10 sequence | |
| Selectivity(60dB:3dB) | < 4.8:1, Gaussian-like | |
| RBW uncertainty | <5% | |
| Video bandwidth (VBW) | 1 Hz ~3 MHz, in 1-3-10 sequence | |
| VBW uncertainty | <5% | |
| Amplitude Characteristic | ||
| Amplitude & Level | Measurement range | DANL to +10dBm, 100kHz~1MHz,preamplifier off DANL to +20dBm, 1MHz~3.2GHz,preamplifier off |
| Reference level | -100 dBm to +30 dBm, 1 dB steps | |
| Preamplifier | 20dB(nom.), 9kHz~3.2GHz | |
| Input attenuation | 0~51 dB, 1 dB steps | |
| Max. input DC voltage | ±50 VDC | |
| Max. series RF power | 33 dBm, 3 minutes, input attenuation >20 dB | |
| SSB Phase Noise | 10 kHz offset, <-98 dBc/Hz (typ.) |
<-95 dBc/Hz |
| 100 kHz offset <-97 dBc/Hz (typ.) |
<-96 dBc/Hz | |
| 1 MHz offset <-117 dBc/Hz (typ.) |
<-115 dBc/Hz | |
| Spurious response | TOI | fc≥50 MHz, two -20 dBm tones at input mixer spaced by 100 kHz, attenuation = 0 dB, preamp off, 20°C~30°C +10dBm |
| SHI | fc≥50 MHz, mixer level -30dBm, attenuation = 0dB, preamp off, 20°C~30°C; -65 dBc | |
| Input related spurious | Mixer level = -30 dBm, 20°C~30°C; <-65 dBc | |
| Residual response | input terminated = 50 Ω,attenuation = 0 dB, 20°C~30°C; <-90 dBm,typ. | |
| Sweep and Trigger | Sweep time | 1 ms to 3000 s, Span ≥ 100 Hz 1 μs to 3000 s, Span = 0 Hz, RBW ≥ 100 kHz |
| Sweep accuracy | Accuracy, Speed | |
| Sweep mode | Sweep, FFT | |
| Sweep rule | Single, Continuous | |
| Trigger source | Free, Video, External | |
| External trigger | 5V TTL level, rising edge/falling edge | |
| Input/Output | Front panel RF input | 50 Ω,N-female |
| Front panel TG output | 50 Ω,N-female | |
| 10 MHz reference output | 10 MHz, >0 dBm, 50 Ω, BNC-female | |
| 10 MHz reference input | 10 MHz, -5dBm~+10dBm, 50 Ω, BNC-female | |
| External Trigger input | 1 kΩ, 5V TTL , BNC-female | |
| USB Host | USB-A 2.0 + | |
| USB Device | USB-B 2.0 | |
| LAN | LAN (VXI11), 10/100 Base, RJ-45 | |
| General Specification | ||
| Display | 10.1 inch TFT LCD, 1024×600(waveform area 751×501) | |
| Dimensions | 393 mm×207 mm×116.5 mm (W×H×D) | |
| Weight | Contain tracking generator 4.60 kg (10.1 lb) | |
Frequency Characteristic
Frequency range 9kHz~3.2 GHz
Frequency resolution 1Hz
Frequency span range 0 Hz, 100 Hz to 3.2 GHz
Frequency span accuracy ± Span / (number of sweep points - 1)
Frequency aging rate <0.5 ppm/first year, 3.0 ppm/20 years
Temperature stability <1 ppm/year,0°C~50°C
Filter Bandwidth(RBW) 10Hz~1MHz, in 1-3-10 sequence
Selectivity(60dB:3dB) < 4.8:1, Gaussian-like
RBW uncertainty <5%
Video bandwidth (VBW) 1 Hz ~3 MHz, in 1-3-10 sequence
VBW uncertainty <5%

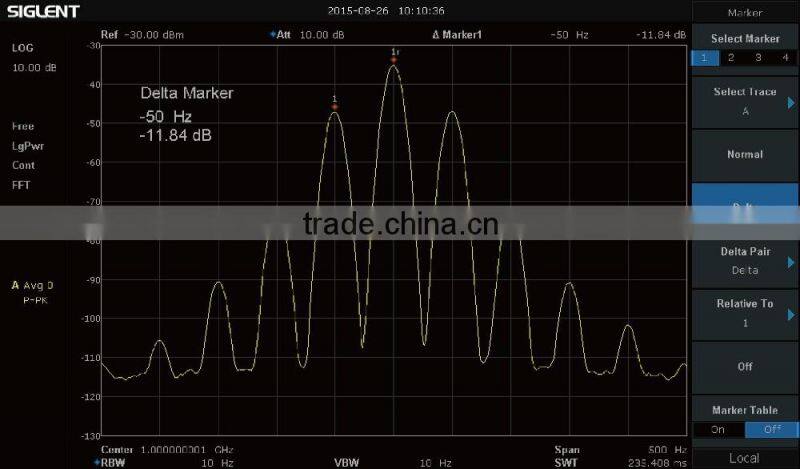

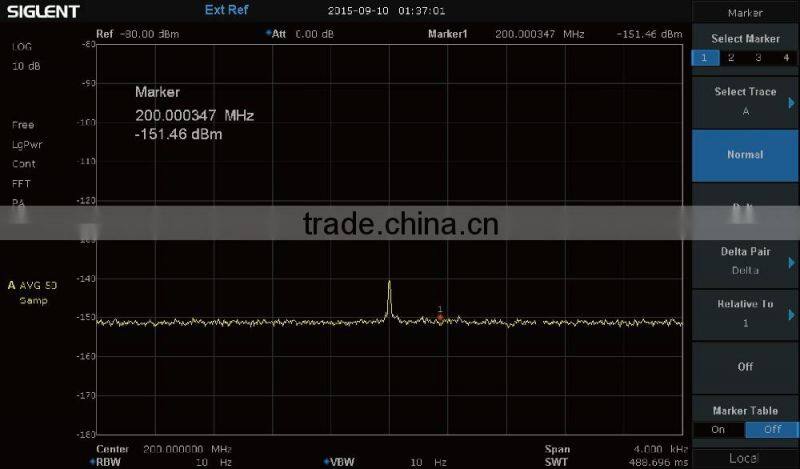

10 Hz Minimum Resolution Bandwidth (RBW) -151 dBm Displayed Average Noise Level (RBW=10 Hz)

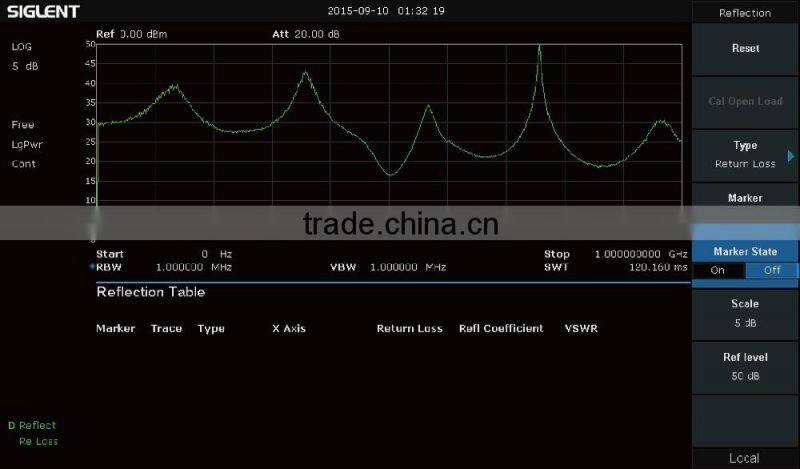

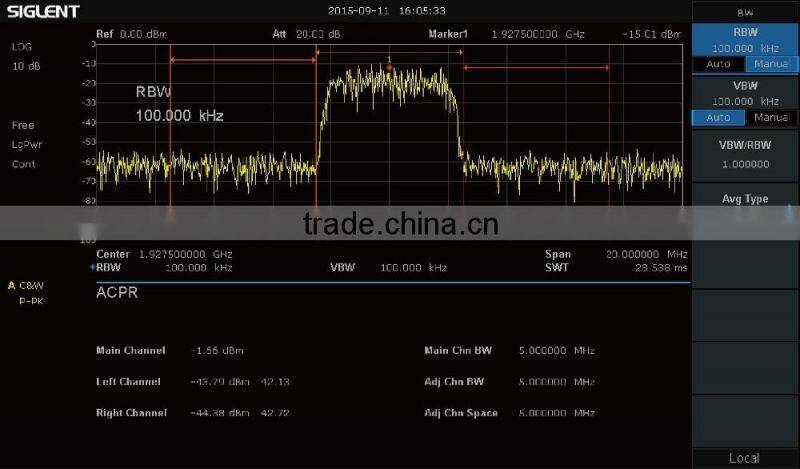

Advanced power measurement, calculate the ACPR Reflection measurement, acquire characteristic curve of the parameters Return Loss

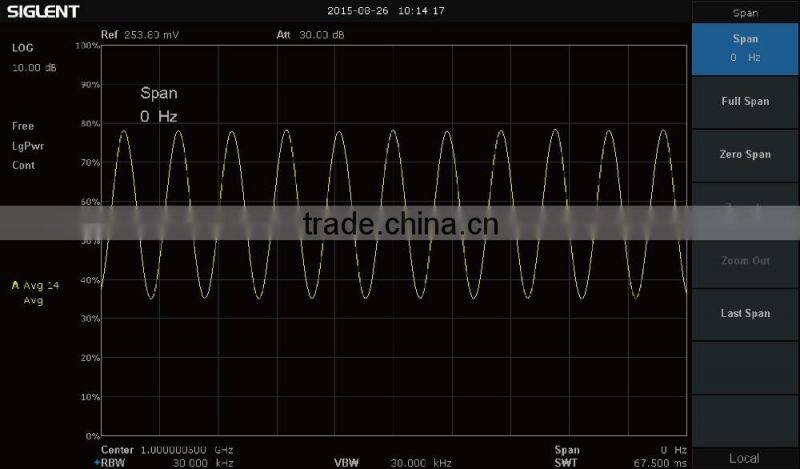

Demodulation at the zero span EMI filter, Quasi-Peak detector with limit template following CISPR 16

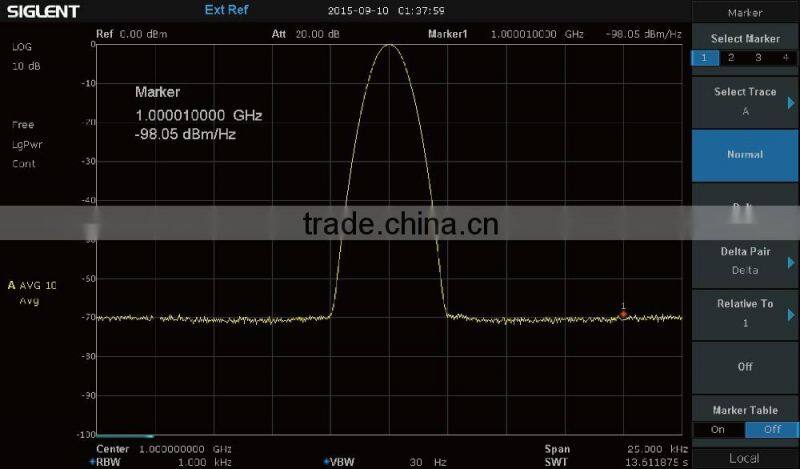

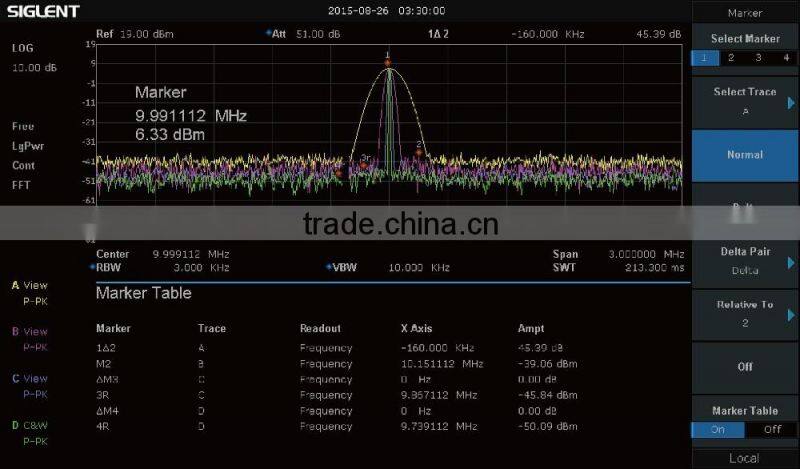

Phase noise -98 dBc/Hz@1 GHz, offset 10 kHz Support four traces and cursors independently
