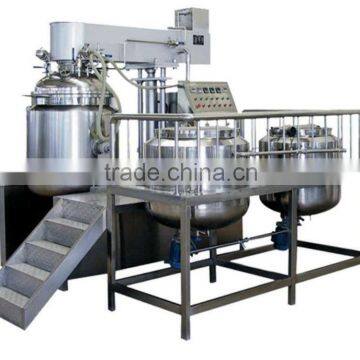

Vacuum Homogenizing Mixer
- 1 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Mixer Type | Homogenizer | |
| Application | Liquid with Suspended Solids | Additional Capabilities | Milling | |
| Place of Origin | Shanghai, China | Brand Name | SPM | |
| Model Number | ZJR | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Available for heating, melting, homogenizing and emulsifying materials,it is ideal device for paste-cream products of ....
We can supply a complete set according to the users' requirments.
Specifications
it is ideal device for paste-cream products of ....
Brief Introduction:
Our vacuum homogenizing machine can be used for heating, melting, homogenizing and emulsifying materials, as an ideal device for paste-cream products. This pharmacy equipment mainly consists of oil phase boiler, water phase, emulsification vessels, operation platform, and control tank.
Features of Vacuum Homogenizing Machine:
* Sufficient emulsification for the high adherence (over 5000 C.P.S.)
* The diameter of the emulsified grain can reach 2-5μm.
* Adopt high frequency vacuum material sucking device, convenient to operate.
* Made of stainless steel, healthful and axenic in operation.
* Easy to clean.
* The newest shearing and cutting homogenizing machine of non-clearance ceramic can make the diameter of the emulsified material reach 0.5μm.
Technical Specifications of Vacuum Homogenizing Machine:
Type | ZJR-5 | ZJR-10 | ZJR-20 | ZJR-50 | ZJR-100 | ZJR-200 | ZJR-300 | ZJR-500 | ZJR-1000 | |
Emulsifying phase vessel | Design Capacity (L) | 5 | 10 | 20 | 50 | 100 | 200 | 300 | 500 | 1000 |
Power of Spatula (Kw) | 0.1 | 0.1 | 0.37 | 0.75 | 1.50 | 2.20 | 2.20 | 3.0 | 7.5 | |
Rotation of Spatula (rpm) | 50 | 50 | 9-52 | 22-126 | 21-118 | 21-118 | 21-118 | 0-80 | 0-80 | |
Power of homogenizing Unit(Kw) | 0.18 | 0.18 | 0.55 | 0.75 | 1.5 | 4.0 | 4.0 | 7.5 | 11 | |
Rotation of homogenizing Unit(rpm) | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 | 2900 | 2930 | |
Dimensions (mm)
| φ300×300 | φ350×320 | φ450×400 | φ550×480 | φ650×780 | φ800×800 | φ900×900 | φ1050×1080 | φ1350×1180 | |
Oil-Water Phase Vessels | Working Capacity (L) | 3 | 6 | 14 | 35 | 70 | 140 | 180 | 300 | 650 |
Power of Spatula (Kw) | 0.06 | 0.06 | 0.18 | 0.37 | 0.37 | 0.55 | 0.55 | 1.1 | 2.2 | |
Rotation of Spatula | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | |
Dimensions(mm) | φ260×290 | φ300×390 | φ350×400 | φ500×400 | φ610×760 | φ710×780 | φ760×980 | φ950×825 | φ1150×1025 | |
Power of Electric Heater(Kw) | 1.0×6 | 1.0×6 | 1.0×6 | 1.5×6 | 2.5×6 | 3.0×6 | 3.0×6 | 5.0×9 | 7.0×9 | |
Vacuum Pump | Power | 0.37 | 0.37 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 5.5 | 5.5 |
About SPM
Shanghai Pharmaceutical Machinery Co. Ltd. (SPM) is recognized as a major pharmacy equipment manufacturer and supplier. Our company is founded in Shanghai, China, with a base of 20 years
of prior experience in the pharmaceutical industry. This has allowed us to expand our business in a
well-planned manner. We now offer a comprehensive line of quality pharmaceutical machines at
competitive prices. In addition, we can undertake turnkey projects for conceptual design, process
design, water treatment solutions, cleanroom design, etc.
SPM Products
Our products fall into four categories, which are solid preparation machinery,iquid-injection processing
machinery, pharmaceutical packaging machinery, and laboratory instruments. Some of our primary products
are pulverizers, blenders, granulators, sterilizing machines, blister packing machines, encasing machines, air
compressors, and tablet testing instruments. Our solid preparation equipment and liquid processing equipmen,which are corrosion resistant, highly effective, safe, and easy to use, are utilized in countless applications.
For example, our rotary tablet press presses granular materials into tablets, our capsule filling machine is
suitable for filling powdered or granular materials into capsules, and our freeze drying machine is mainly
used for the cryodrying of blood products, vaccines, antibiotics, and biological products. For more product
applications, please see our product page to find a complete list of our pharmaceutical machinery.
Projects
Customer Service
Our excellent customer service also includes the installation of our machines. To ensure smooth
performance, we also provide a one year warranty, and a spare set of wearing parts to our customers.
If any difficulty occurs, we will supply free spare parts and even on-site service, upon request.
Please contact us to help you with your particular spare parts of pharmaceutical equipment.
Industries Served
At SPM, we focus on fabricating efficient and technically sound pharmaceutical machines that meet or exceed our customers' expectations. Our vast product selection caters to numerous industries, worldwide. Some of the areas we serve are
- Food Industry
- Pharmaceutical Industry
- Chemical Industry
- Electronic Industry
- Ceramic Industry
International Markets
Our experience with pharmaceutical machinery throughout the world has built us a reputation as a
trusted pharmacy-equipment supplier. Currently, our products are exported to many parts of the
world, including Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romani,
Bulgaria, Russia, South Africa, Nigeria, USA, Australia, Canada, Argentina, Chile, and more.
We can supply a complete set according to the uses' requirments.
