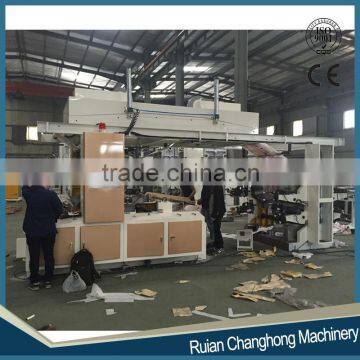

Changhong 6 color Tissue Paper Printing Machine / Napkin paper printing machine(CE Certificate)
Main features
- Method: Central impression for better color registration. With the central impression configuration, the printed material is supported by the cylinder, and greatly improving color registration, especially with extensible materials.
- Structure: Wherever possible, parts are communized for availability and wear-resisting design.
- Dryer: Hot wind dryer, automatic temperature controller, and separated heat source.
- Doctor blade: open type assembly for high-speed printing.
- Transmission: Hard gear surface, high precision Decelerate Motor, and encoder buttons are placed on both control chassis and body for operations convenience.
- Rewind: Micro Decelerate Motor, drive Magnetic Powder and Clutch, with PLC control tension stability.
- Gearing of Printing cylinder: repeat length is 5MM
Main Parts of printing machine
1)Automatic tension control and magnetic power
2)with EPC
3)air shaft
4)cylinder stator
5) Auto Loading
6) Taiwan Inverter
7) Schneider Swtiches
8)Chint Relay
9) Chromed Cylinder
Main Technical Parameter
Model |
CIS6-600 |
CIS6-800 |
CIS6-1000 |
CIS6-1200 |
CIS6-1400 |
Printing color |
6color |
6color |
6color |
6color |
6color |
Material feeding width |
650mm |
850mm |
1050mm |
1250mm |
1450mm |
Max Printing width |
550mm |
750mm |
950mm |
1150mm |
1350mm |
Max printing length |
250-800mm |
||||
Machine speed |
150m/min |
||||
Printing speed |
30-120m/min( depend on material, ink, plate design etc) |
||||
Register precision |
Longitude:±0.15mm ; Transverse:±0.15mm |
||||
Master motor |
3.7Kw, Taiwan Delta |
||||
The frequency converter |
3.7KW , Taiwan delta |
||||
PLC |
1set, Taiwan delta |
||||
Machine total power |
45KW |
50KW |
55KW |
60KW |
65KW |
Machine weight |
7.0Ton |
7.5Ton |
8.0Ton |
8.5Ton |
9.0Ton |
Machine size |
6.0m × 2.4m × 3.2m |
6.0m × 2.6m × 3.2m |
6.0m × 2.8m × 3.4m |
6.0m × 3.0m × 3.4m |
6.0m × 3.2m × 3.5m |
Optional parts which extra cost buy
NO. |
Goods of Descriptions |
1 |
Printing cylinder which use on flexographic printing machine |
2 |
Corona treatment, 2 kinds: China brand or Taiwan brand |
3 |
Monitor system ( also called image inspect device):screen+camera+controller |
4 |
Pate mounting machine(easier to mount plate more accurate) |
5 |
Plate making machine |
6 |
Anilox roller cleaning machine ( especially client buy machine for paper print) |
7 |
Ink viscosity measurement ( 1 color need 1pcs) |
1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
