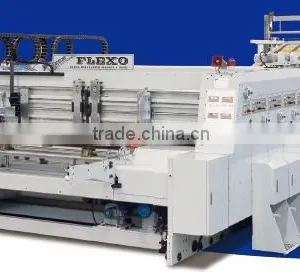

Help CenterFlexo Printing Machine
Related Products
General Conditions
The unit of measure will be the metric system as far as applicable.
All machinery and equipment of KCM is designed and manufactured in accordance with KS(Korea Industrial Standard) and CE(Conformity of European) if any other territorial compulsory industrial regulation is requested to be applied by the customer.
Screw threads will be in accordance with new metric standard (ISO screw) except where Whitworth or other threads are exceptionally applied.
All exposed machine surface finished and no-painted will be coated with a temporary rust preventative and all other surface will be suitable cleaned and coated with a rust preventative and finish paint before shipment
Planning, designing and manufacturing of the machinery and equipment supplied by KCM, will be included in this specification. The details will be shown in “Customer Check List” as the addendum of the contract document.
Compressed Air Requirement : 7.5 kg/cm2
Water Pressure Requirement : 5 kgs
General Specification
Machine Model |
KCMFLEXO 2336 |
Feeding Type |
Lead Edge Feeding of Sheets Through Suction |
Printing Location |
Bottom Printing Type |
Maximum Sheet Feed |
2300mm x 3,600mm |
|
(With Skip Feed :2,700mm x 3,600mm) |
Minimum Sheet Feed |
700mm x 1000mm |
Maximum Print Area |
2300mm x 3,550mm |
Board Thickness |
2 mm ~ 15.0 mm (“E” Flute ~ Double Wall Board) |
Machine Setting |
Automatic Computer Setting |
|
Max. Machine Speed
|
60 Sheets/min |
Board Transfer |
Pull Roll Transfer |
Anilox Roll |
Ceramic Anilox Roll |
Printing Die Thickness |
7.2 mm (Standard) or Customer’s Requirement |
Printing Die Mounting |
Die Fastening Locking System(Reel-Rod) or Matthews |
Slotter Type |
Dual Shaft System |
Slotter Knife |
Serrated Blade (Standard) or Plain Blade |
Slotter Blade Thickness |
8 mm or Customer’s Requirement |
Machine Color |
Ivory Gray (Standard) or Customer’s Requirement |
