Product Description

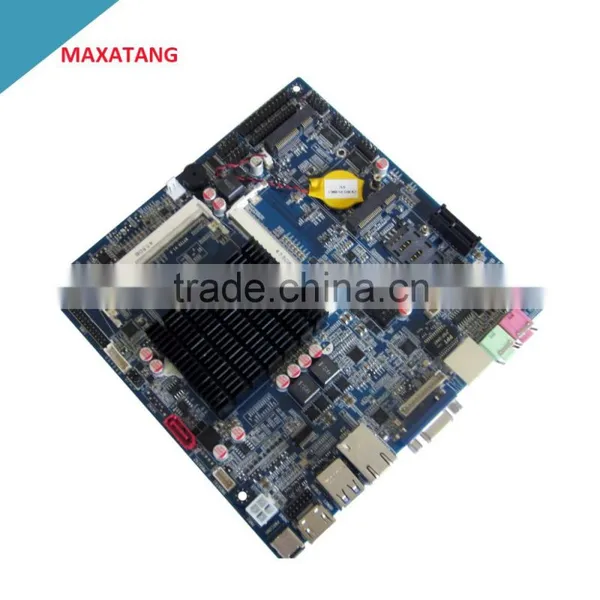

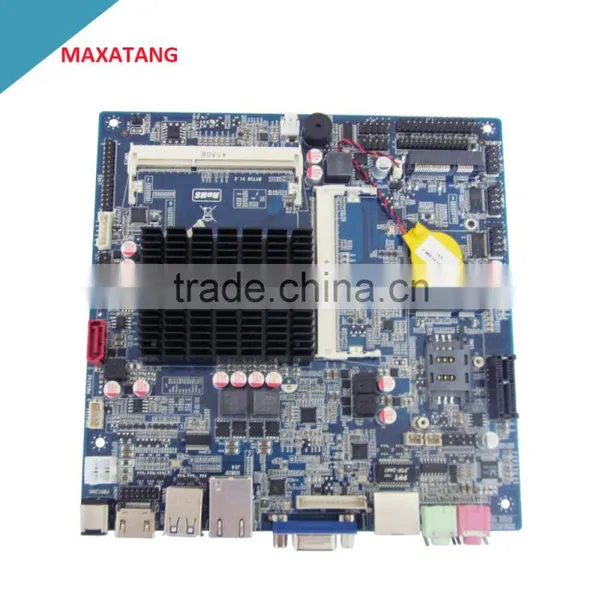

MITX-BYT20 is a mini-itx fanless motherboard based on low power bay trail platform Celeron N2940 (2.41GHz, quard-core,TDP10W). Powered by Bay Trail platform which is famous for its low power features, this mini-itx motherboard has a power consumption of less than 16W and fanless design. This mini-itx motherboard is equipped with 2 DDR3L 1333 MHz slots up to 8GB memory and multiple display ports as 1 HDMI, 1 VGA and 1 LVDS via headers. To expand its application, this motherboard has 2 mini PCIe for network card, sound card, 1 PCIex1 and 1 SIM slot. In addition, this motherboard has 2 LAN ports, 1 USB3.0, 5 USB2.0(4 via headers). These combined features make this mini-itx motherboard an ideal for various applications.

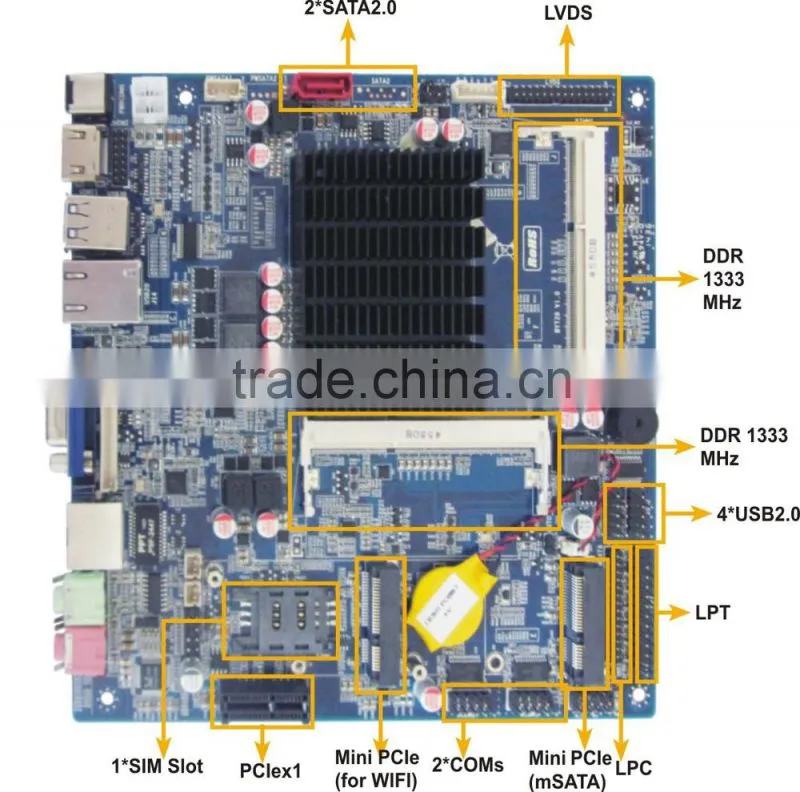

Features
- Onboard Intel® Bay Trail mobile Celeron N2940, 2.41GHz, quard-core
- Multiple display ports: HDMI, VGA, 1*dual channel 24 bit LVDS
- 2*SO-DIMM DDR3L 1333 MHz slots up to 8GB RAM
- 2*Mini PCIe, 1*PCIe x 1, for network card or sound card, 1*SIM Slot
- Rich I/O ports(6*USB(4*USB2.0 via header; 1*USB3.0), 2*RS232 COMs, 1*LPC, 2*LAN, 1*LPT, Mic in, Audio out, SPDIF, 2*SATA2.0 )
- Fan-less design, low power consumption, less than 16W.
Parameters
<div >
<tbody >
| CPU | Celeron N2940(2.00GHz, quard-core,TDP10W) |
| Memory | 2* SO-DIMM slots support DDR3L 1333 up to 8GB RAM |
| Ethernet | RTL8111F, 10Mbps/100Mbps/1000Mbps, 2 x LAN |
| Audio | Onboard ALC662 chip, supports SPDIF /td> |
| Rear panel I/O | 1x DC_IN 12(4 Pin header for output and input) |
Internal I/O Connectors |
2x SATA2.0(SATA2 and mSATA slot optional) |
| Power Consumption | Less than 16W |
| Operation temperature | -20~65 |
| Dimension | 170mm×170mm×1.5mm |
| Weight | 200g |

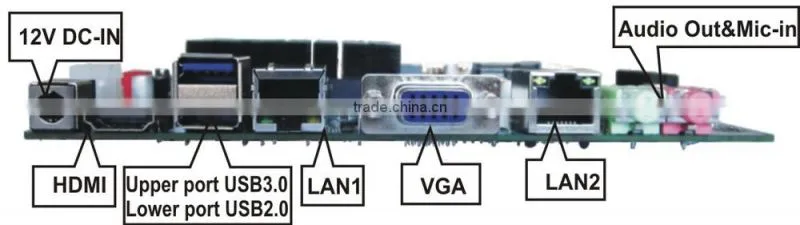

Rear Panel
>
20pcs in one carton
Founded in 2002, Shenzhen Maxtang Computer Company Limited (hereafter referred as Maxtang) is a pioneer immersed into low power consumption mini computer and mini-itx motherboard designing, researching and manufacturing. Equipped with dozens of experienced engineers in R&D department, Maxtang works closely with its customers to provide them a quicker time-to-market and best operating experience.
With its close cooperation with Giants like Intel, AMD, Nvidia and VIA, Maxtang enjoys its own production lines and has launched an extensive portfolio ranging from MITX motherboards, mini computers and industrial computers under its own brand Maxtang. Its products are widely used in applications like home, office, school system, data communication, hotel, KTV, AIO, digital signage, banking, medical POS and so on.
