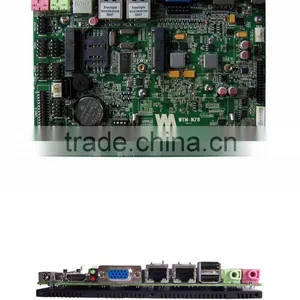

Integrated Intel 1037 u Industrial Mini - ITX VWM-M19 Motherboard
Specifications:
CPU |
Integrated Intel ® 1037 u 22 nm 1.80 GHz dual-core processor TDP 17 w, compatible Intel ® 847, 1007 and I3, I5 and I7 processor (FCBGA1023).
|
Chipset |
Intel® HM65 , Compatible with Intel ® NM70
|
Memory |
1* SO DDR3 1333/1066MHz ,max to 8GB
|
Power |
DC 12V In |
|
Storage
|
A standard SATA1 hard disk interface and A 2.5 -inch notebook hard drive , Adopt copper column support, can be directly installed laptop hard drive, transmission speed up to 6 GBPS
|
|
Network
|
Integrated a RTL gigabit nics, supported sensei, PXE network
|
|
Sound
|
Integrated ALC662 6 channel high-fidelity audio controller, support MIC, Line_out, power Amplifier Suggest to use 3 Ω 2 w speaker amplifiers
|
|
Display
|
Integrated Intel ® HD2500 core graphics VGA/LVDS/HDMI display output |
|
Expansion Bus Interface
|
1*Mini-PCIE slot , Support WIF/USB/ WIFI/3G 1*MSATA slot , Support USB WIFI, Intel SSD solid-state drives, transmission speed can reach 6 GBPS
|
BIOS |
32MB SMT Flash ROM |
Size |
170mm * 170mm |
SATA |
1 * an LVDS interface, support for dual channel 24 bitlcd (double eight) 2*15pin 1 * JHDMI interface 2*8Pin 1 * JVGA1 interface , the same as the DB15 signal 2 * 5 pin 4 * USB 2.0 interface Mini-PCIE 1 * FPANEL1 function button and the indicator light on the front panel interface 2 * 5 pin 1 * AUDIO AUDIO interface on the front panel 1 * 4 pin interface power amplifier 1 * SIM gets stuck 1 * PWROUT hard disk power supply interface * 4 pin ATX power supply interface support 12 v input and output, according to the use of DC power supply output voltage 1* LVDS INVERTER |
|
Backplane Interface
|
4 * USB 2.0 interface (including alternative USB2 and LAN2) 1 * HDMI interface 1 * VGA interface 1 * RJ - 45 network interface 1 * the Line out (green) 1 * Mic (red) 1* 12 v DC power input interface 1 * the Power or Reset switch (optional)
|
VWM-M19-2L |
Ultra-thin, Celeron1037 u CPU, HD video card, DDR3, double thousand network card , double eight LVDS 1*MSATA,1*MINIPCIE,2*COM
|
VWM-M19/NC/30/N3 |
Ultra-thin, Celeron1037 u CPU, HD video card, DDR3, 1 * gigabit nics , double eight LVDS 1*MSATA,1*MINIPCIE,2*COM , 2*USB3.0
|
GUANGZHOU VINWO ELECTRONIC CO., LTD was established in 2008 , located in Tianhe area Guangzhou, our factory covers an area over 2300 square meters.
We specialized in produce,sales and provide good techniques support for Digital Signage Kiosk for Industrail Mini - Itx Motherboard , Information Kiosk, LCD video wall, LCD Television, Electronic Whiteboard for Education, Multimedia exhibition planning and Film production planning.
Q:How many years warranty?
A:Generally speaking, we wil guarantee freey 1 year.
Q:What's your mode of transportation?
A: In general , we will make shippment by DHL, FedEx, EMS,etc,and also according to your request.
Q:What‘ your
