Mini itx motherboard with OPS interface for digital signage
- 10000 Piece / Pieces per Month
- SHENZHEN HONG KONG
- Network Security PC Motherboard Intel Atom 4C4T C3558R CPU 6*RJ45 2*SFP Gbe 2*SFP+ 10G Bypass PCIe x8 Expansion Mainboard
- Intel 12th Gen Alder Lake Quad Core N95 3.4GHz DDR4 HDMI LVDS mini-ITX Motherboard for POS SYS
- Mini-ITX Motherboard Intel Jasper Lake Quad Core N5105 CPU 16GB DDR4 HDMI EDP Mainboard for POS
- Mini-ITX Motherboard Intel Jasper Lake Quad Core N5095 CPU Dual DDR4 HDMI VGA RJ45 12VDC Mainboard
- China original Bo CPU PCA-6743 for India power system
- Onboard Intel Core i7-8565U 4.6GHz Computer Motherboard for Industrial Machine Vision Automation 4*Gbe LAN 6*COM
Product Details
Products Status: | Stock | Application: | Desktop | Chipset Manufacturer: | Intel |
Socket Type: | Other, LGA 1150 | Form Factor: | Mini-ITX | Memory Type: | DDR3 |
Graphics Card Type: | Other | Hard Drive Interface: | SATA | Brand Name: | Maxtang computer |
Model Number: | MITX-OH81 mini itx OPS motherboard | Place of Origin: | Guangdong, China |
Product Description
Mini ITX OPS motherboard main info

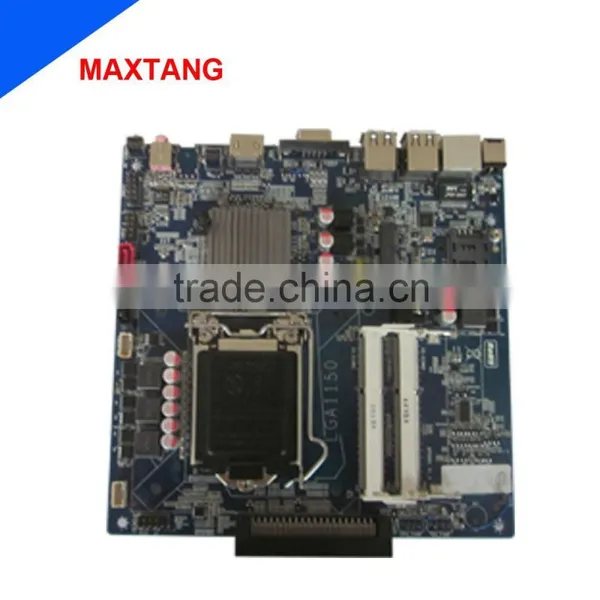

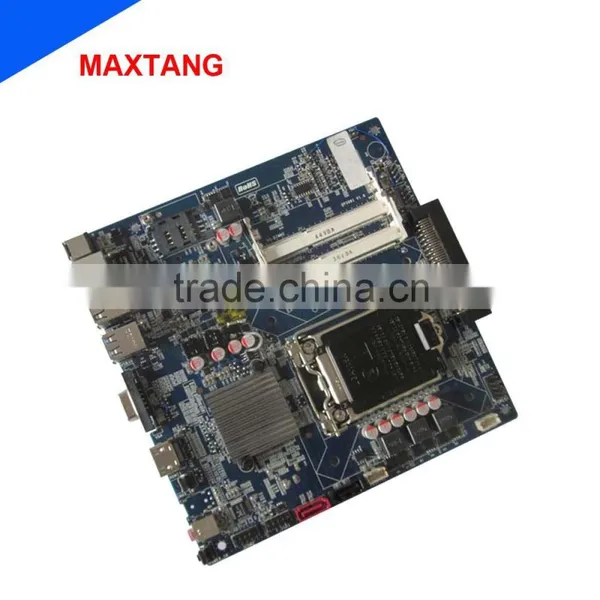

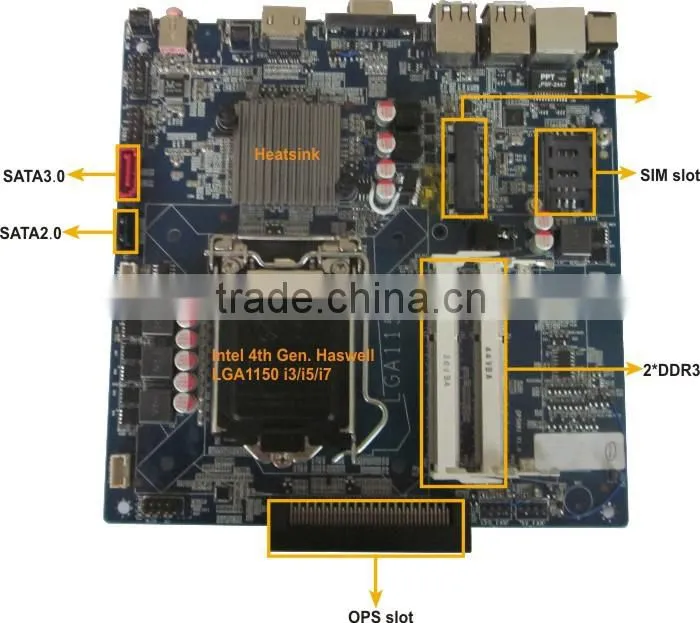

MITX-OH81 is a mini-itx OPS motherboard with LGA 1150 socket for Intel Haswell i3/i5/i7 processors and H81 chipset. This mini-itx OPS motherboard is equipped with 2 DDR3L 1333/1600 MHz slots up to 16GB memory and multiple display ports as 1 HDMI and 1 VGA. To expand its application, this OPS motherboard has 1 mini PCIe for network card, sound card, 1 SIM slot. In addition, this motherboard has 1 LAN ports, 2 USB2.0, 2 USB3.0, 1 SATA3.0, 1 SATA2.0. This mini-itx OPS motherboard also has 1 standard OPS interface for digital signage application. These combined features make this mini-itx OPS motherboard an ideal for various applications.
Mini ITX OPS motherboard Features
- Supports Intel 4th Gen. Haswell LGA1150 i3/i5/i7 with H81 chipset
- 2*DDR3L 1333/1600 MHz slots to 16GB memory
- Standard OPS interface
Rich I/O Ports: 6*USB(2*USB3.0, 2*USB2.0, 2*USB2.0 via header), 1*SATA3.0, 1*SATA2.0, 1*SIM Slot, 1*LAN, 1*Mic in, 1* Line out
- Supports multiple display with VGA & HDMI
- 1*mSATA slot, supports Intel; 1*SIM slot
Designed for digital signage, kiosk, HTPC, cloud thin client and other applications
CPU | LGA1150 socket for Intel 4th Gen. Haswell i3/i5/i7 |
Memory | 2* SO-DIMM slot support DDR3L 1333/1600 up to 16GB RAM |
Ethernet | RTL8111F, 10Mbps/100Mbps/1000Mbps, 1x LAN |
Audio | Onboard ALC662 chip |
Rear panel I/O | 1x CLR_MOS |
Internal I/O Connectors | 1x SATA2.0 |
Front panel I/O | 1x standard OPS interface |
Operation temperature | -20~65 |
Dimension | 170mm×170mm×1.5mm |
Weight | 320g |
Mini itx motherboard Pictures
Founded in 2002, Shenzhen Maxtang Computer Company Limited (hereafter referred as Maxtang) is a pioneer immersed into low power consumption mini computer and mini-itx motherboard designing, researching and manufacturing. Equipped with dozens of experienced engineers in R&D department, Maxtang works closely with its customers to provide them a quicker time-to-market and best operating experience.
With its close cooperation with Giants like Intel, AMD, Nvidia and VIA, Maxtang enjoys its own production lines and has launched an extensive portfolio ranging from Mini itx motherboards, mini computers and industrial computers under its own brand Maxtang. Its products are widely used in applications like home, office, school system, data communication, hotel, KTV, AIO, digital signage, banking, medical POS and so on. Its mini itx motherboards and mini computers are designed to be secure, reliable and high quality.
