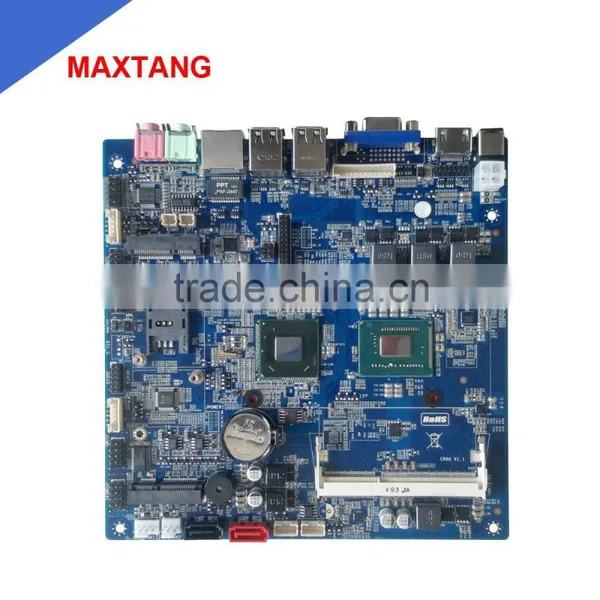

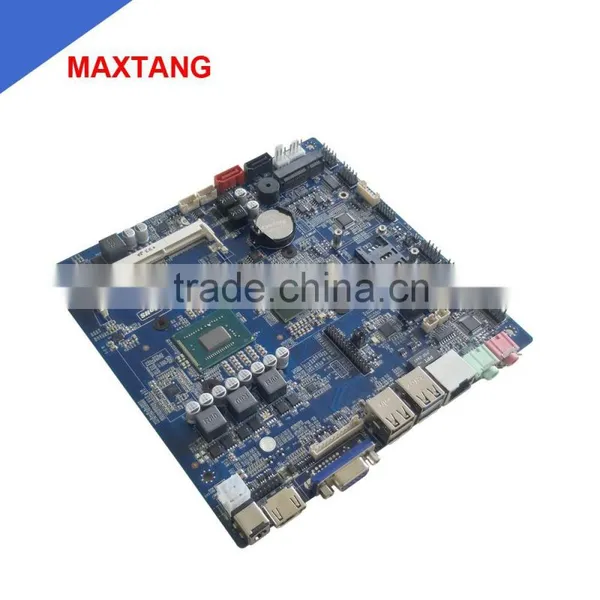

MITX-CR60-1037U is a mini-itx motherboard based on low power Celeron 1037U (1.80GHz, dual-core,TDP17W) and NM70 chipset. This mini-itx motherboard is equipped with 1 DDR3 1066/1333/1600 MHz slots up to 8GB memory and multiple display ports as 1 HDMI, 1 VGA and 1 LVDS via headers. To expand its application, this motherboard has 2 mini PCIe for network card, sound card and 1 SIM slot. In addition, this motherboard has 1 LAN ports, 2 USB3.0, 4 USB2.0(2 via headers), 1 LPT via header, 1 COM via header. This mini-itx motherboard also supports PXE, wake on LAN and auto power on. These combined features make this mini-itx motherboard an ideal for various applications.

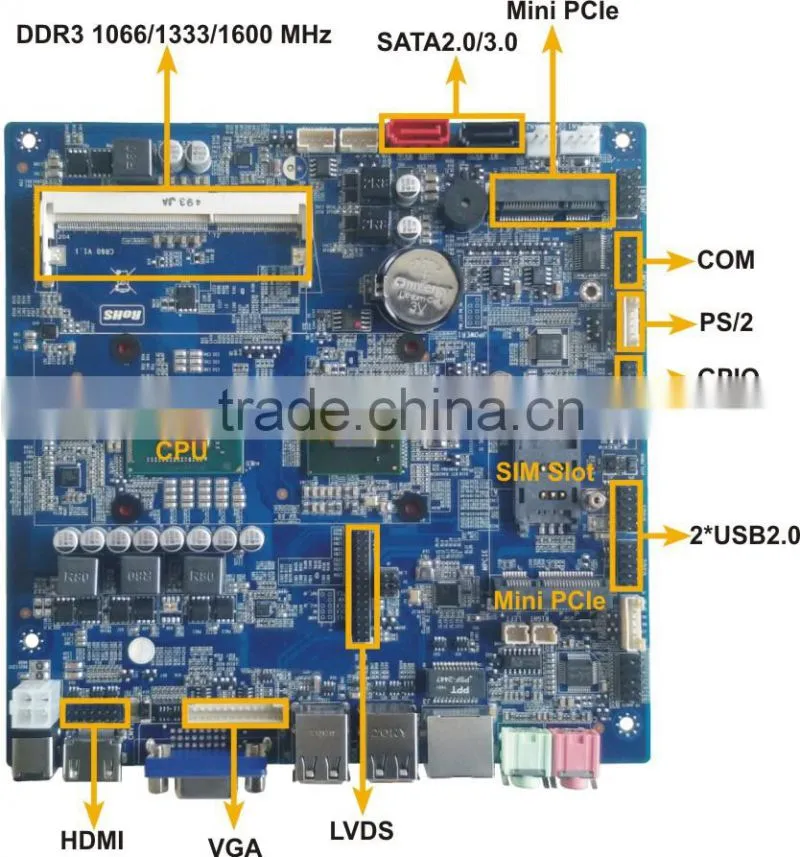

Board Features
- Onboard Intel Celeron 1037U with NM 70 chipset
- Multiple display ports: HDMI, VGA, 1*dual channel 24 bit LVDS
- Rich I/O ports(8*USB(4*USB2.0 via header;2*USB3.0), 6*RS232 COMs, 2*LAN, 1*LPT via header, Mic in, Audio out, SPDIF, 1*SATA2.0, 1*SATA3.0 )
- 2*Mini PCIe, 1*PCIe x 1, for network card or sound card, 1 SIM slot
- Supports PXE, wake on LAN and auto power
| CPU> | Celeron 1037U(1.80GHz, dual-core,TDP17W) |
| Memory | 1* SO-DIMM slot support DDR3 1066/1333/1600 up to 8GB RAM |
| Ethernet | RTL8111F, 10Mbps/100Mbps/1000Mbps, 1x LAN |
| Audio | Onboard ALC662 chip, supports SPDIF |

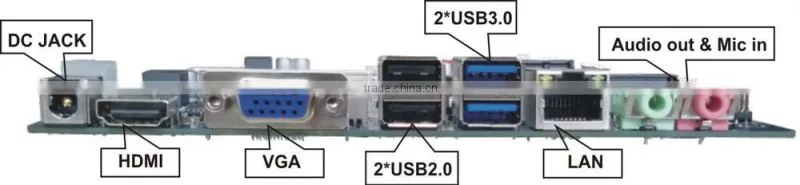

| Rear panel I/O | 1x DC_IN 12(4 Pin header for output and input) |
Internal I/O Connectors |
1x SATA2.0 |
| Power Consumption | Less than 24 |
| Operation temperature | -20~65 |
| Dimension | 170mm×170mm×1.6mm |
| Weight | 320g |
20pcs mini boards in one carton.
Founded in 2002, Shenzhen Maxtang Computer Company Limited (hereafter referred as Maxtang) is a pioneer immersed into low power consumption mini computer and mini-itx motherboard designing, researching and manufacturing. Equipped with dozens of experienced engineers in R&D department, Maxtang works closely with its customers to provide them a quicker time-to-market and best operating experience.
With its close cooperation with Giants like Intel, AMD, Nvidia and VIA, Maxtang enjoys its own production lines and has launched an extensive portfolio ranging from MITX motherboards, mini computers and industrial computers under its own brand Maxtang. Its products are widely used in applications like home, office, school system, data communication, hotel, KTV, AIO, digital signage, banking, medical POS and so on.
