Home > Computer Products > Mainboard > Intel Mini Itx Motherboard Celeron J1900/J1800 Dual Core With Multi Dsiplay Ports VGA HDMI

Intel Mini Itx Motherboard Celeron J1900/J1800 Dual Core With Multi Dsiplay Ports VGA HDMI

Intel Mini Itx Motherboard Celeron J1900/J1800 Dual Core With Multi Dsiplay Ports VGA HDMI thumbnail-1
Intel Mini Itx Motherboard Celeron J1900/J1800 Dual Core With Multi Dsiplay Ports VGA HDMI thumbnail-2
Intel Mini Itx Motherboard Celeron J1900/J1800 Dual Core With Multi Dsiplay Ports VGA HDMI thumbnail-3
Intel Mini Itx Motherboard Celeron J1900/J1800 Dual Core With Multi Dsiplay Ports VGA HDMI thumbnail-4
Intel Mini Itx Motherboard Celeron J1900/J1800 Dual Core With Multi Dsiplay Ports VGA HDMI thumbnail-5
Intel Mini Itx Motherboard Celeron J1900/J1800 Dual Core With Multi Dsiplay Ports VGA HDMI photo-1
Intel Mini Itx Motherboard Celeron J1900/J1800 Dual Core With Multi Dsiplay Ports VGA HDMI photo-2
Intel Mini Itx Motherboard Celeron J1900/J1800 Dual Core With Multi Dsiplay Ports VGA HDMI photo-3

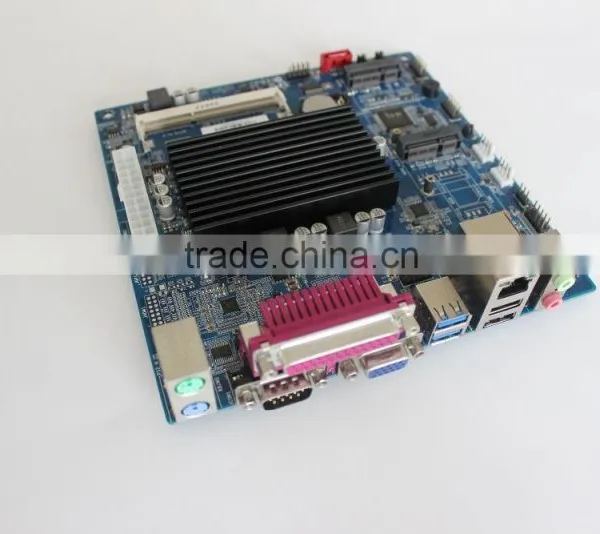

Intel Mini Itx Motherboard Celeron J1900/J1800 Dual Core With Multi Dsiplay Ports VGA HDMI photo-4

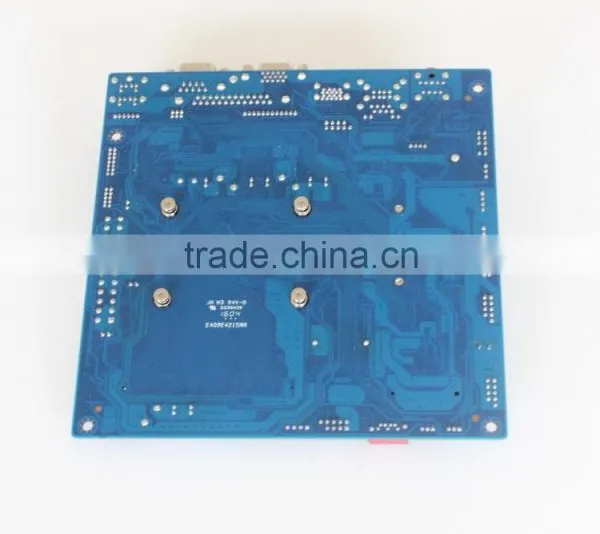

Intel Mini Itx Motherboard Celeron J1900/J1800 Dual Core With Multi Dsiplay Ports VGA HDMI photo-5
US$ 50 - 65 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Desktop
Chipset Manufacturer:
Intel
Contact Supplier Request Quote Chat Now
Shenzhen Maxtang Computer Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Desktop
Chipset Manufacturer Intel
Socket Type Other, FCBGA1170
Form Factor Mini-ITX
Memory Type DDR3
Graphics Card Type Integrated
Hard Drive Interface SATA
FSB / HT 800/1066/1333 MHz
Brand Name Maxtang
Model Number BYT70
Place of Origin Guangdong, China

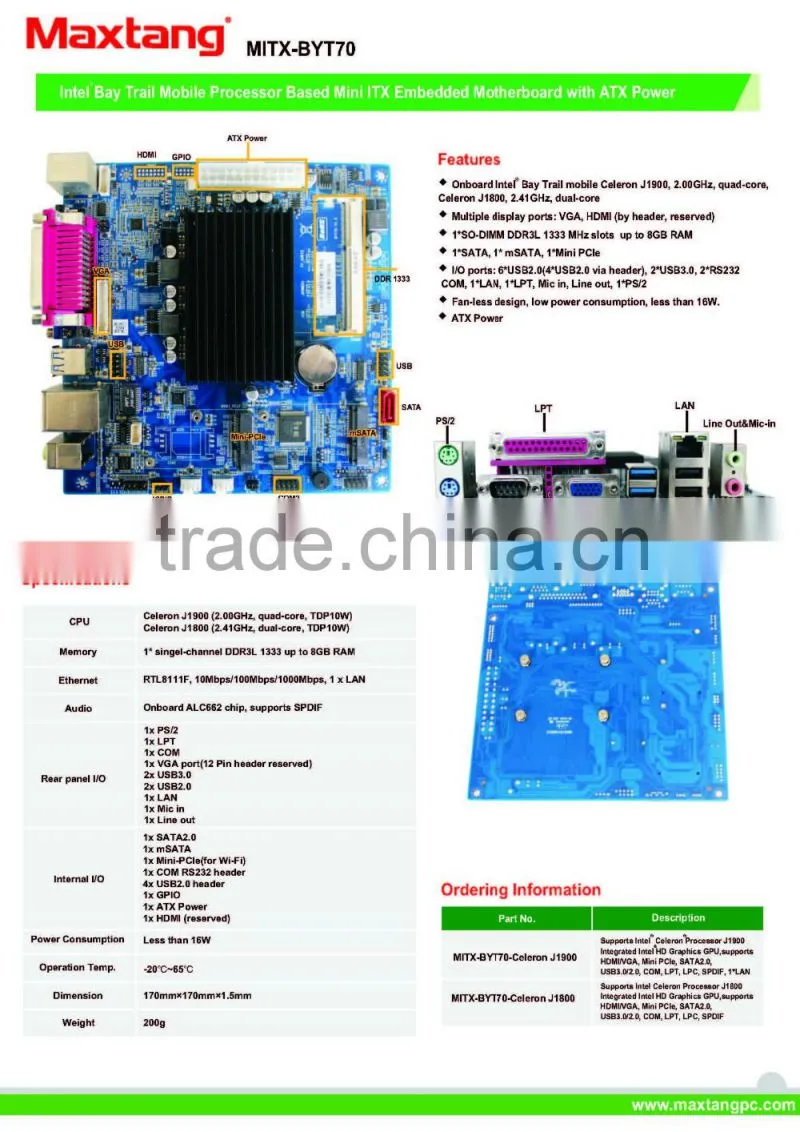

Product Description

1.Onboard Intel Bay Trail mobile Celeron J1900, 2.00 GHz, quad-core, Celeron J1800, 2.41 Ghz, dual-core

2. Multiple display ports: VGA, HDMI(by header, reserved)

3. 1*SO-DIMM DDR3L 1333 MHz slots up to 8GB RAM

4.1*SATA, 1*mSATA, 1*MIni PCle

5.I/O ports: 6*USB 2.0 (4*USB 2.0 via header), 2*USB 3.0, 2*RS232 COM, 1*LAN, 1*LPT, Mic in, Line out,  1*PS/2

6. Fan-less design, low power consumption, less than 16W.

7. ATX power

Product Name
intel mini itx motherboard Celeron J1900/J1800 dual core with multi dsiplay ports VGA HDMI
CPU
Celeron J1900(2.00GHz, quad-core, TDP 10W)
Celeron J1800 (2.41GHz, quad-core, TDP 10W)
Ethernet
RTL 8111F, 10Mbps/100Mbps/1000Mbps, 1*LAN

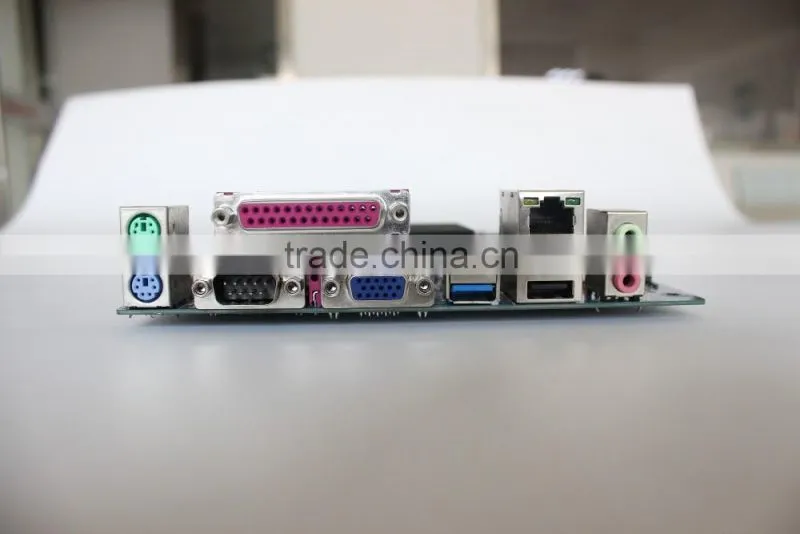

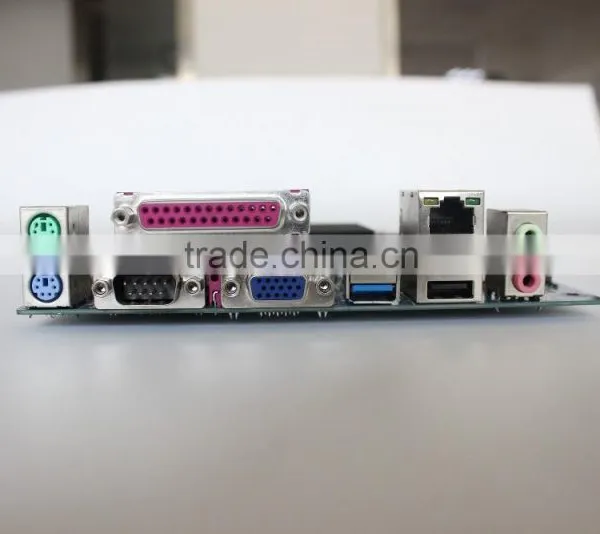

Rear panel I/O
2*USB 2.0 , 2*USB 3.0,
1* COM,
1*LAN,
1*LPT,
1*Mic in,
1*Line out,
1*PS/2
1*VGA port(12 pin header reserved)
Internal I/O
1* SATA 2.0,
1*mSATA,
1*LPT,
1*Mini-PCle(for Wi-fi),
1*COM RS232 header,
4*USB 2.0 header
1*GPIO
1*ATX power
1*HDMI(reserved)
Power Consumption
Less than 16W
Dimension
170mm*170mm*1.5mm
Weight
200g

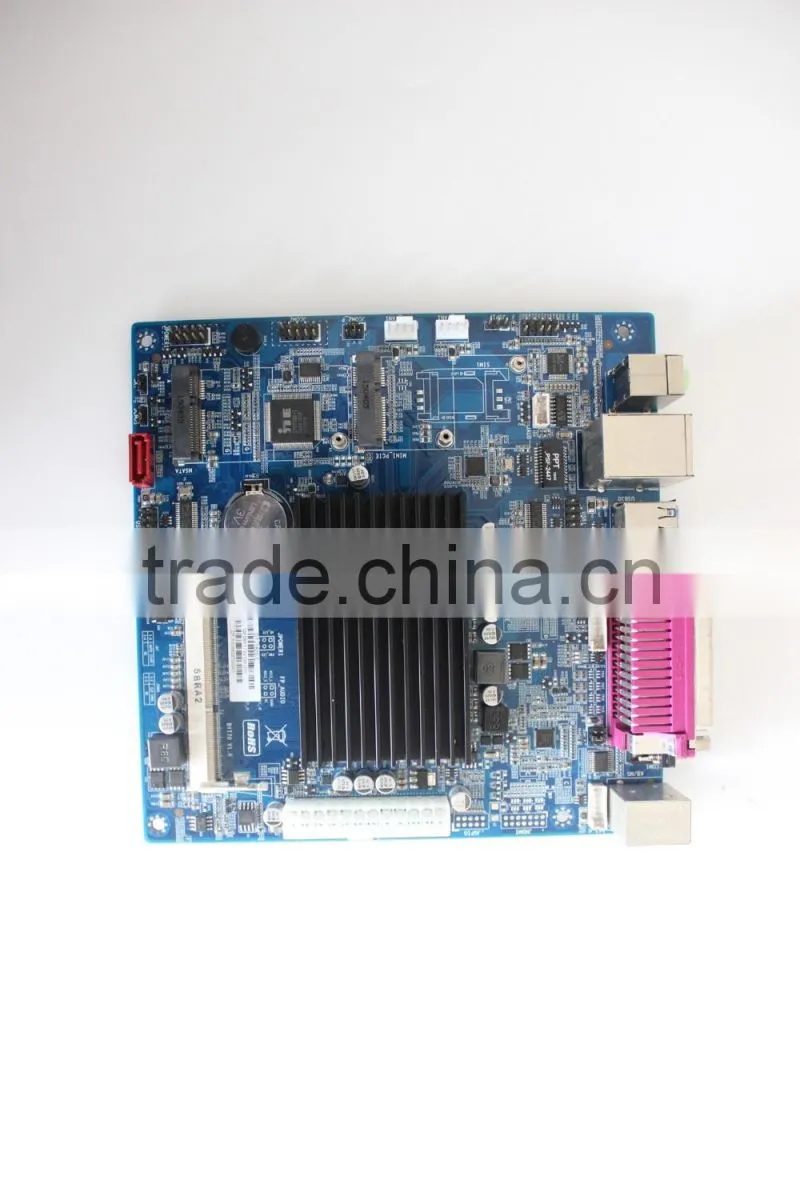

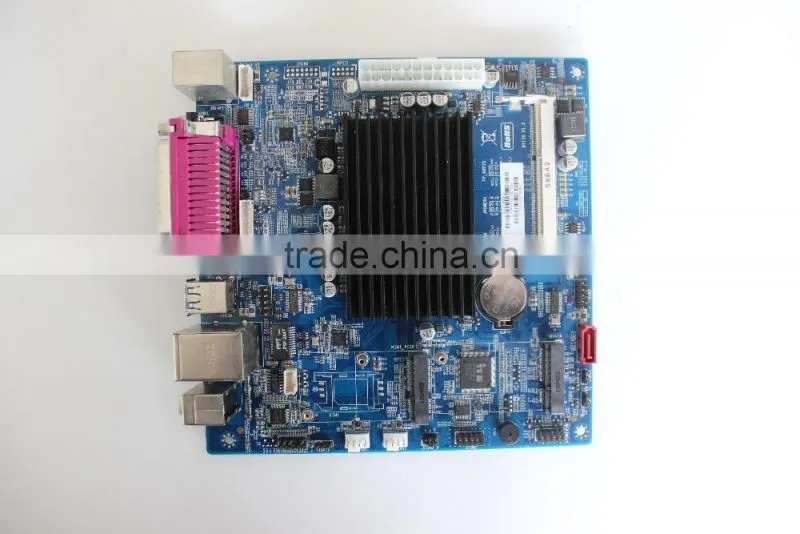

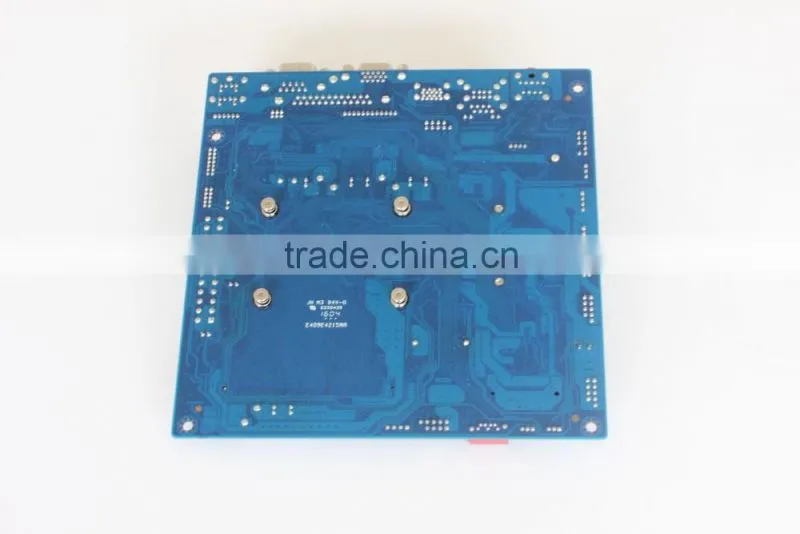

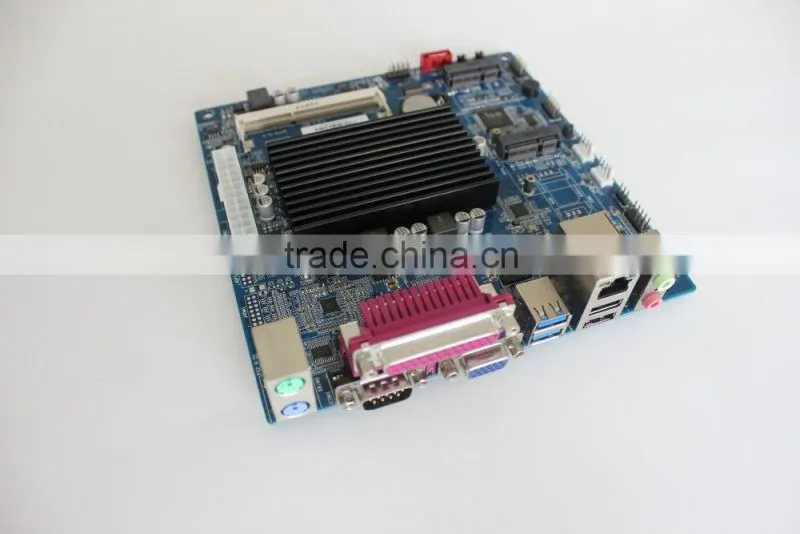

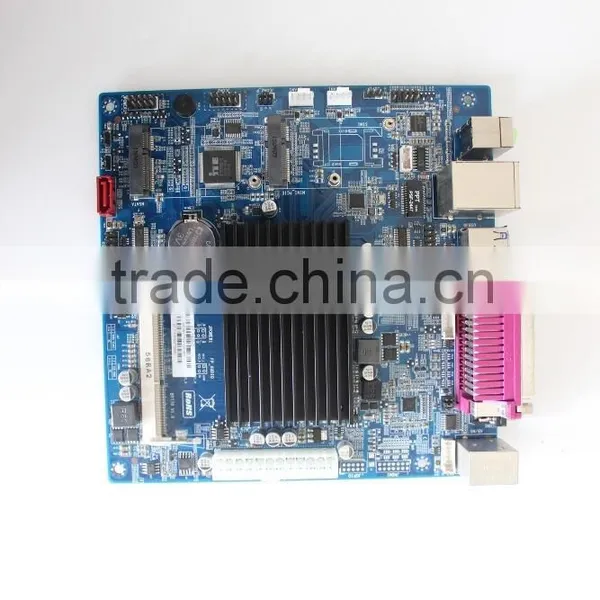

Products Show
Our Company

our workshop

our workshop


FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock. or it is 15-20 days if the goods are specially cutomised.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

 Lorraine : +86-18811883633
