Newly Arrived the 5th Gen Broadwell Mini Motherboard With I3-5010U I5-5200 I7-5500U 1 LPT Port Support Dual Channel LVDS

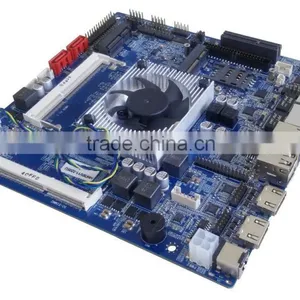

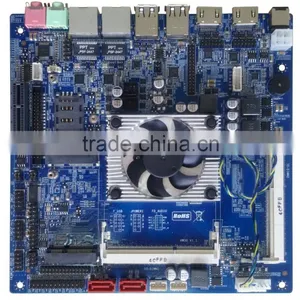

Newly Arrived the 5th Gen Broadwell Mini Motherboard With I3-5010U I5-5200 I7-5500U 1 LPT Port Support Dual Channel LVDS thumbnail-1
Newly Arrived the 5th Gen Broadwell Mini Motherboard With I3-5010U I5-5200 I7-5500U 1 LPT Port Support Dual Channel LVDS thumbnail-2
Newly Arrived the 5th Gen Broadwell Mini Motherboard With I3-5010U I5-5200 I7-5500U 1 LPT Port Support Dual Channel LVDS thumbnail-3
Newly Arrived the 5th Gen Broadwell Mini Motherboard With I3-5010U I5-5200 I7-5500U 1 LPT Port Support Dual Channel LVDS photo-1
Newly Arrived the 5th Gen Broadwell Mini Motherboard With I3-5010U I5-5200 I7-5500U 1 LPT Port Support Dual Channel LVDS photo-2
Newly Arrived the 5th Gen Broadwell Mini Motherboard With I3-5010U I5-5200 I7-5500U 1 LPT Port Support Dual Channel LVDS photo-3
US$ 215 - 360 MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Desktop
Chipset Manufacturer:
Intel
Contact Supplier Request Quote Chat Now
Shenzhen Maxtang Computer Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN HONG KONG
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Desktop
Chipset Manufacturer Intel
Socket Type Other, Onboard i5 5200U
Form Factor Mini-ITX
Memory Type DDR3
Graphics Card Type Integrated
Hard Drive Interface SATA
FSB / HT 1600/1333/1066MHz
Brand Name Maxtang
Model Number MITX-HW30 mini itx motherboard
Place of Origin Guangdong, China
Product Description



Mini ITX motherboard main info


MITX-HW30is a mini-itx motherboard based on Haswell i3 5010U,i5 5200U i7 5500U. This mini-itx motherboard is equipped with 2 DDR3L 1333/1600 MHz slots up to 16GB memory and multiple display ports as 2 HDMI. To expand its application, this motherboard has 1 mini PCIe for network card, sound card, 1 SIM slot, 1 PCIex4, 1LPT. In addition, this motherboard has 2 LAN ports, 2 USB2.0, 2 USB3.0(2 via headers), 1 COM via header. This mini-itx motherboard also supports PXE, wake on LAN and auto power on. These combined features make this mini-itx motherboard an ideal for various applications.


Mini ITX motherboard Features

  • Supports 5th Gen Broadwell I3 5010U, I5 5200U, I7 5500U
  • intergrated Intel HD Graphics 5500
  • 2*DDR3L 1333/1600 MHz slots to 16GB memory
  • 1*LPT header, 1*JLPC via header, 1* dual channel LVDS
  • (8*USB(4*USB2.0 via header; 2*USB3.0), 6*RS232 COMs(COM2 for RS232/RS422/RS485), 2*LAN, Mic in, Audio out, 2*SATA3.0 )
  • 1*Mini PCIe, 1*PCIe x 1, for network card or sound card, 1 SIM slot, 1*PCIEx2
  • Supports PXE, wake on LAN and auto power
Mini ITX motherboard parameters:

CPU

Intel Haswell i3 5010u(2.2 GHz, no turbo frequency , TDP 15W)

Intel Haswell i5 5200u(2.2 GHz, max turbo frequency 2.7 GHz, TDP 15W)

Intel Haswell i7 5500u(2.2 GHz, max turbo frequency 3.0 GHz, TDP 15W)
Memory 2* SO-DIMM slot support DDR3L 1333/1600 up to 16GB RAM
Ethernet RTL8111F, 10Mbps/100Mbps/1000Mbps, 2x LAN
Audio Onboard ALC662
Rear panel I/O

2x HDMI port(3840x 2160/60HZ, supports 3840*2160 resolution)
2x USB3.0
2x USB2.0
2x LAN
1x Mic in
1x Line out
<p >Internal I/O;Connectors

2x SATA3.0
1x half-size Mini-PCIe

1x mSATA
6x COM (COM2 for RS 232/RS 422/RS 485)
1x LPT

1x JLPC
4× USB 2.0 via header
1× 4PIN power

1× PCIe× 4
1x SIM slot

1x dual channel LVDS
Operation temperature -20~65
Dimension 170mm×170mm×20mm
Wake on LAN YES

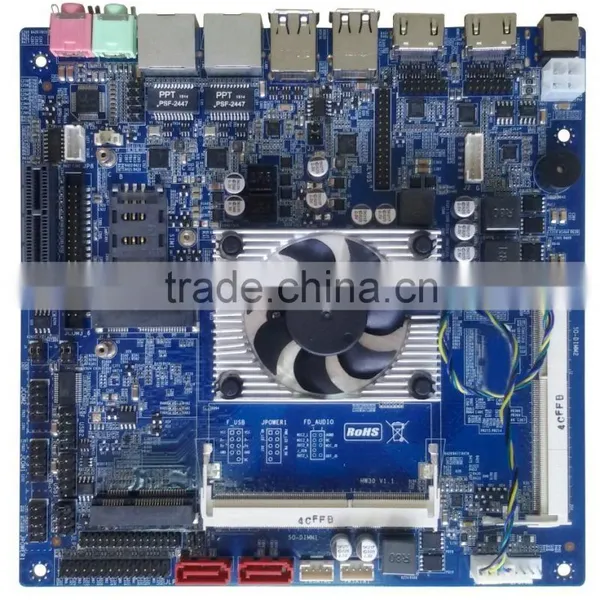

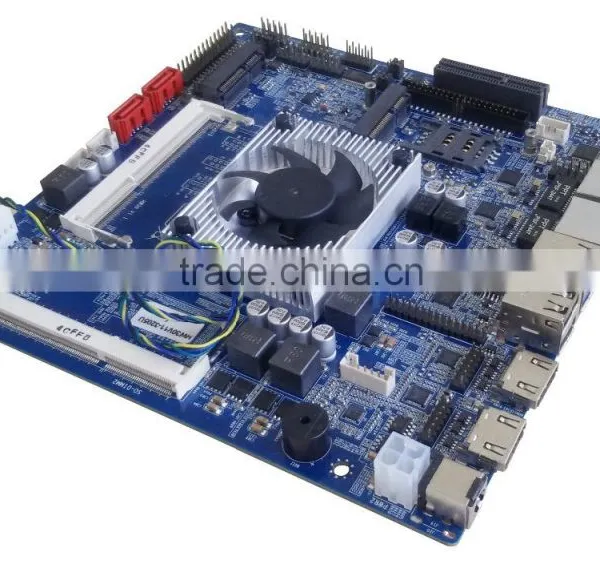

Mini itx motherboard Pictures

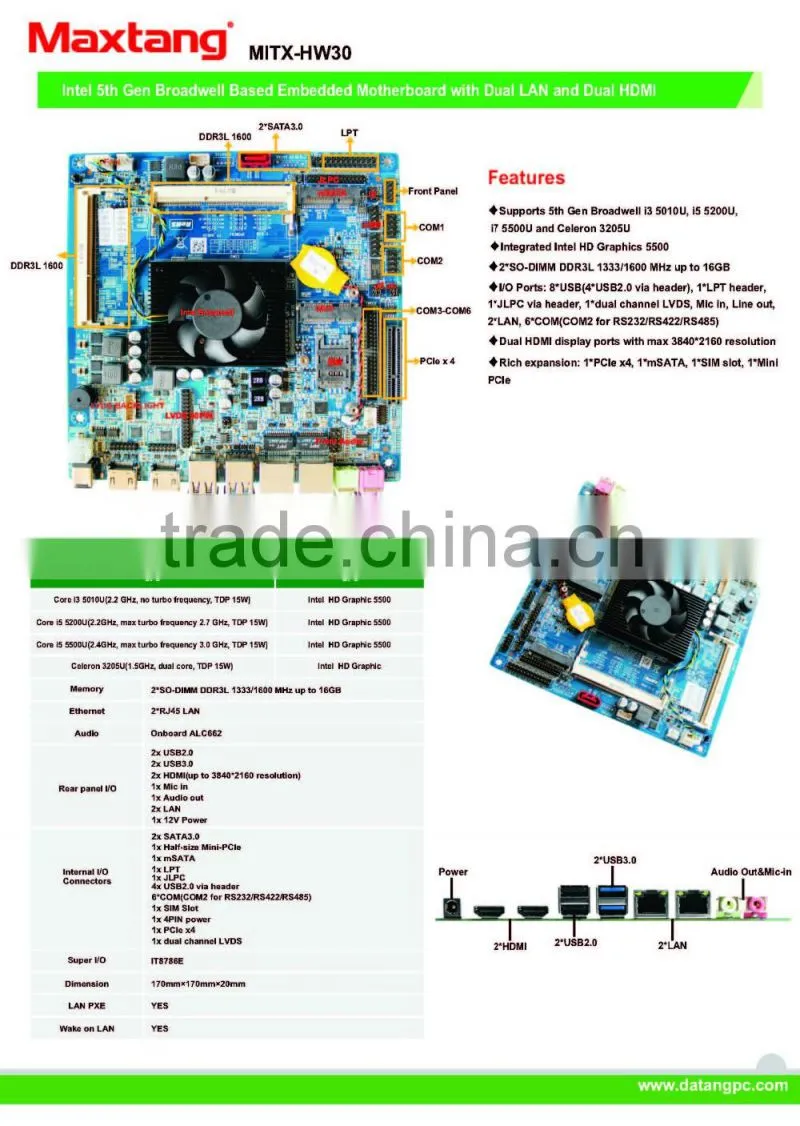

newly arrived the 5th Gen Broadwell mini motherboard with I3-5010U I5-5200 I7-5500U 1 LPT Port support dual channel LVDS

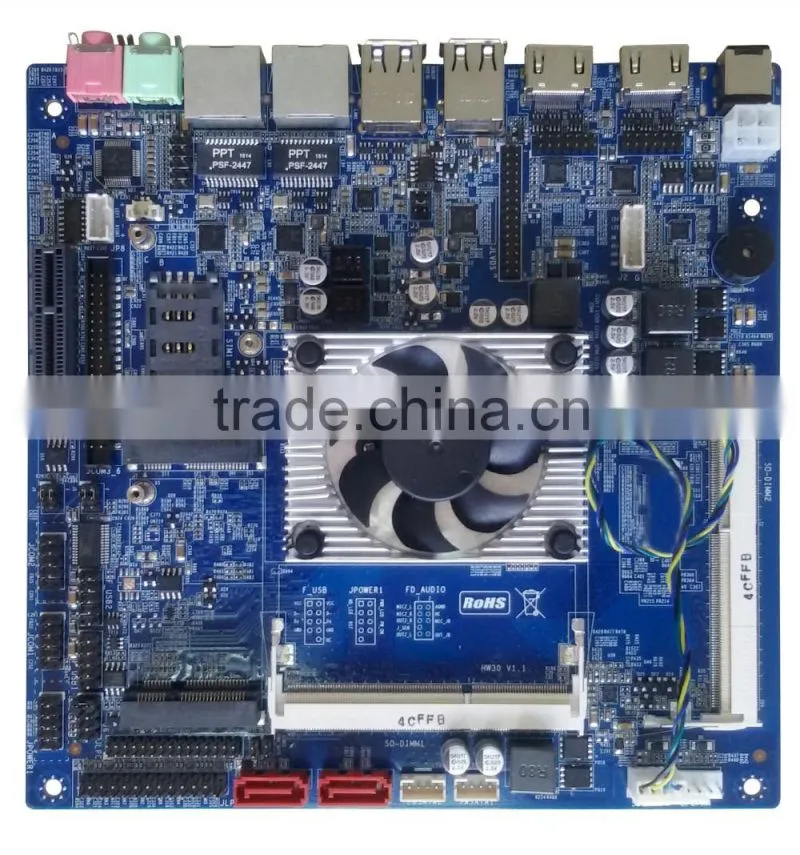

newly arrived the 5th Gen Broadwell mini motherboard with I3-5010U I5-5200 I7-5500U 1 LPT Port support dual channel LVDSnewly arrived the 5th Gen Broadwell mini motherboard with I3-5010U I5-5200 I7-5500U 1 LPT Port support dual channel LVDS
