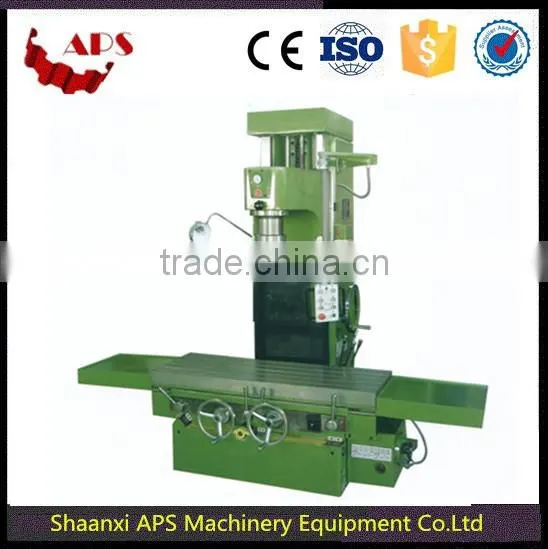

Vertical Fine Boring Machine T7220D
Charicteristics
The machine is mainly used for fine boring high accurate
holes of cylinder body and engine sleeve also for other
accurate holes, it's can used for milling surface of
cylinder.The machine can be used to boring milling,
drilling, reaming.
*The table longitudinally and latitudinal moving devices;
*The workpiece fast centering device;
*Boring measuring device;
*The table longitudinal moving
*Digital read-out device(user quest).
*Motor driving of table move-out;
Specifications
1.Max.Boring Diameter:dia200mm
2.Max.boring Depth:500mm
3.Milling cutter-head Diameter:250mm
4.Max.milling Area(LxW):850x250mm/780x315mm
5.Spindle speed Range:53-840rev/min
6.Spindle Feed Range:0.05-0.20mm/rev
7.Distance from spindle Axis Carriage Vertical plane:315mm
8.Table Longitudinal Travel"1100mm
9.Table Longitudinel feed speed:55,110mm/min
10.Table Longitudinal quick move speed:1500mm/min
11.Table Latitudinal Travel:100mm
12.Boring Dimension accuracy:1T7
13.Milling Dimension accuracy:1T8
14.Rundness:0.005
15.Cylingricity:0.02/300
16.Boring Roughness:Ra1.6m
17.Milling Roughness:Ra1.6-3.2m
18.Overall Dimensions(LxWxH):2610x1655x2285mm
19.N.W/G.W:3800/4200KGS
20.Packing Dimensions(LxWxH):1850x1800x2620mm
