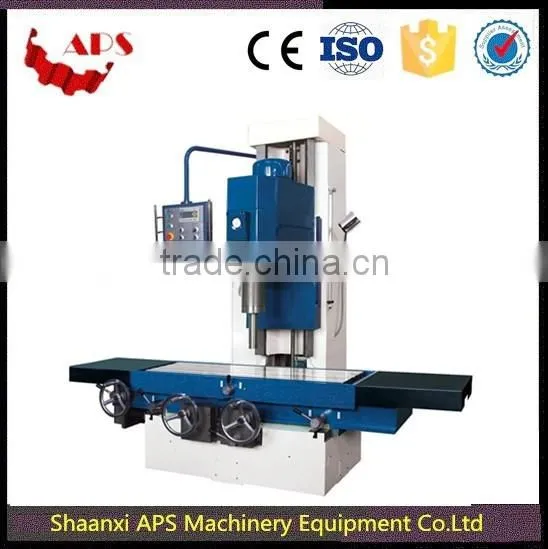

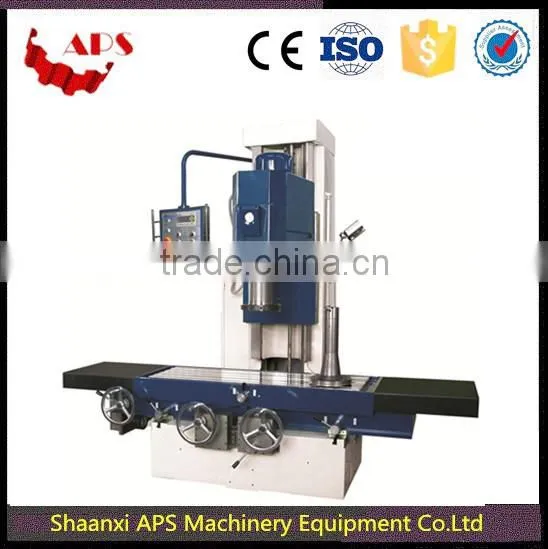

Vertical Fine Boring &Milling MachineTX170,200,250A
Charicteristics
Stepless of spindle turning ,feeding and table travelling
Rotating speed and feed of spindle as well as the movement of worktable is free—setup, automatical retuming of spindle can be realized
Longitudingal and cross movement of table
Complete set of accessories of boring, milling, drilling & reaming and easy exchange
Tool fast centering device
Tool measuring device
Boring depth control device
Table with digital readout for jig borer machine
Specifications
ITEMS |
| TX170A | TX200A | TX250A | ||
Max. boring diameter | Mm | φ170 | φ200 | φ250 | ||
Max. boring depth | Mm | 400 | 500 | 500 | ||
Max.milling area | Mm | 400x1000 | ||||
Max. drilling& reaming diameter | Mm | φ30 | ||||
Spindle speed | r/min | 120-860 | ||||
Feeding of the spindle | Mm/min | 14-900 | ||||
Rapid moving speed of the spindle | Mm/mim | 900 | ||||
Spindle travel | Mm | 700 | ||||
Distance between spindle end face and table | Mm | 0-700 | ||||
Distance between spindle axis and carriage vertical plane | Mm | 365 | ||||
Longitudinal feed of worktable | Mm/mim | 32-1350 | ||||
Rapid moving speed of the table longitudinal travel | Mm/mim | 1350 | ||||
Max. longitudinal travel of the working table | Mm | 1500 | ||||
Max. cross travel of the working table | Mm | 200 | ||||
Worktable size(W*L) | Mm | 500*1250 | 500*1500 | 500*1500 | ||
Dimensional precision of boring hole |
| H7 | ||||
Machining precision | Roundness | Mm | 0.005 | |||
Cylindricity | 0.01/300 | |||||
Milling flatness | 0.10 | |||||
Surface roughness | Boring | Um | Ra2.5 | |||
Milling | Ra3.2 | |||||
Main motor power | Kw | 5.5 | ||||
Overall dimensions (L*W*H) | Cm | 260*163*230 | ||||
Packing dimensions(L*W*H) | Cm | 225*190*228 | ||||
N.W./G..W. | kg | 3300/3600/ | 3500/3800 | 3500/3800 | ||
Remark | You can buy relative accessories to upgrade your machine. | |||||
