Home > Manufacturing & Processing Machinery > Machine Tools > Honing Machine > NEW,Vertical Fine Honing Machine THM170

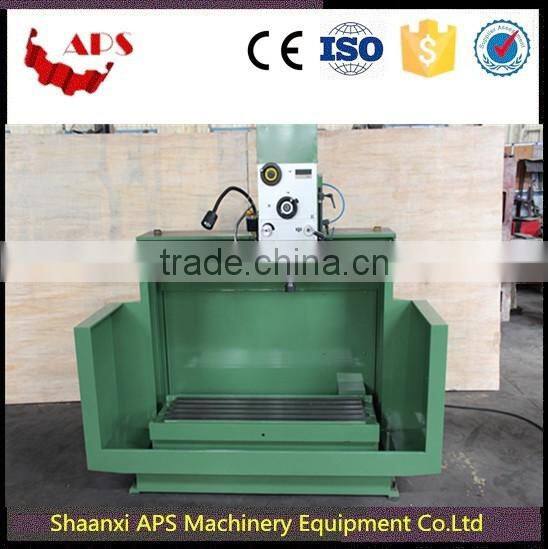

NEW,Vertical Fine Honing Machine THM170

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Brand Name:

APS

Model Number:

THM170

Contact Supplier Request Quote Chat Now

Shaanxi APS Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Brand Name APS

Model Number THM170

CNC or Not Normal

Voltage 220V/380V/415V

Certification ISO9001/CE

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Vertical Fine Honing Machine THM170

Characteristics:
1. The spindle adopts the stepless variable speed for its reciprocating motion and rotation.

2. Short-stroke honing can be easily realized at any position within the travel of spindle to conveniently revise the workpiece.

3. Diameter of the honing head can be optionally changed during honing.

4. The spindle box is provided with pneumatic system for its convenient and flexible movement and easy centering.

5. Frame type worktable can realize up-down motion and rotation as well as the machining of v-shaped block and any other complicated workpiece even without the special fixture.

Main specifications

Model	THM170
Max honing diameter	Φ170 mm
Max honing depth	300 mm
Spindle rotating speed	100-300 rpm
Roundness of honing hole	0.0025mm
Cylindricity of honing hole	0.008
Roundness of honing hole surface	Ra0.2ua
Spindle head longitudinal stroke	1100 mm
Spindle head transversal stroke	80 mm
Max load of worktable	200 kgs
Spindle motor	1.1kw
Hydraulic plant motor	1.5kw
Electropump power	90w
Spindle alternative motion speed	0-18 m/min
Overall dimensions(L×W×H)	1800×1300×2200 mm
Packing dimensions(L×W×H)	2220×1640×2290 mm
.W./G.W.	1200 /1400 kg
