Home > Manufacturing & Processing Machinery > Machine Tools > Boring Machine > NEW,Vertical Fine Boring Machine T7220C

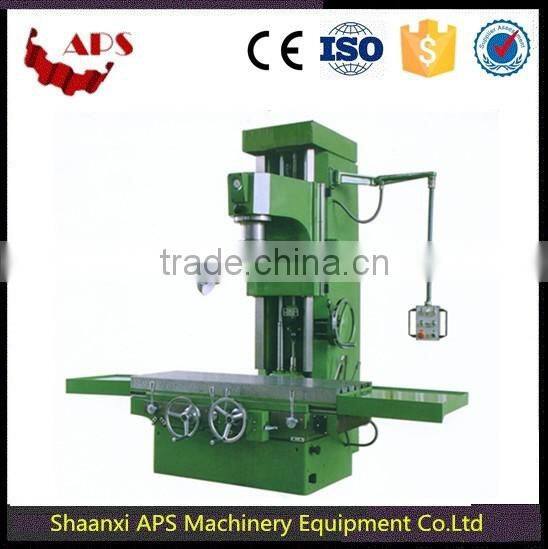

NEW,Vertical Fine Boring Machine T7220C

US$ 5,000 - 12,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

Normal

Brand Name:

APS

Contact Supplier Request Quote Chat Now

Shaanxi APS Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not Normal

Brand Name APS

Model Number T7220C

Voltage 110/220/380/440

Certification ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Vertical Fine Boring Machine T7220C

Charicteristics

T7220C is mainly used to bore high accurate holes of cylinder body and engines sleeve and other accurate holes. It can used for milling surface of cylinder.The machine can be used for boring,milling,drilling,reaming

The table longitudinal and cross moving device;

The workpiece fast centering device;

Boring measuring device;

Also provides optional digital readout for the table's longitudinal and cross moving accessories to serve the users.

Specifications

Model		T7220C
Max. boring Diameter		F200mm
Max. Boring Depth		500mm
Diameter of Milling Cutter Head		250mm (315mm is optional)
Max .Milling Area (L x W)		850x250mm (780x315mm)
Spindle Speed Range		53-840rev/min
Spindle Feed Range		0.05-0.20mm/rev
Spindle Travel		710mm
Distance from Spindle Axis to Carriage Vertical plane		315mm
Table Longitudinal Travel		1100mm
Table Longitudinal feed speed		55,110mm/min
Table Longitudinal quick move speed		1500mm/min
Table cross travel		100mm
Machining accuracy	Dimension Accuracy	1T7
	Roundness	0.005
	Cylindricity	0.02/300
Boring roughness		Ra1.6
Milling roughness		Ra1.6-3.2
