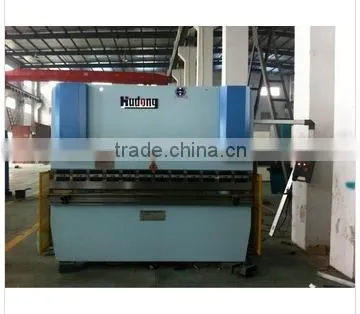

NC Hydraulic Press Brake

NC Hydraulic Press Brake thumbnail-1
NC Hydraulic Press Brake photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
HUDUAN
Contact Supplier Request Quote Chat Now
Maanshan Hudong Heavy Industry Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name HUDUAN
Model Number 80T/2500
Machine Type Press Brake
Raw Material Steel Bar
Material / Metal Processed Carbon Steel
Power Cnc
Automation Automatic
Extra Services Machining
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

NC Hydraulic press brake

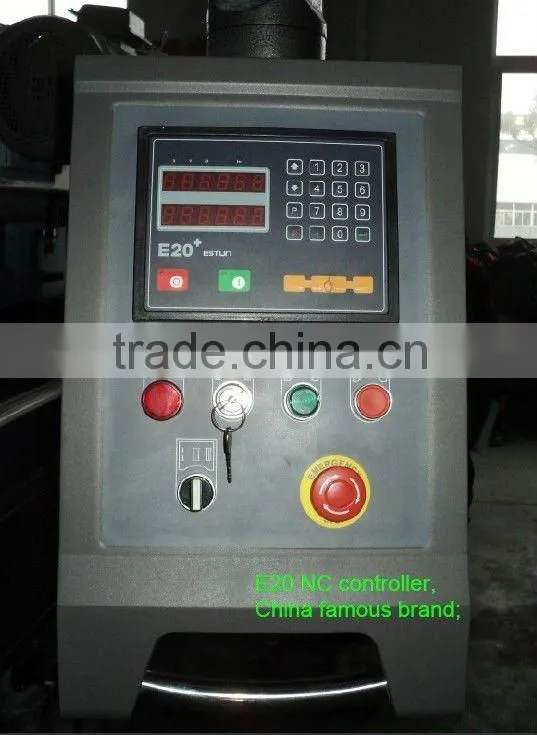

1:NC Controller,E20+ NC System
2:CE,ISO
3:Back gauge,stroke can be
motorized adjusted &displaye

NC Hydraulic press brake
1:NC Controller,E20+ NC

2:CE,ISO certificate
3:Back gauge,stroke can be motorized adjusted &displayed ;

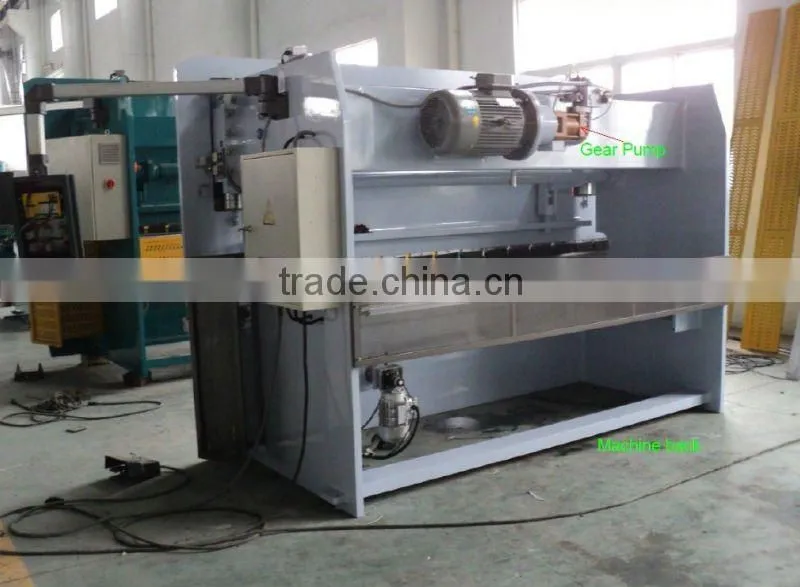

4:Gear Pump ,low noise;





  Hydraulic press brake with E18 NC control

No.

Name

Brand

Location

1

Motor

Dangpeng

Zhenjiang, China

2

Electrics

TE/OMROM

Germany brand

3

Oil Cylinder

Wuyang

Maanshan, China

4

Seal ring



DZ

Taiwan

5

Pump

Hangfa

Shanghai, China

6

Hydraulic system

Omega

Jining, China

7

Two axes Controller

E200

Estun,China

8

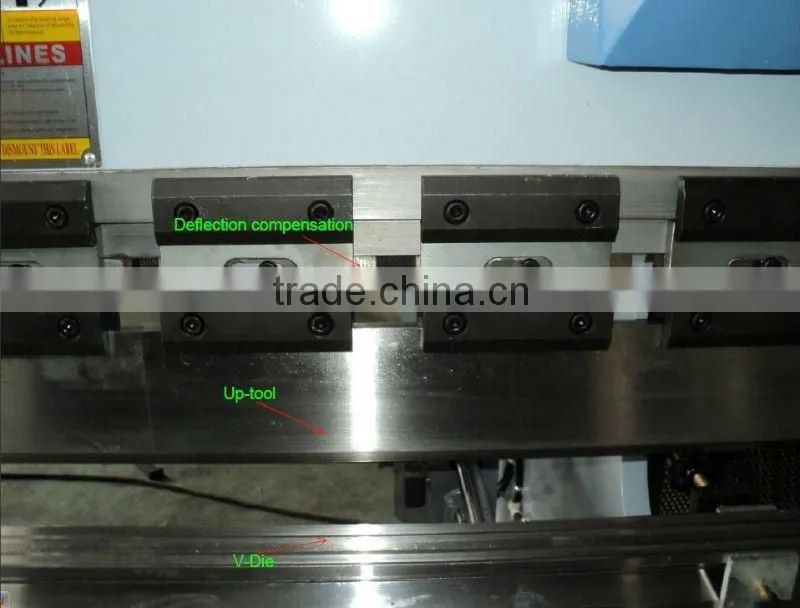

Punch and Die

Xinming / Lianmeng

Maanshan, China

9

Pipe connector

EMB

Germany

10

Foot Switch

Karcon

South Korea

11

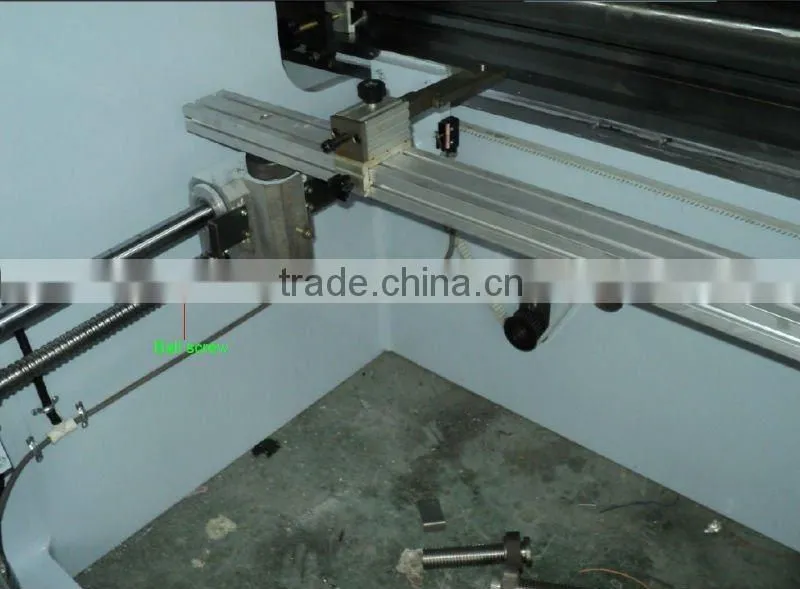

Ball lead screw

HIWIN

Taiwan

12

Straight-line guide

HIWIN

Taiwan





Model:  80T/2500

No



Name

Amount

Unit

1

Nominal pressure

800

KN

2

Poles distance

2,000

mm

3

Throat depth

250

mm

4

Slipper stroke

120

mm

5

Max. opening height

350

mm

6

Slipper stroke adjustment

100

mm

7

Diameter of cylinder

160

mm

8

Main motor power

5.5

kw

9

Oil pump power

10

ml/r

10

System pressure

22

Mpa

11

Wallboard thickness

35

mm

12

Slipper thickness

40

mm

13

Machine weight

5,000

Kg

14

Workbench length

2,500

mm

15

Dimension (LxWxH)

2,600x1,700x2,320

mm
