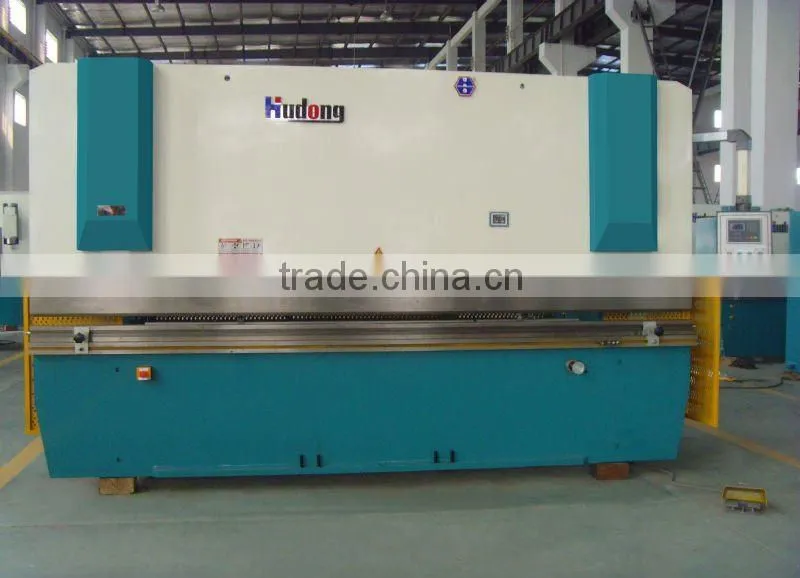

Hydraulic Manual Sheet Metal Bending Machine

Hydraulic Manual Sheet Metal Bending Machine thumbnail-1
Hydraulic Manual Sheet Metal Bending Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
Hudong
Contact Supplier Request Quote Chat Now
Maanshan Hudong Heavy Industry Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name Hudong
Model Number WD67Y-200T/4000
Machine Type Press Brake
Raw Material Sheet / Plate Rolling
Material / Metal Processed Stainless Steel
Power Hydraulic
Automation Manual
Extra Services End Forming
Certification ISO 9001:2000
After-sales Service Provided Engineers available to service machinery overseas



      Hydraulic manual sheet metal bending machine





Technical data of manual sheet metal bending machine :



Model Nominal pressure
(KN)		 Length of table
(mm)		 Distance between housings
(mm)		 Throat depth
(mm)		 Stroke
(mm)		 Max. open height
(mm)		 Motor power
(KW)		 Weight
(Kg)		 Overall dimension
L×W×H
(mm)
40/2200 400 2200 1850 250 100 350 5.5 2400 2260×1200×1900
40/2500 400 2500 2150 250 100 350 5.5 2600 2560×1200×1900
50/2500 500 2500 2150 250 100 350 5.5 3000 2560×1200×1900
63/2500 630 2500 2150 250 120 350 5.5 3800 2560×1340×2200
63/3200 630 3200 2580 250 120 350 5.5 4600 3260×1340×2200
80/3200 800 3200 2580 320 120 350 7.5 5500 3260×1400×2300
80/4000 800 4000 2980 320 120 350 7.5 6100 4060×1400×2300
100/3200 1000 3200 2580 320 130 435 7.5 6700 3260×1480×2450
100/4000 1000 4000 2980 320 130 450 7.5 7800 4060×1480×2450
125/3200 1250 3200 2580 320 130 435 11 7300 3260×1520×2550
125/4000 1250 4000 2980 320 130 435 11 8200 4060×1520×2550
160/3200 1600 3200 2580 320 150 470 11 9800 3260×1600×2800
160/4000 1600 4000 3000 320 150 470 11 11400 4060×1600×2800
160/5000 1600 5000 4000 320 150 470 11 12800 5060×1700×2900
160/6000 1600 6000 5000 320 150 470 11 14600 6060×1700×3000
200/3200 2000 3200 2580 400 200 500 15 12900 3260×1600×2800
200/4000 2000 4000 3000 400 200 500 15 14600 4060×1600×2800
200/5000 2000 5000 4000 400 200 500 15 16600 5060×1700×2900
200/8000 2000 6000 5000 400 200 500 15 18800 6060×1700×3000
250/4000 2500 4000 3000 400 200 560 18.5 16500 4060×1700×3000
250/5000 2500 5000 4000 400 200 560 18.5 17800 5060×1700×3100
250/6000 2500 6000 5000 400 200 560 18.5 19700 6060×1800×3200
300/4000 3000 4000 3000 400 250 560 22 20000 4060×2000×3000
300/5000 3000 5000 4000 400 250 560 22 23000 5060×2000×3100
300/6000 3000 6000 5000 400 250 560 22 26500 6060×2100×3200
600/4000 4000 4000 3000 400 250 570 22 23600 4060×2000×3100
400/5000 4000 5000 4000 400 250 570 22 27000 5060×2000×3200
400/6000 4000 6000 5000 400 250 570 22 30600 6060×2100×3300
500/4000 5000 4000 3000 400 250 590 37 27000 4060×2300×3500
500/5000 5000 5000 4000 400 250 590 37 31000 5060×2300×3500
500/6000 5000 6000 5000 400 250 590 37 35000 6060×2300×3600
600/4000 6000 4000 3000 400 250 610 45 31000 4060×2400×3600
600/5000 6000 5000 4000 400 250 610 45 36000 5060×2400×3600
600/6000 6000 6000 5000 400 250 610 45 41000 5060×2500







Machine key components list of manaul sheet metal bending machine :



No

Name

Origin

1

Asynchronous motor

Maanshan ,China

2

Relay

Schneider, France

3

Transformer

jiuchuan

4

AC contactor

Schneider, France

5

Circuit Breakers

Schneider, France

6

Servo motor

Taiwan

7

Gear pump

Japan

8

Sealing parts

Valqua ,Japan

9

Hydraulic Integrated Systems

America

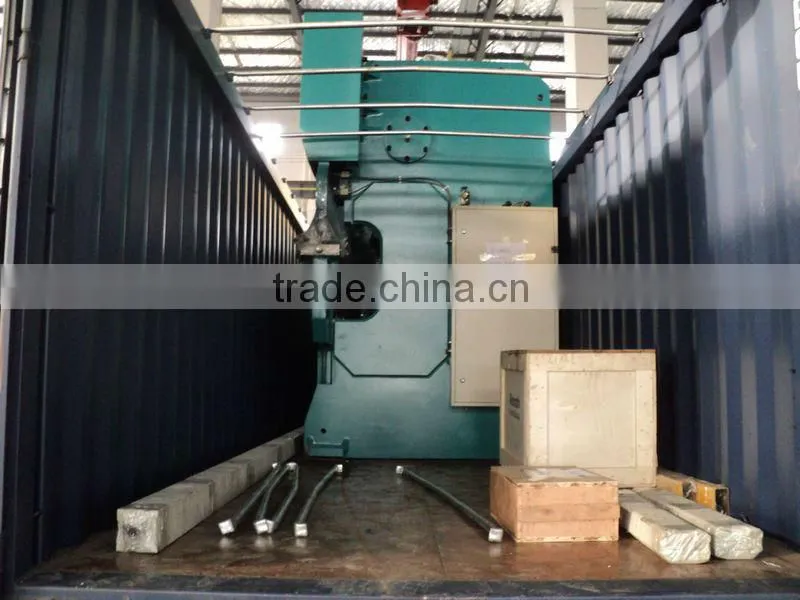

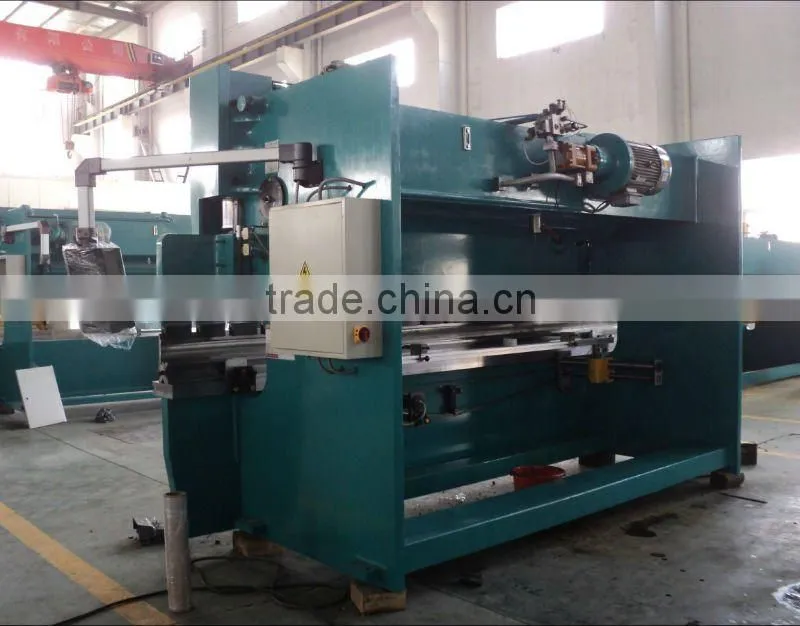

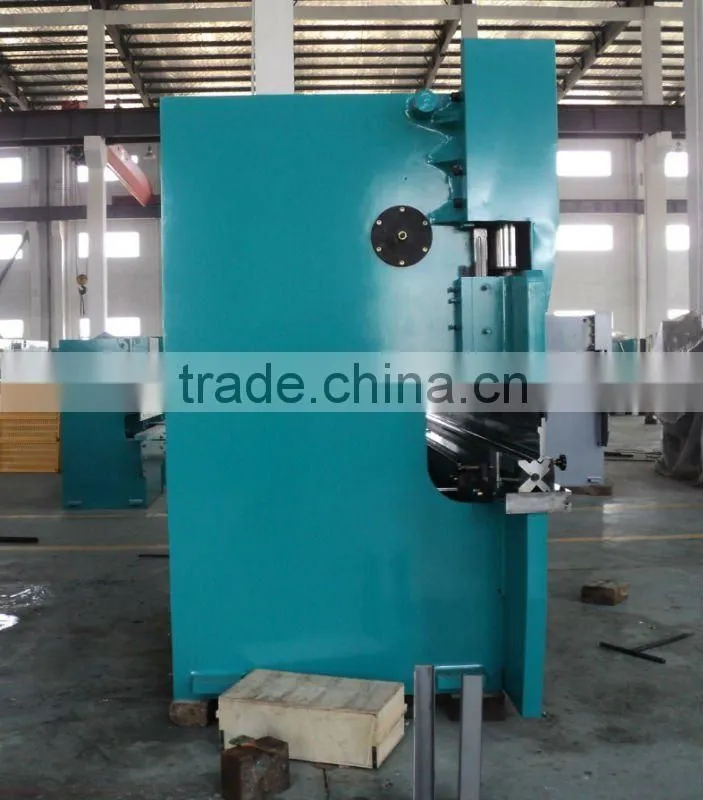

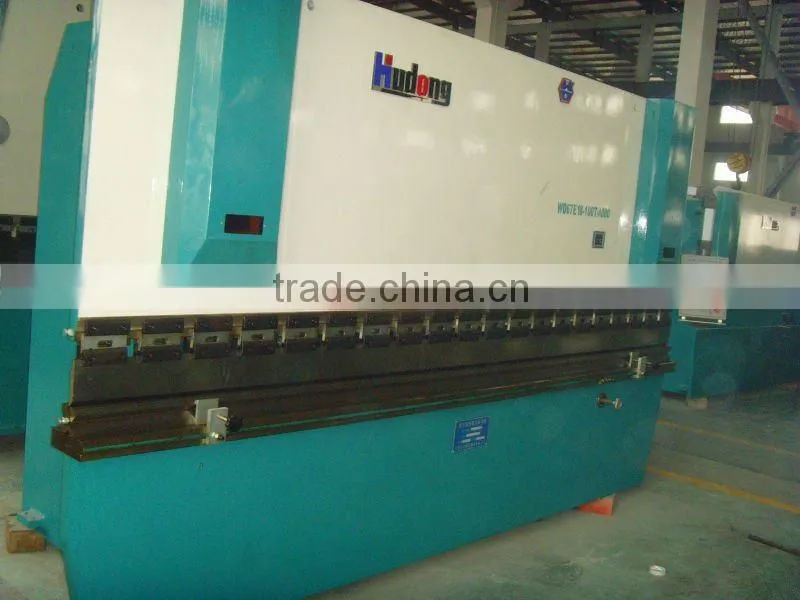

Hydraulic manual sheet metal bending machine          Hydraulic manual sheet metal bending machineHydraulic manual sheet metal bending machineHydraulic manual sheet metal bending machine                               Hydraulic manual sheet metal bending machine
