Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > ELECTRO-HYDRAULIC SYNCHRONOUS PRESS BRAKE IN TANEM

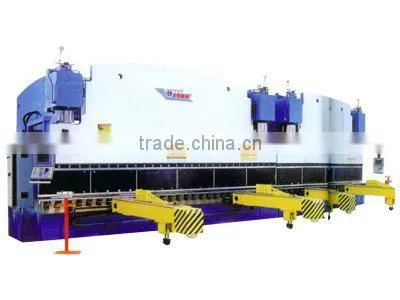

ELECTRO-HYDRAULIC SYNCHRONOUS PRESS BRAKE IN TANEM

Name: ELECTRO-HYDRAULIC SYNCHRONOUS PRESS BRAKE IN TANEM
Brand: HUDUAN
SKU: 129704715
Availability: InStock

ELECTRO-HYDRAULIC SYNCHRONOUS PRESS BRAKE IN TANEM thumbnail-1

ELECTRO-HYDRAULIC SYNCHRONOUS PRESS BRAKE IN TANEM photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Anhui, China

Brand Name:

HUDUAN

Contact Supplier Request Quote Chat Now

Maanshan Hudong Heavy Industry Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Anhui, China

Brand Name HUDUAN

Model Number 500T/6000

Machine Type Press Brake

Raw Material Steel Bar

Material / Metal Processed Carbon Steel

Power Cnc

Automation Automatic

Extra Services Cut To Length

Certification ISO 9001:2000

After-sales Service Provided No overseas service provided

Specifications

1.CE,ISO,CQC Certification
2.BOSCH Hydraulic system
3.High performance
4.High quality with good price
5.Easily operate

The whole structure of the hydraulic press brake:

- Totally European design,streamlined looking,Frame: consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily

-Welded structure: the stress of the welded parts can be eliminated by vibration; so this forging press gives high accuracy.
- High accuracy,high efficiency,simple and convenient operation,good performance, favorable price and best service.

1. Hydraulic system:

- Adopt integrated hydraulic control system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box.

- Every complete working cycle can be achieved through the control of hydraulic valve.The remote adjustment valve can adjust the working pressure at the right side of the wall board.

-All seals in cylinder is imported,the most famous brand,good quality and high performance

- Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly

2. Electrical system and the safety interlock:

-Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet.

-Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.

- The machine by the European Union CE certification and ISO quality system certification

3. Synchro control system:

- Slide syncho system: adopt steel torsion bar synchro system, simple in structure and high in accuracy
- 2 ends of slide has 2 synchro fork which make,The system uses upper die compensation to improve the brake precision.
-The worktable adopts the particular design,reducing the crowning distortion amount of lower tool effectively.

4. Ram structure:

-Upper stroke design for bending,low noise,stable operating situation.

- Can move the ram up slowly,which allows the operator to control work piece conveniently.

-Universal fixing-surface of the upper tool can be meeting with the clamping requirement of the tool farthest.

- Separate sectional clamping bars are supplied as standard equipment in order to securely fasten short dies.

5.Features and Advantages:

-Choose two WF67K electro-hydraulic synchronization with the same specifications, equip with the double linkage synchronizer.

-Machinable features artifacts of two machines linked by electro-hydraulic synchronized CNC control, synchronization performance,high accuracy;

-The two machines can also operate independently,improve production efficiency.

-workbench set the mechanical lever deflection compensation device to achieve effective compensation without blind spots,improve the bending accuracy,and ensure the long-term stability.

-Can automatically according to user demand for pre-prouction feeding rack which is controlled by the CNCsystem.
