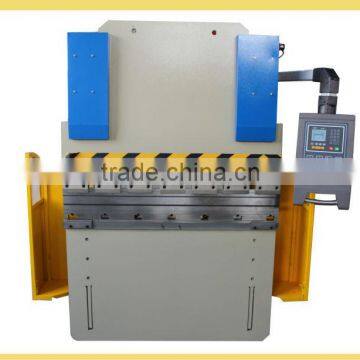

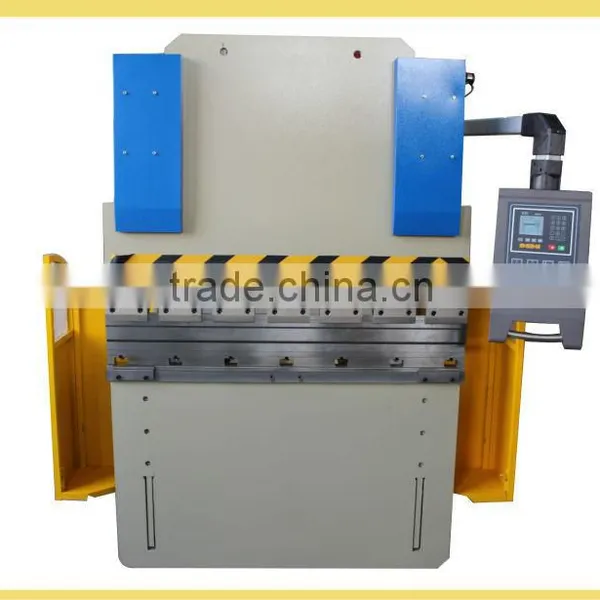

Manual Sheet Metal Press Brake30t-1300

Specifications

30Tx1300 hydraulic NC press brake

Introduction

1. press brake Adopt a steel plate welded structure, tempering and vibration aging treatment, to eliminate the deformation caused by the welding stress and work stress, to ensure the accuracy of the machine to maintain.
Fuselage overall structure, easy to transport, ease of processing, to ensure that the machine precision of the machine.
Important parts of the body, slider, etc. are analyzed using ANSYS finite element analysis software to ensure the reliability of the machine.
Both ends of the cylinder placed on both sides of the column, direct drive slider; machine structure is simple and good rigidity.The slider is forced to synchronize the torsion bar, and can withstand a certain degree of partial load.

  brake use Standard punch and die.standard with a multi vee bottom die and punch that is attached to the upper ram with quick change punch holders.
.
3. Our press brake adopt second generation CNC back gauge.,stable and accuracy is good than older back gauge.

Main configurations:

1.E21NC controller: ESTUN

2.Hydraulic valve:atos, Italy

3. Gear Pump: Hangfa, China

5.Electrical Component: Schneider,France + Omron , Japan

6.Main Motor and AC motor: Shuangta, china

7. High resistance temperature seal ring: NOK, Japan

8. Foot switch: Karcon, South Korea

9.Pipe connector:EMB,Germany+ parker,USA

10.axis guides, ball screw: HIWIN ,Taiwan

11. High pressure oil tube
