New Design E21s Controller Steel Plate Bending Machine

New Design E21s Controller Steel Plate Bending Machine thumbnail-1
New Design E21s Controller Steel Plate Bending Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
Huduan
Contact Supplier Request Quote Chat Now
Maanshan Hudong Heavy Industry Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name Huduan
Model Number WD67YE21-100T/2500
Machine Type Press Brake
Raw Material Steel Bar
Material / Metal Processed Stainless Steel
Power Hydraulic
Automation Automatic
Extra Services End Forming
Certification ISO 9001:2000
After-sales Service Provided Engineers available to service machinery overseas

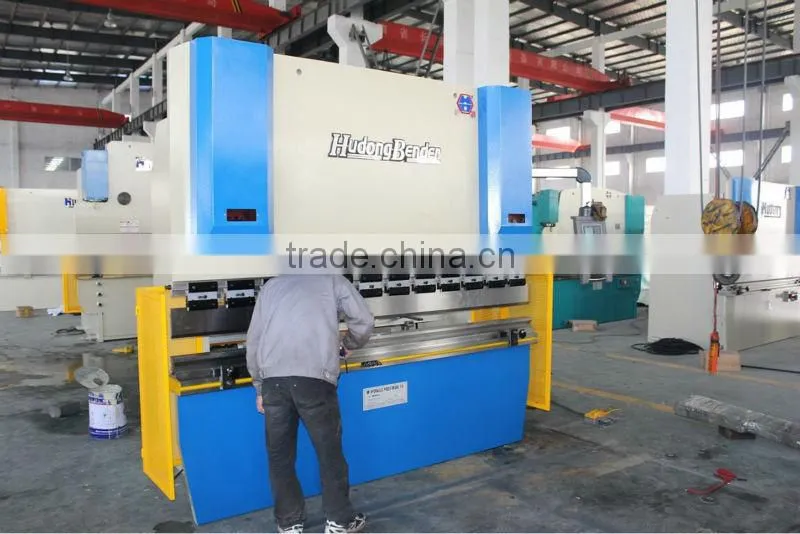

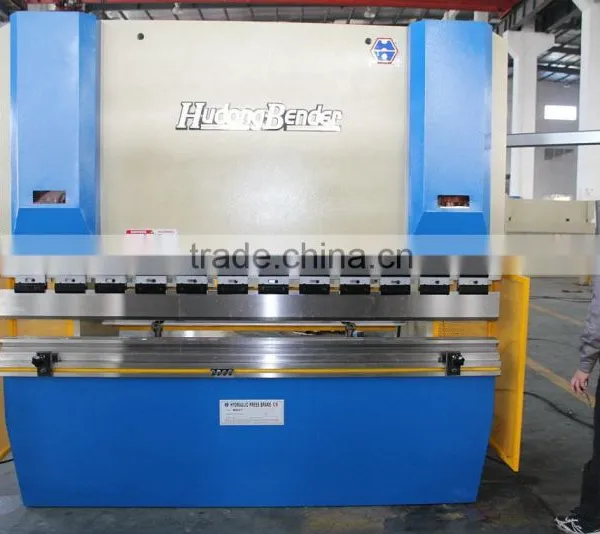

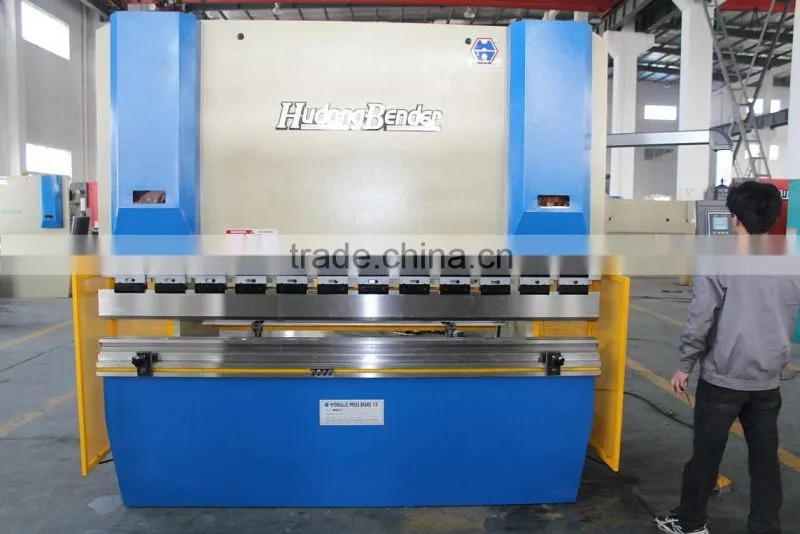

New design E21s controller steel plate bending machine



Standard fast clmaping
Bosch hydraulic valve
Professional manufacturer
Competitive price
High quality with ISO9001, CE



1. A hydraulic valve: Bosch group.
2. Fuel tank: seals tripod base, rolling technology, with high wear resistance.
3  Adopt a steel plate welded structure, tempering and vibration aging treatment, to eliminate the deformation caused by the welding stress and work stress, to ensure the accuracy of the machine to maintain.
4. Fuselage overall structure, easy to transport, ease of processing, to ensure that the machine precision of the machine.
5. Important parts of the body, slider, etc. are analyzed using ANSYS finite element analysis software to ensure the reliability of the machine.

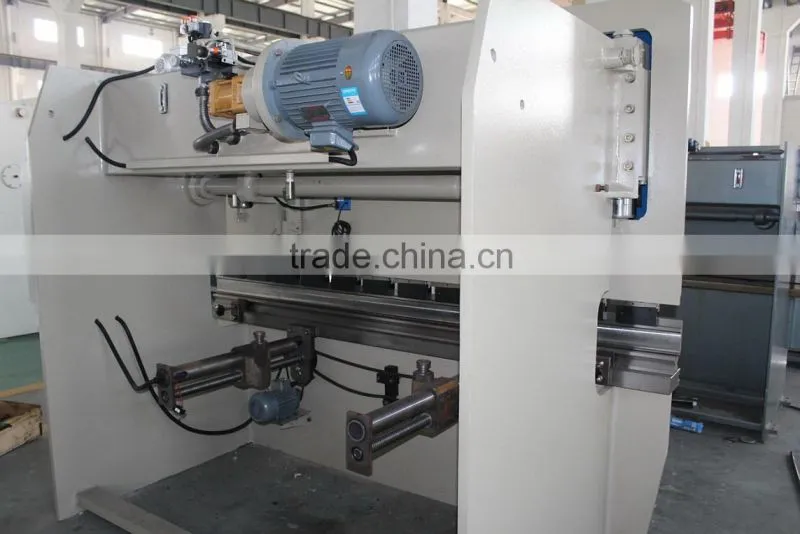

6. Both ends of the cylinder placed on both sides of the column, direct drive slider; machine structure is simple and good rigidity.
The slider is forced to synchronize the torsion bar, and can withstand a certain degree of partial load.
7  on the mold is equipped with precision compensation agencies, the workpiece can obtain high bending accuracy

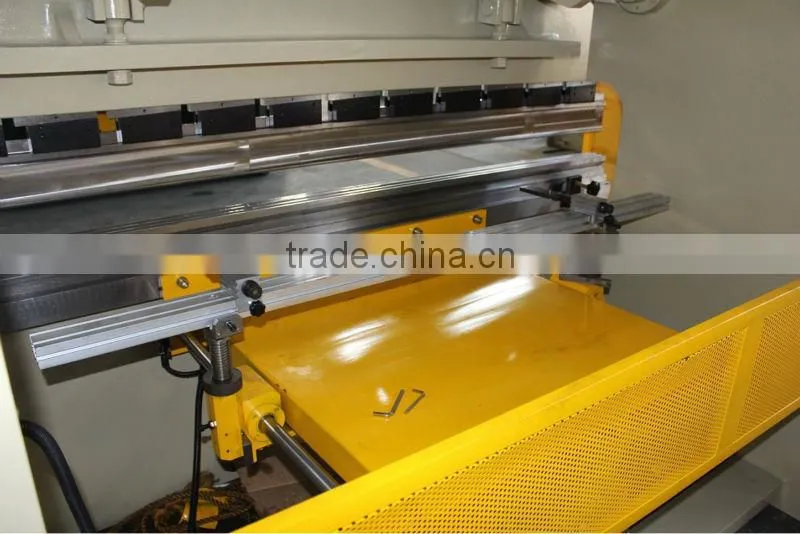

8. Back gauge slide stroke are displayed on the monitor.
9. This system can be realized slider rapid decline, slow decline, Work Speeds bending, quick return, and up down the process of slider emergency stop such action.
10. CNC press brake Electrical controls are centralized and reliable, as follows:
Power facilities are located within the body, through the control panel button operation to control and achieve.
Has a foot switch, the bending action through its direct, convenient and quick.
Motor overload and short circuit protection, through the air switch.

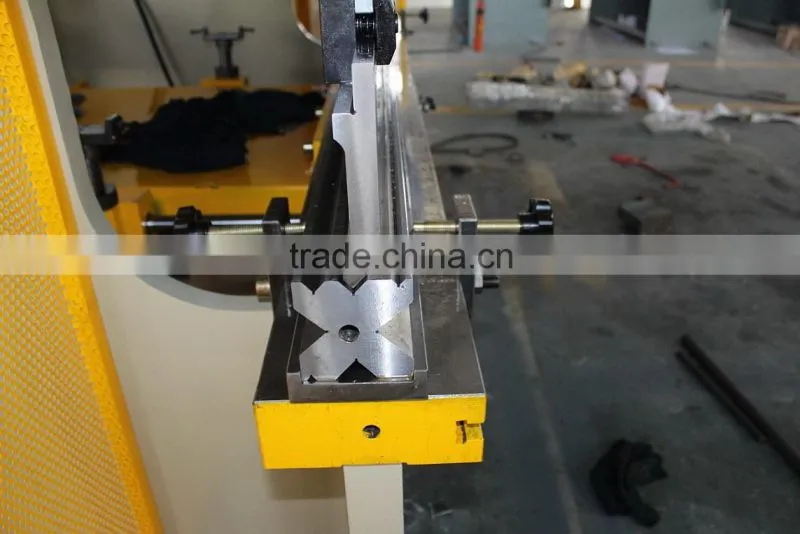

11. CNC press brake Mold material: 60 steel. we can according to the customer  workpiece design mold







Control system        Netherlands  DELEM








Electrical elements   France-Schneider








Hydraulic system    Germany-Bosch Rexroth




Motor   Siemens




Servo motor and drive   Taiwan




Gear pump    Rexroth








Linear guides, Ball screw     Taiwan HIWIN








Seal ring    Japan NOK+ VALQUA




Oil tube union joint    Germany EMB+USA parker




Foot switch     South Korea Karcon




Fast clamping     Shanghai













WD67Y Series Technical Parameters



Model Nominal pressure
(KN)		 Length of table
(mm)		 Distance between housings
(mm)		 Throat depth
(mm)		 Stroke
(mm)		 Max. open height
(mm)		 Motor power
(KW)		 Weight
(Kg)		 Overall dimension
L×W×H
(mm)
40/2200 400 2200 1850 250 100 350 5.5 2400 2260×1200×1900
40/2500 400 2500 2150 250 100 350 5.5 2600 2560×1200×1900
50/2500 500 2500 2150 250 100 350 5.5 3000 2560×1200×1900
63/2500 630 2500 2150 250 120 350 5.5 3800 2560×1340×2200
63/3200 630 3200 2580 250 120 350 5.5 4600 3260×1340×2200
80/3200 800 3200 2580 320 120 350 7.5 5500 3260×1400×2300
80/4000 800 4000 2980 320 120 350 7.5 6100 4060×1400×2300
100/3200 1000 3200 2580 320 130 435 7.5 6700 3260×1480×2450
100/4000 1000 4000 2980 320 130 450 7.5 7800 4060×1480×2450
125/3200 1250 3200 2580 320 130 435 11 7300 3260×1520×2550
125/4000 1250 4000 2980 320 130 435 11 8200 4060×1520×2550
160/3200 1600 3200 2580 320 150 470 11 9800 3260×1600×2800
160/4000 1600 4000 3000 320 150 470 11 11400 4060×1600×2800
160/5000 1600 5000 4000 320 150 470 11 12800 5060×1700×2900
160/6000 1600 6000 5000 320 150 470 11 14600 6060×1700×3000
200/3200 2000 3200 2580 400 200 500 15 12900 3260×1600×2800
200/4000 2000 4000 3000 400 200 500 15 14600 4060×1600×2800
200/5000 2000 5000 4000 400 200 500 15 16600 5060×1700×2900
200/8000 2000 6000 5000 400 200 500 15 18800 6060×1700×3000
250/4000 2500 4000 3000 400 200 560 18.5 16500 4060×1700×3000
250/5000 2500 5000 4000 400 200 560 18.5 17800 5060×1700×3100
250/6000 2500 6000 5000 400 200 560 18.5 19700 6060×1800×3200
300/4000 3000 4000 3000 400 250 560 22 20000 4060×2000×3000
300/5000 3000 5000 4000 400 250 560 22 23000 5060×2000×3100
300/6000 3000 6000 5000 400 250 560 22 26500 6060×2100×3200
600/4000 4000 4000 3000 400 250 570 22 23600 4060×2000×3100
400/5000 4000 5000 4000 400 250 570 22 27000 5060×2000×3200
400/6000 4000 6000 5000 400 250 570 22 30600 6060×2100×3300
500/4000 5000 4000 3000 400 250 590 37 27000 4060×2300×3500
500/5000 5000 5000 4000 400 250 590 37 31000 5060×2300×3500
500/6000 5000 6000 5000 400 250 590 37 35000 6060×2300×3600
600/4000 6000 4000 3000 400 250 610 45 31000 4060×2400×3600
600/5000 6000 5000 4000 400 250 610 45 36000 5060×2400×3600
600/6000 6000 6000 5000 400 250 610 45 41000 5060×2500×3700




Company Information

   Maanshan Hudong Heavy Industry Machiney Manufacturing Co., Ltd. is a specialized company, designated by the nation to produce forging equipment, plate benders, plate shears, press machines and rolling benders, with a production history of more than 30 years.
