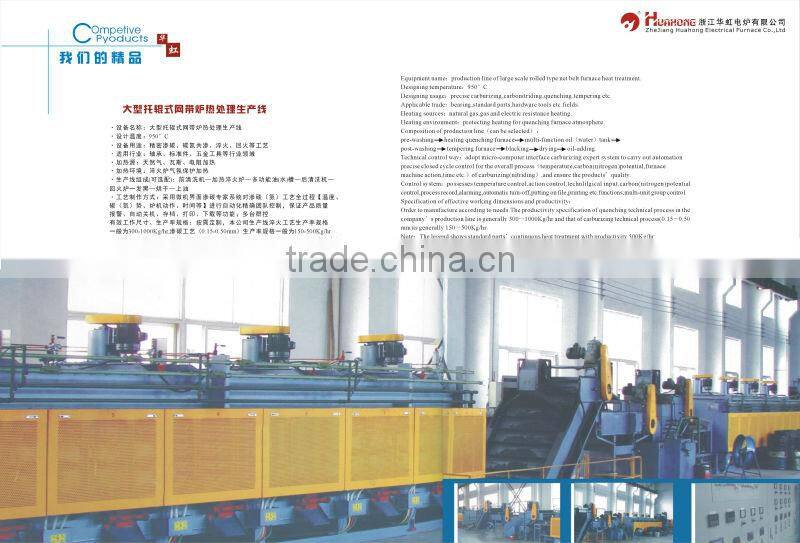

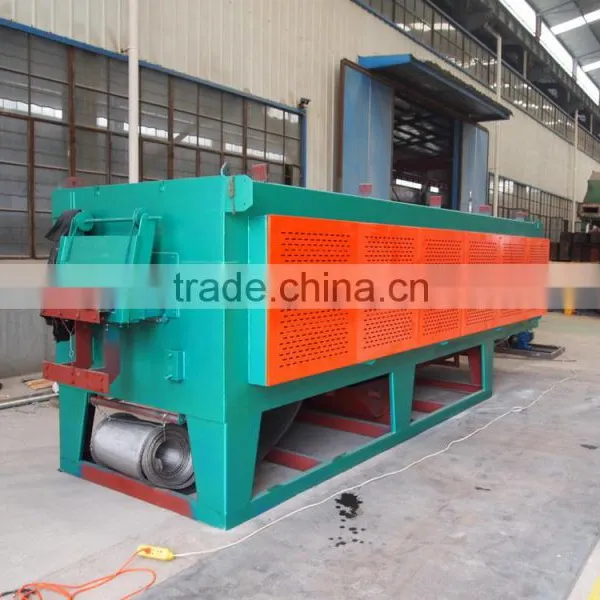

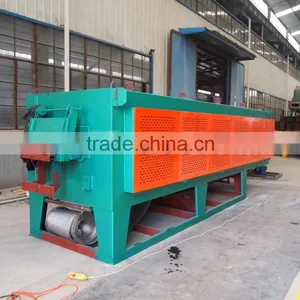

Roller-type mesh belt furnace without muffle

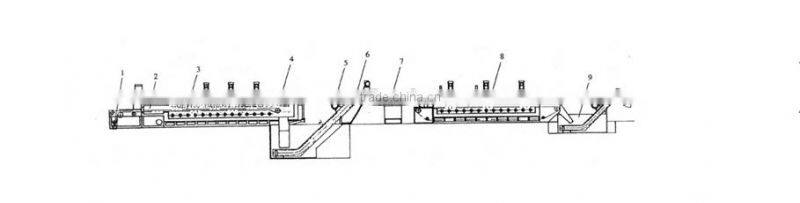

RCWM without muffle mesh belt furnace Line inclueding:
1. Feeding machine(choosing by yourself)
2.Vibration machine fabric
sh belt furnace
4.quenching oil tank
5.cleaning machine
6.tempering furnace etc
usage: batch mechanical parts quenching ,tempering ,carburizing etc heating treatment.
advantage:
1.Intelligent process,
2.Heating time closed-loop control,
3.Remote network monitoring,
4.Quenching intensity intelligent control,
5.Structure optimization,
6.Stable running efficient,
7.Clean energy saving
8.without muffle tank
9.good quality long life
application::Widely used for the mechanical parts of automobile fittings,fasteners,chains,bearings and tools etc. to realize the continuous heat-treatment operations of automatic loading,carburizing(or carbonitriding ),quenching,washing,tempering,black coating etc.The computerizing office management can be realized with computer control system equipped.
Main specifications and parameters:
| Item | Rated Power (KW ) | Rated temperature(°c) | dimensions of working area(mm) | Productivity(kg/h) |
| H-RCWM-1 | 120 | 950 | 400*6000*100 | 160-200 |
| H-RCWM-2 | 160 | 950 | 500*6000*100 | 180-250 |
| H-RCWM-3 | 220 | 950 | 600*6000*100 | 400-500 |
| H-RCWM-4 | 270 | 950 | 800*6000*100 | 500-650 |
| H-RCWM-5 | 260 | 950 | 600*8000*100 | 500-650 |
| H-RCWM-6 | 360 | 950 | 800*8000*100 | 600-750 |
| H-RCWM-7 | 410 | 950 | 800*10000*100 | 800-1000 |
| H-RCWM-8 | 560 | 950 | 1000*10000*100 | 1200-1400 |
| H-RCWM-9 | 600 | 950 | 1000*12000*100 | 1300-1500 |
| H-RCWM-10 | 600 | 950 | 1200*10000*100 | 1500-2000 |
| H-RCWM-11 | 760 | 950 | 1200*13500*100 | 2000-2500 |
Our products:

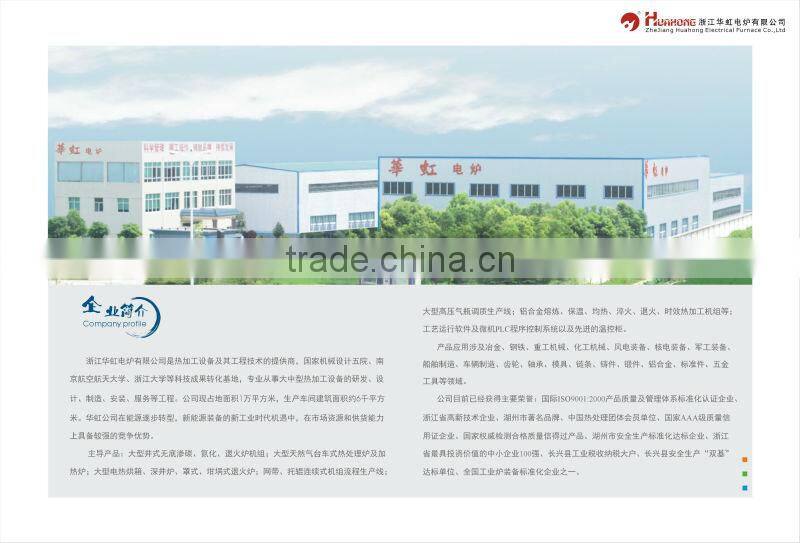

our factory:
