Home > Products > muffle continous belt quenching furnace > Continuous Mesh Belt Conveyor Furnace

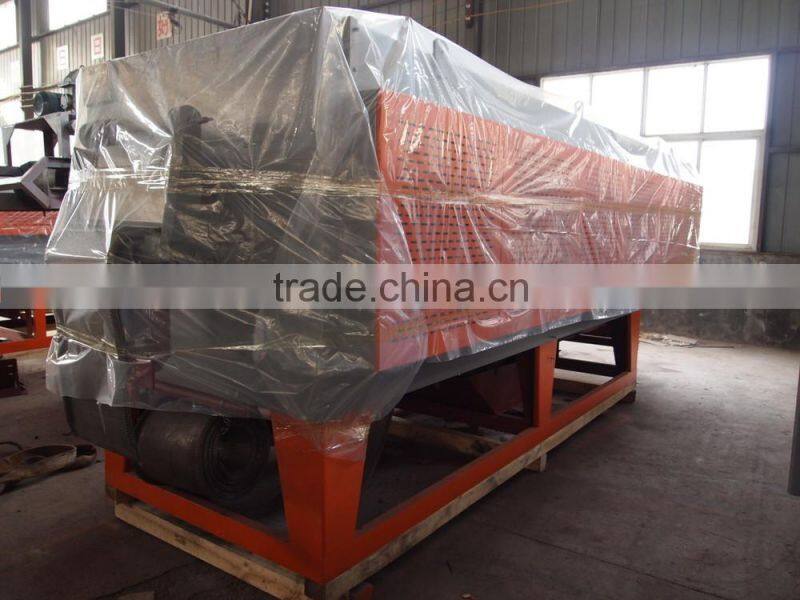

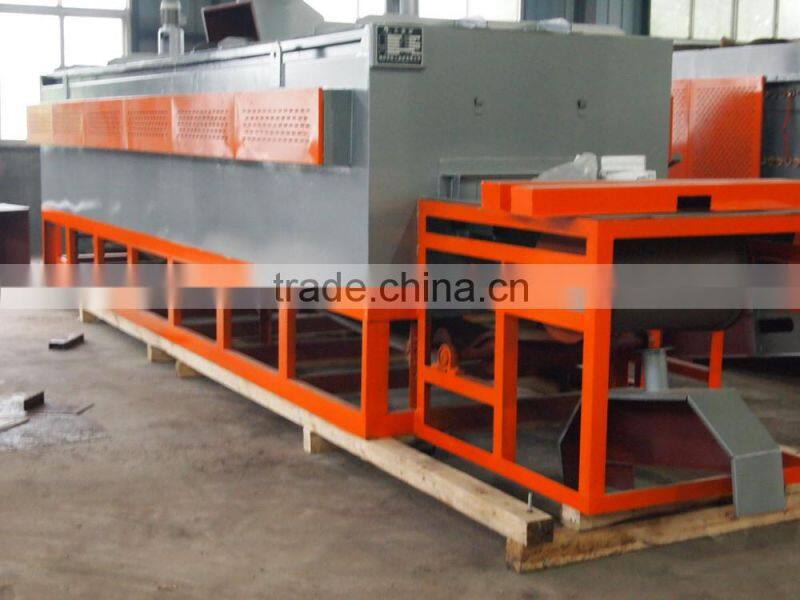

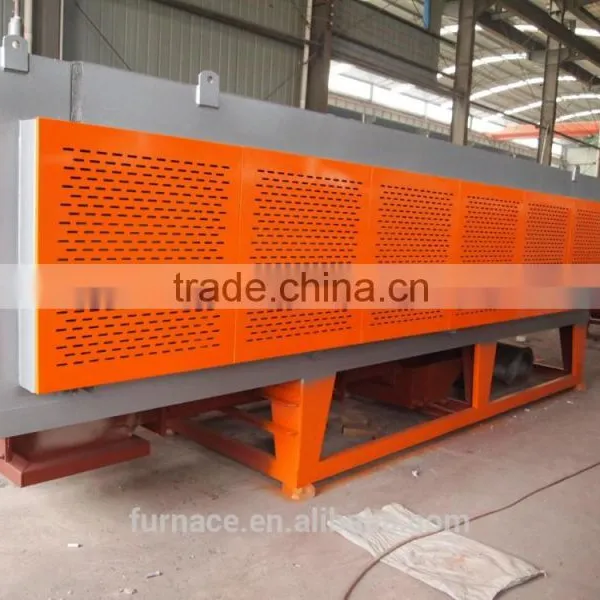

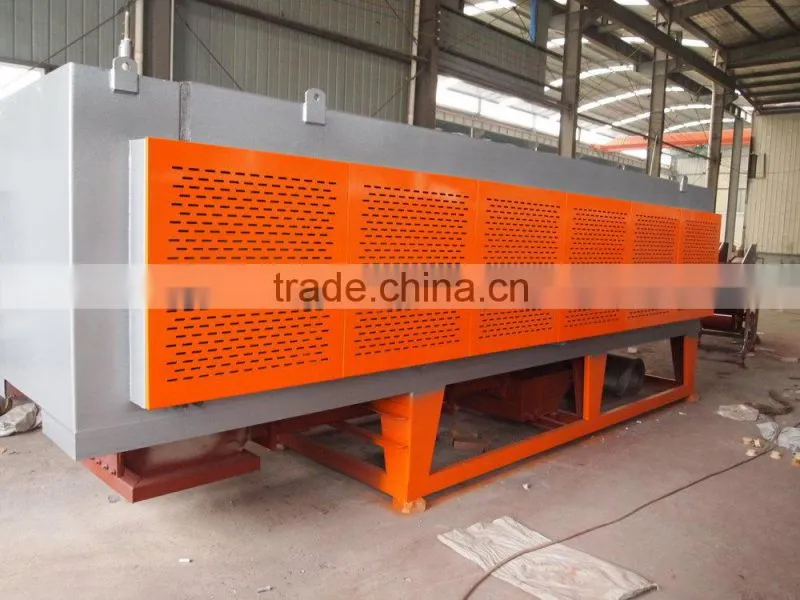

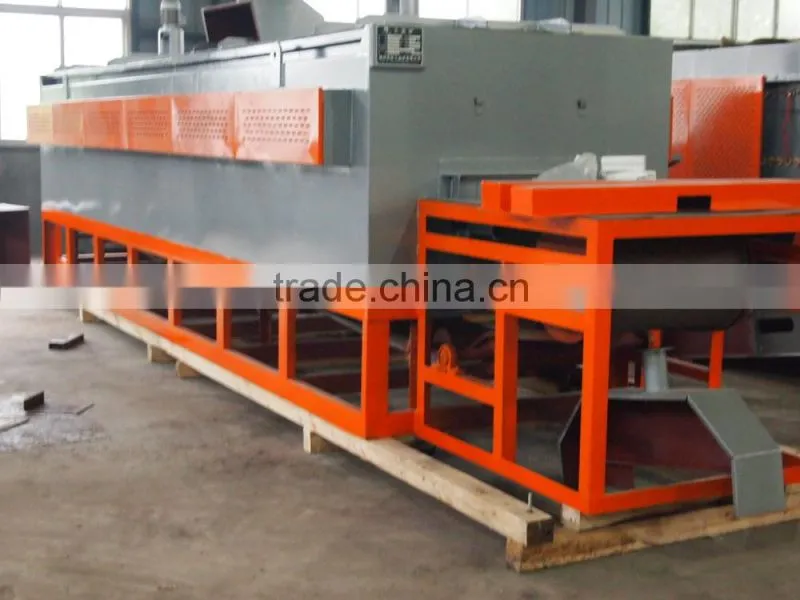

Continuous Mesh Belt Conveyor Furnace
Negotiable
/ Set
1 Set(Min.Order)
- 1 Set / Sets per Month
- SHANGHAI
- Credit Card
You May Like
Product Details
Condition: | New | Type: | Resistance Furnace | Usage: | Other, Heat Treatment Furnace, Carburizing Carbonitriding Hardening Heat Treament |
Place of Origin: | Zhejiang, China | Brand Name: | HUAHONG | Model Number: | RCW |
Voltage: | 380V | Power(W): | 25-90KW | Dimension(L*W*H): | 3000*400*120mm |
Certification: | ISO9001-2008 | Warranty: | 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product Description
H-RCW belt hardening and tempering furnace is a kind of cycle-based operation furnace. The heat elements are electrical heating elements. This type furnace is mainly use for quenching and tempering parts.
Quenchig furnace:
Furnace Model | RCW-20 | RCW-45 | RCW-60 | RCW-75 | RCW-90 | RCW-120 | RCW-150 |
Temperature(°c) | 850 | 850 | 850 | 850 | 850 | 850 | 850 |
Dimension(mm) | 1300X150X50 | 2400X220X50 | 2400X300X50 | 3600X300X50 | 4700X300X80 | 4700X400X80 | 5000X500X80 |
Power(Kw) | 20 | 45 | 60 | 75 | 90 | 120 | 150 |
Production(Kg/h) | 30 | 60 | 100 | 150 | 200 | 250 | 300 |
Tempering furnace:
Furnace Model | RCW-25 | RCW-35 | RCW-45 | RCW-60 | RCW-90 |
Temperature(°c) | 600 | 600 | 600 | 600 | 600 |
Dimension(mm) | 3000X400X120 | 4000X400X120 | 3900X600X120 | 5000X600X120 | 4700X800X120 |
Power(Kw) | 25 | 35 | 45 | 60 | 90 |
Production(Kg/h) | 45 | 60 | 150 | 200 | 300 |
