Continuous Mesh Belt Atmosphere Furnace Conveyor Belt Furnace Factory
Negotiable
MOQ: 2 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Resistance Furnace
Usage:
Heat Treatment Furnace
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mesh Belt Conveyor Oven Gas Protected Hardening FurnaceNegotiableMOQ: 1 Set -
Electric Continunous Industrial Heat Treatment FurnaceNegotiableMOQ: 1 Set
-
Bolt Nut Continue Heat Treatment Furnace LineNegotiableMOQ: 1 Set
-
Industrial Furnace for Hardening Tempering OvenNegotiableMOQ: 1 Set
-
Mesh Belt Hardening Equipment Conveyor Belt Quenching Tempering FurnaceNegotiableMOQ: 1 Set
Condition
New
Type
Resistance Furnace
Usage
Heat Treatment Furnace
Brand Name
HUAHONG
Model Number
RCW
Voltage
380
Power(W)
20-620
Dimension(L*W*H)
customized
Weight
according the size
Certification
ISO9001-2008
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Product introduction:
Suitable for bulk small and medium mechanical parts such as( standard self-tapping screw bearing chain textile hardware hand tools play mat ect.)
In a controlled atmosphere carburizing and carbonitriding quenching heat treatment, etc
Performance characteristics:
The temperature is evenness,use whole fibers liner more save plete control system safe and convinced. Deserve to go up the clearing machine tempering furnace feeder form an Automatic production line.
1.RCW mesh belt quenching furnace parameter
| model | work size(mm) | rate power (KW) | capacity Kg/H |
||
| quenching | carburizing 0.1-0.2(mm) | carbonitriding | |||
| RCW-20 | 1300×150×50 | 20 | 30 | 15 | 10 |
| RCW-45 | 2400×220×50 | 45 | 60 | 30 | 20 |
| RCW-60 | 2400×300×50 | 60 | 100 | 40 | 60 |
| RCW-75 | 3600×300×50 | 75 | 150 | 60 | 45 |
| RCW-90 | 4700×300×80 | 90 | 200 | 90 | 60 |
| RCW-120 | 4700×400×80 | 120 | 150 | 120 | 90 |
| RCW-150 | 5000×500×80 | 150 | 300 | 150 | 120 |
2.RCW mesh belt tempering furnace parameter
| model | rate power (KW) | max capacity(kg/h) | tate temperature°C) | work size(mm) |
| RCW-25 | 25 | 40 | 600 | 3000×400×120 |
| RCW-35 | 35 | 60 | 600 | 4000×400×120 |
| RCW-45 | 45 | 150 | 600 | 3900×600×120 |
| RCW-60 | 60 | 200 | 600 | 5000×600×120 |
| RCW-90 | 90 | 300 | 600 | 4700×800×120 |
| RCW-90 | 90 | 300 | 600 | 6000×600×20 |

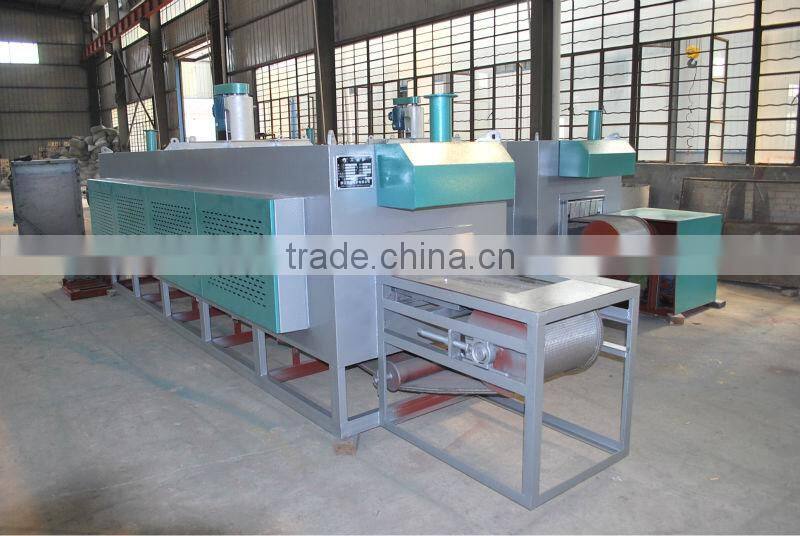

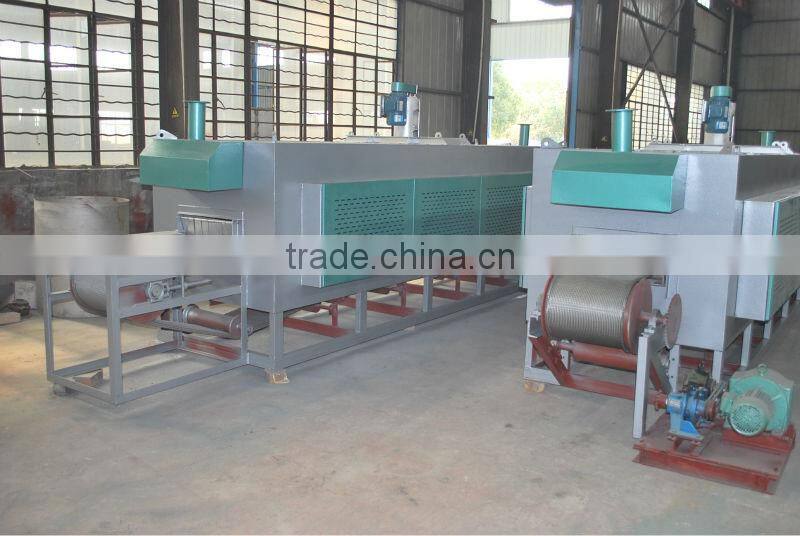

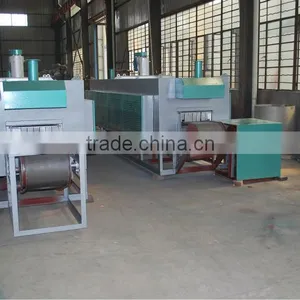

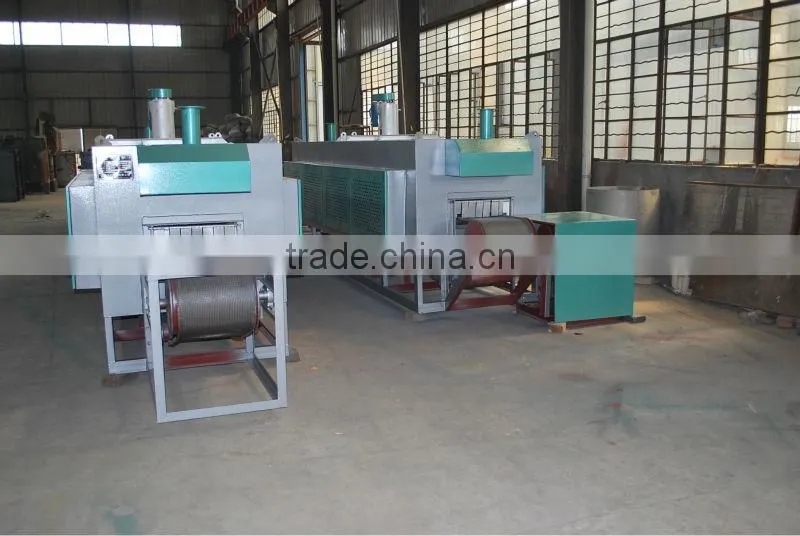

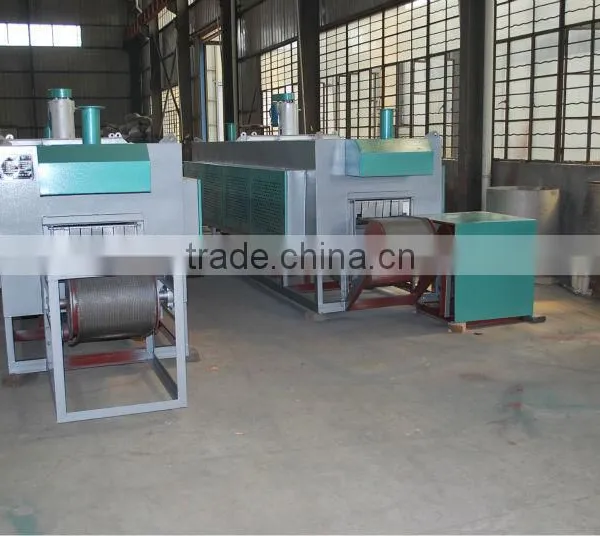

3.pictures show:
