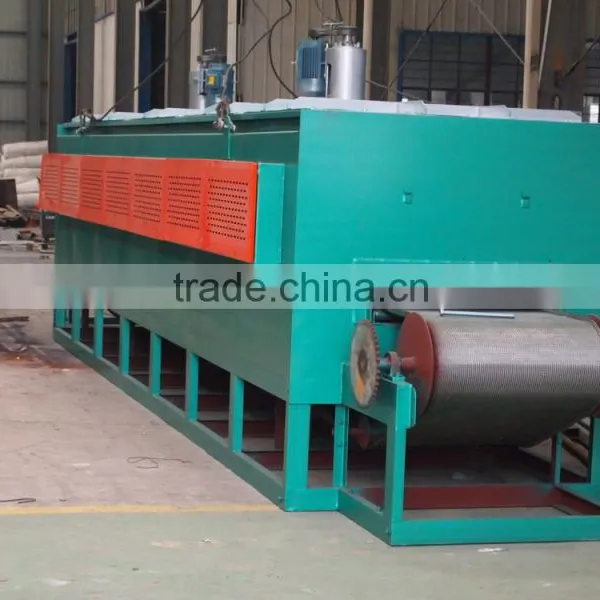

Electric Continunous Industrial Heat Treatment Furnace

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port SHANGAHI
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Resistance Furnace, quenching and Tempering
Usage	Muffle Furnace	Place of Origin	Zhejiang, China
Brand Name	huahong	Model Number	RCW
Voltage	380	Power(W)	20-150Kw
Dimension(LWH)	customized	Certification	ISO900:2008
Warranty	1year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

ComposingUsage:The mass process heat-treatment of machine parts,heating,normalizing,annealing and quenching,carburizing and nitriding in protect atmosphere.

Structure Instruction:The line type mesh furnace formed by mesh belt,furnace sheel,lining,washing tank,strong fan,automatic control system,etc.

Features:

1.The line type mesh furnace main used for mass process of small machine parts,such as:standard parts,bearings, chains, screws, needles,etc.

2.The furnace could achieve the whole heat treatment in one production,such as:heating,normalizing,annealing and quenching,carburizing and nitriding in protect atmosphere.

3.The lining use the full-fiber refractory .This kind of refractory material is lighter and more effective.

4.The strong fan could make strong wind to make the temperature uniformity in the lining.

5.The automatic control system make the producion easier and more economical.

Quenching furnace:

Furnace Model	RCW-20	RCW-45	RCW-60	RCW-75	RCW-90	RCW-120	RCW-150
Temperature(°c)	850	850	850	850	850	850	850
Dimension(mm)	1300X150X50	2400X220X50	2400X300X50	3600X300X50	4700X300X80	4700X400X80	5000X500X80
Power(Kw)	20	45	60	75	90	120	150
Production(Kg/h)	30	60	100	150	200	250	300

Tempering furnace:

Furnace Model	RCW-25	RCW-35	RCW-45	RCW-60	RCW-90
Temperature(°c)	600	600	600	600	600
Dimension(mm)	3000X400X120	4000X400X120	3900X600X120	5000X600X120	4700X800X120
Power(Kw)	25	35	45	60	90
Production(Kg/h)	45	60	150	200	300

The equipment is controlled automatically, with an automatic rolling device and belt deviation

calibration device. The inlet gas comes into the furnace from the bottom and the heating elements is embedded in
