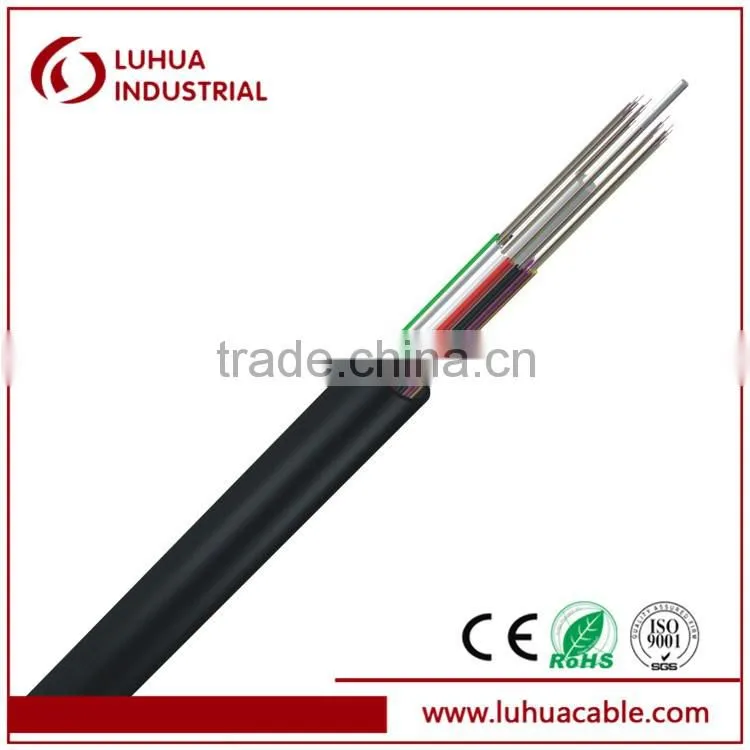

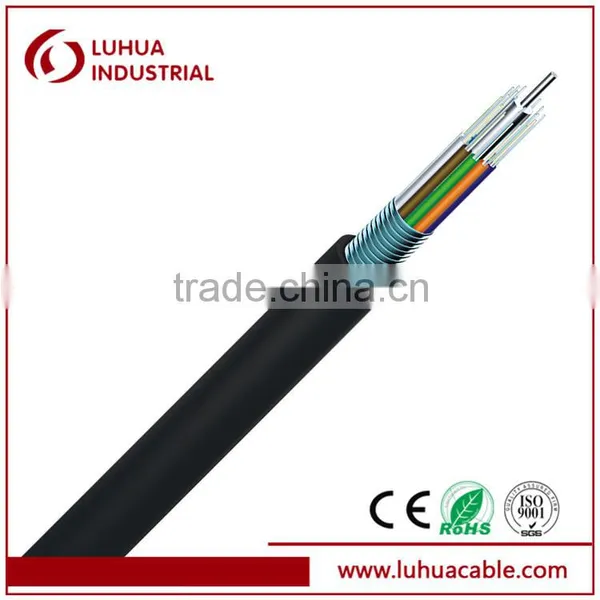

GYTS PSP armored fiber optical cable
Fiber Parameters
No. |
Items |
Unit |
Specification |
|
50/125 | ||||
1 |
Core Diameter |
μm |
50.0±2.5 |
|
2 |
Cladding Diameter |
μm |
124.8±1.0 |
|
3 |
Cladding Non-Circularity |
% |
≤1.0 |
|
4 |
Core-Cladding Concentricity Error |
μm |
≤1.5 |
|
5 |
Coating Diameter |
μm |
245±7 |
|
6 |
Coating Non-Circularity |
% |
≤6.0 |
|
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
|
8 |
Bandwidth(min.) |
850nm |
MHz·km |
600 |
1300nm |
MHz·km |
1200 |
||
9 |
Attenuation Coefficient |
850nm |
dB/km |
≤3.5 |
1300nm |
dB/km |
≤1.5 |
||
Cable Parameters
Items |
Specifications |
|
Fiber Count |
12 |
|
Colored Coating Fiber |
Dimension |
250µm±15µm |
Color |
Blue,Orange,Green,Brown, Grey,Natural,Red,Black, Yellow,Purple,Pink,Aqua |
|
Loose Tube |
Dimension |
1.95mm±0.05mm |
Material |
PBT |
|
Color |
Natural |
|
Filler |
Dimension |
1.95mm±0.05mm |
Material |
PP |
|
Color |
Red,Green,Natural,Natural |
|
Central Strength Member |
Diameter |
1.5mm |
Material |
Steel |
|
Outer Jacket |
Dimension |
10.4mm±0.3mm |
Material |
PE |
|
Color |
Black |
|
Mechanical and Environmental Characteristics
Items |
Unit |
Specifications |
Tension(Long Term) |
N |
600 |
Tension(Short Term) |
N |
1500 |
Crush(Long Term) |
N/10cm |
300 |
Crush(Short Term) |
N/10cm |
1000 |
Min. Bend Radius(Dynamic) |
mm |
20D |
Min. Bend Radius(Static) |
mm |
10D |
Installation Temperature |
℃ |
-20~+60 |
Operating Temperature |
℃ |
-40~+70 |
Storage Temperature |
℃ |
-40~+70 |
