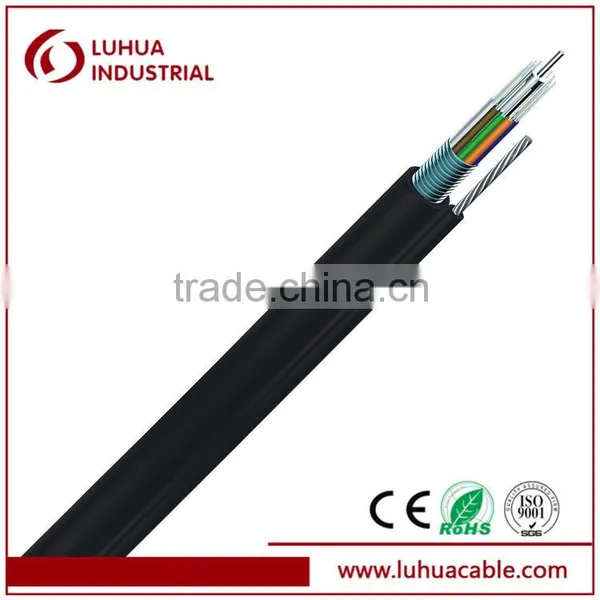

GYFXTH OPTICAL FIBER CABLE

GYFXTH OPTICAL FIBER CABLE thumbnail-1
GYFXTH OPTICAL FIBER CABLE photo-1
US$ 50 - 100 MOQ: 30 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
GYFXTH
Contact Supplier Request Quote Chat Now
Zhejiang Luhua Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name OEM
Model Number GYFXTH

GYFXTH-4B1.3



Fiber Parameters

No.

Items

Unit

Specification

G.652D

1

Mode Field Diameter

1310nm

μm

9.2±0.4

1550nm

μm

10.4±0.5

2

Cladding Diameter

μm

124.8±0.7

3

     Cladding Non-Circularity

%

≤0.7

4

            Core-Cladding Concentricity Error

μm

≤0.5

5

Coating Diameter

μm

245±5

6

    Coating Non-Circularity

%

≤6.0

7

              Cladding-Coating Concentricity Error

μm

≤12.0

8

     Cable Cutoff Wavelength

nm

λcc≤1260

9

Attenuation(max.)

1310nm

dB/km

≤0.36

1550nm

dB/km

≤0.25



Cable Parameters

Items

Specifications

Fiber Count

4

Colored Coating Fiber

Dimension

250µm±15µm

Color

Blue,Orange,Green,Brown,

Loose Tube

Dimension

2.0mm±0.1mm

Material

PBT

Color

Natural

Strength Member

Glass Yarn

Outer Jacket

Dimension

5.8mm±0.2mm

Material

LSZH

Color

Black



Mechanical and Environmental Characteristics

Items

Unit

Specifications

Tension(Long Term)

N

500

Tension(Short Term)

N

1000

Crush(Long Term)

N/10cm

300

Crush(Short Term)

N/10cm

1000

       Min. Bend Radius(Dynamic)

mm

20D

     Min. Bend Radius(Static)

mm

10D

  Installation Temperature

℃

-20~+60

Operating Temperature

℃

-40~+70

Storage Temperature

℃

-40~+70
