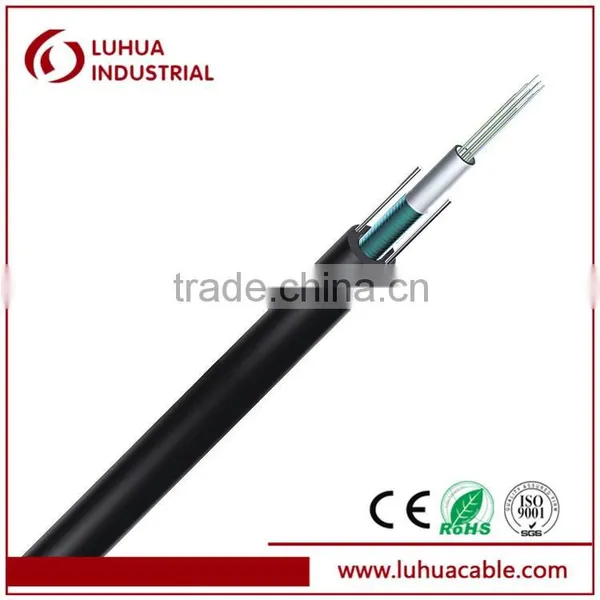

GYXTW OPTICAL FIBER CABLE

GYXTW OPTICAL FIBER CABLE thumbnail-1
GYXTW OPTICAL FIBER CABLE photo-1
US$ 50 - 100 MOQ: 30 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
GYXTW
Contact Supplier Request Quote Chat Now
Zhejiang Luhua Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name OEM
Model Number GYXTW

Hangzhou LinAn Luhua Industrial Co.,Ltd

GYXTW-1~12B1.3



Fiber Parameters

No.

Items

unit

Specification

OM3-150

1

Core Diameter

μm

50.0±2.5

2

Cladding Diameter

μm

124.8±1.0

3

  Core Non-Circularity

%

≤5.0

4

     Cladding Non-Circularity

%

≤1.0

5

            Core-Cladding Concentricity Error

μm

≤1.0

6

Coating Diameter

μm

245±7

7

    Coating Non-Circularity

%

≤6.0

8

              Cladding-Coating Concentricity Error

μm

≤12.0

9

OFL Bandwidth

850nm

MHz·km

≥700

1300nm

MHz·km

≥500

10

Effective Modal Bandwidth

850nm

MHz·km

≥950

1300nm

MHz·km

≥500

11

Attenuation Coefficient

850nm

dB/km

≤3.5

1300nm

dB/km

≤1.5



Cable Parameters

Items

Specifications

Fiber Count

1~12

Colored Coating Fiber

Dimension

250µm±15µm

Color

Blue,Orange,Green,Brown,

Gray,White,Red,Black,

Yellow,Purple,Pink,Aqua

Loose Tube

Dimension

2.15mm±0.05mm (>6core)

2.05mm±0.05mm (≤6core)

Material

PBT

Color

 Natural

Strength Member

Diameter

1.0mm

Material

Steel

Outer Jacket

Dimension

8.0mm±0.3mm

Material

PE

Color

Black



Mechanical and Environmental Characteristics

Items

Unit

Specifications

Tension(Long Term)

N

500

Tension(Short Term)

N

1000

Crush(Long Term)

N/10cm

300

Crush(Short Term)

N/10cm

1000

      Min. Bend Radius(Dynamic)

mm

20D

   Min. Bend Radius(Static)

mm

10D

Installation Temperature

℃

-20~+60

Operating Temperature

℃

-40~+70

Storage Temperature

℃

-40~+70
