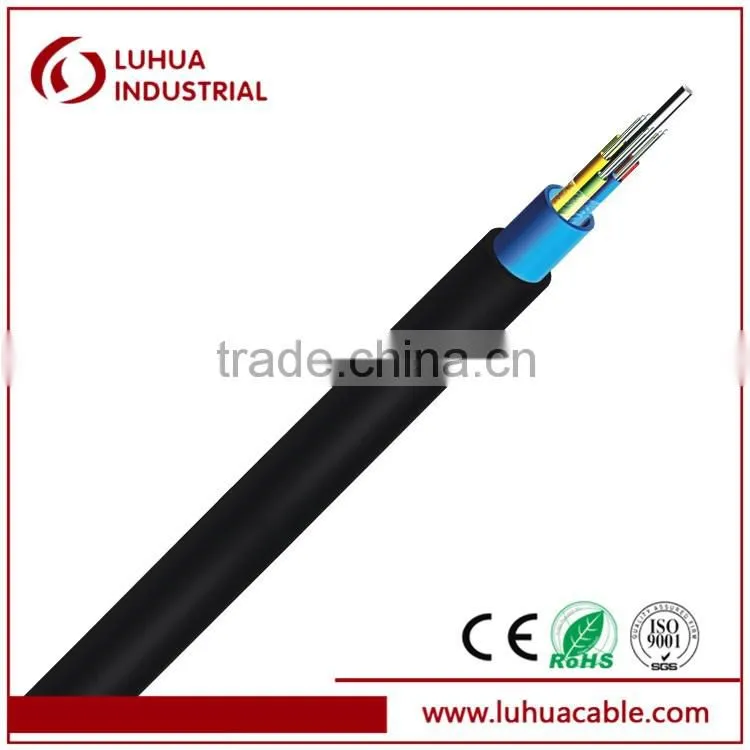

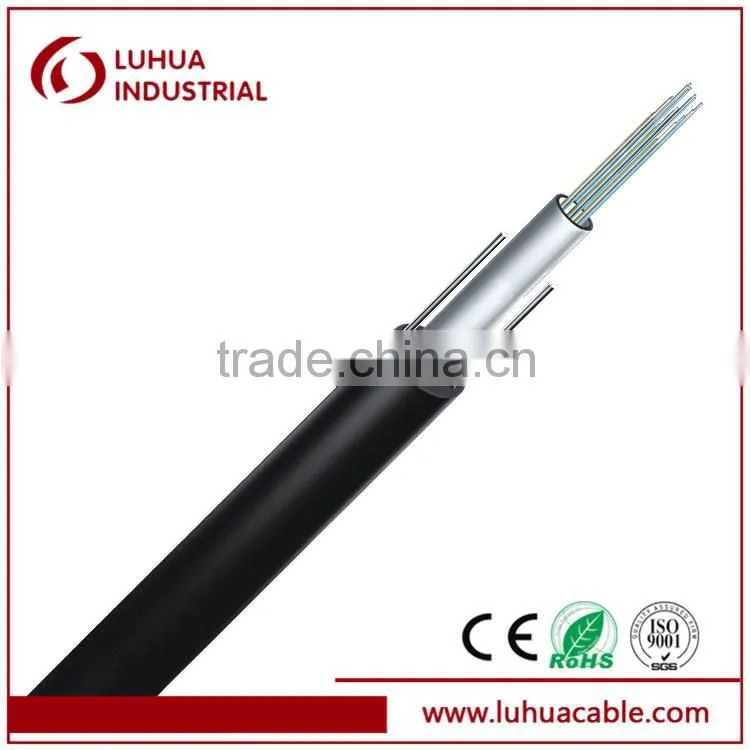

Help CenterGYXTW Armored Outdoor Fiber Optical Cable
Related Products
-
GYXTW Fiber Optical Cable for OutdoorUS$ 1 - 5MOQ: 50000 Meters -
GYTA Stranded Loose Tube Non-armored Outdoor CableUS$ 20 - 50MOQ: 20 Kilometers
-
12 Core GYTC8A Self-support Figure 8 CableUS$ 20 - 50MOQ: 20 Kilometers
-
GYTY Fiber Optical CableUS$ 0.06 - 0.38MOQ: 50000 Meters
-
GYTA Fiber Optical Cable for OutdoorUS$ 0.1 - 0.5MOQ: 20000 Meters
Fiber Parameters
No. |
Items |
Unit |
Specification |
|
G.652D | ||||
1 |
Mode Field Diameter |
1310nm |
μm |
9.2±0.4 |
1550nm |
μm |
10.4±0.5 |
||
2 |
Cladding Diameter |
μm |
124.8±0.7 |
|
3 |
Cladding Non-Circularity |
% |
≤0.7 |
|
4 |
Core-Cladding Concentricity Error |
μm |
≤0.5 |
|
5 |
Coating Diameter |
μm |
245±5 |
|
6 |
Coating Non-Circularity |
% |
≤6.0 |
|
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
|
8 |
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
|
9 |
Attenuation(max.) |
1310nm |
dB/km |
≤0.36 |
1550nm |
dB/km |
≤0.22 |
||
Cable Parameters
Items |
Specifications |
|
Fiber Count |
1~12 |
|
Colored Coating Fiber |
Dimension |
250µm±15µm |
Color |
Blue,Orange,Green,Brown, Gray,White,Red,Black, Yellow,Purple,Pink,Aqua |
|
Loose Tube |
Dimension |
2.15mm±0.05mm (>6 Cores ) |
2.05mm±0.05mm (≤6 Cores) | ||
Material |
PBT |
|
Color |
Natural |
|
Strength Member |
Diameter |
1.0mm |
Material |
Steel |
|
Outer Jacket |
Dimension |
8.0mm±0.3mm |
Material |
PE |
|
Color |
Black |
|
Mechanical and Environmental Characteristics
Items |
Unit |
Specifications |
Tension(Long Term) |
N |
500 |
Tension(Short Term) |
N |
1000 |
Crush(Long Term) |
N/10cm |
300 |
Crush(Short Term) |
N/10cm |
1000 |
Min. Bend Radius(Dynamic) |
mm |
20D |
Min. Bend Radius(Static) |
mm |
10D |
Installation Temperature |
℃ |
-20~+60 |
Operating Temperature |
℃ |
-40~+70 |
Storage Temperature |
℃ |
-40~+70 |
