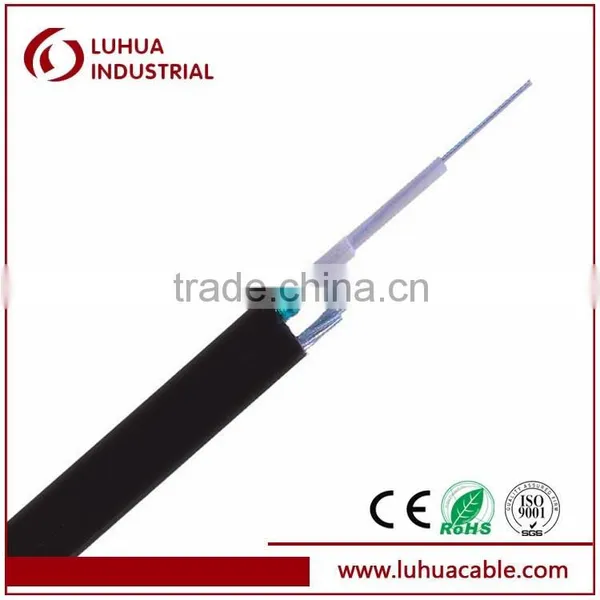

GYXTC8S FIGURE 8 CABLE

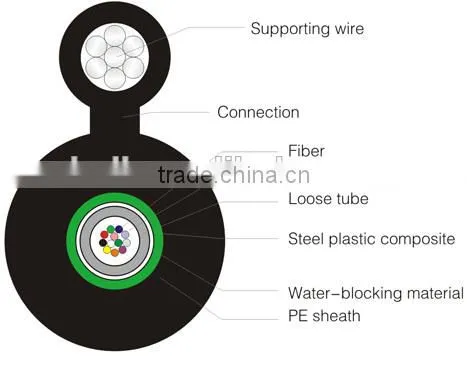

Metal Strength member, central tube type, jelly filled, PSP-Polyethylene(PE) sheath, Figure-8 self-supporting type Outdoor optical fiber cable for telecommunication.
Technical characteristic
·The unique fiber excess length control method provides the cable with excellent mechanical and environmental properties
·Very strict material and manufacturing control guarantees the cable can woke stably for more than 30 years
·Special jelly filled in the loose tube provides the fibers with critical protection
·Steel tape strength optical fiber cable in crush resistance
·Figure-8 self-supporting structure
Cable performance | |
Crush resistance |
2000N/100mm |
Bending radius |
Short time 20D |
Long time 10D | |
Temperature range | |
Transport/storage |
-40~+60 ℃ |
Installation |
-40~+60 ℃ |
Operation |
-40~+60 ℃ |
Ref .Standard : IEC 60794-3-10/ IEC 60304
Type |
Fiber count |
Steel wire Dia./mm |
Messenger Wire(mm) |
Sheath thickness (mm) |
Optical cable |
Max tensile load (N) |
|
Outer Dia (mm) |
Weight (kg/km) PE/LSZH |
||||||
GYXTC8S-2xxx |
2 |
10*1.0 |
3.0(7*1.0) |
2.2 |
8.2 |
-- |
2000 |
GYXTC8S-4xxx |
4 |
10*1.0 |
3.0(7*1.0) |
2.2 |
8.2 |
-- |
2000 |
GYXTC8S-6xxx |
6 |
10*1.0 |
3.0(7*1.0) |
2.2 |
8.2 |
-- |
2000 |
GYXTC8S-8xxx |
8 |
10*1.0 |
3.0(7*1.0) |
2.2 |
8.2 |
-- |
2000 |
GYXTC8S-10xxx |
10 |
10*1.0 |
3.0(7*1.0) |
2.2 |
8.2 |
-- |
2000 |
GYXTC8S-12xxx |
12 |
10*1.0 |
3.0(7*1.0) |
2.2 |
8.2 |
-- |
2000 |
Remark: xxx means type of optical fiber
location
Hangzhou LinAn LuHua Industrial Co.,Ltd is situated in Linglong Industrial Zone, Lin'an, Zhejiang
province , China.
strength
Our company is a capable enterprise with more than15 years experiences both in the production
and the management system, We have the most advanced testing equipment, and got some
authority certificate of this field,such as the ISO-9001, CE, ROSHS, all of these contribute
to insure that we can provide the products with high quality.
major product

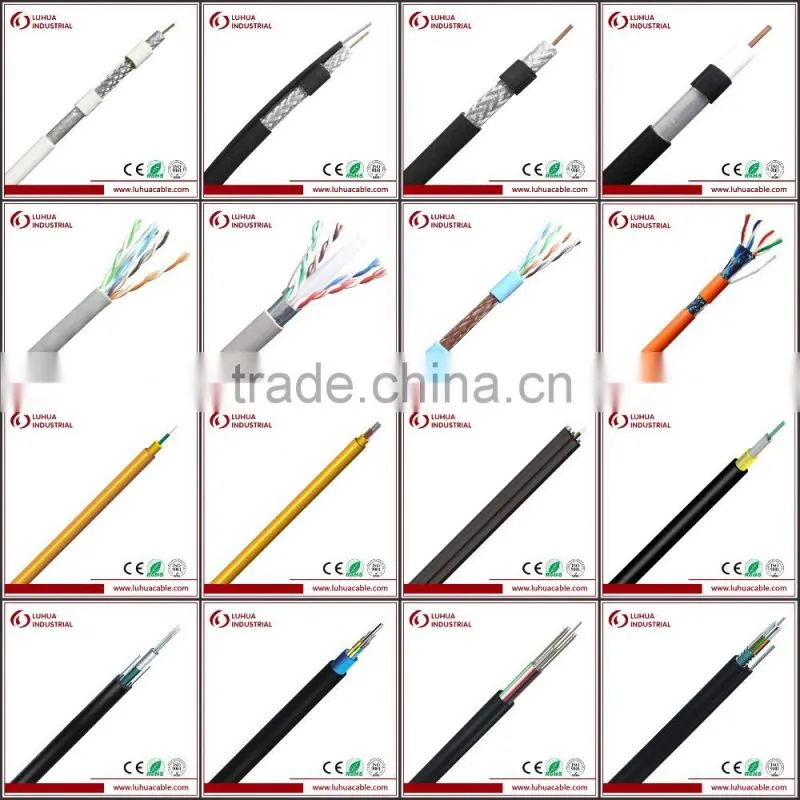

Our cable products including:
Fiber optical cable (indoor fiber cable for FTTH Cable&outdoor fiber cable for GY series)
Coaxial cable (RG series,JIS series,D-FB series RF Cables)
Lan cable ( UTP/FTP/SFTP CAT5e/CAT6/CAT6A,etc)
