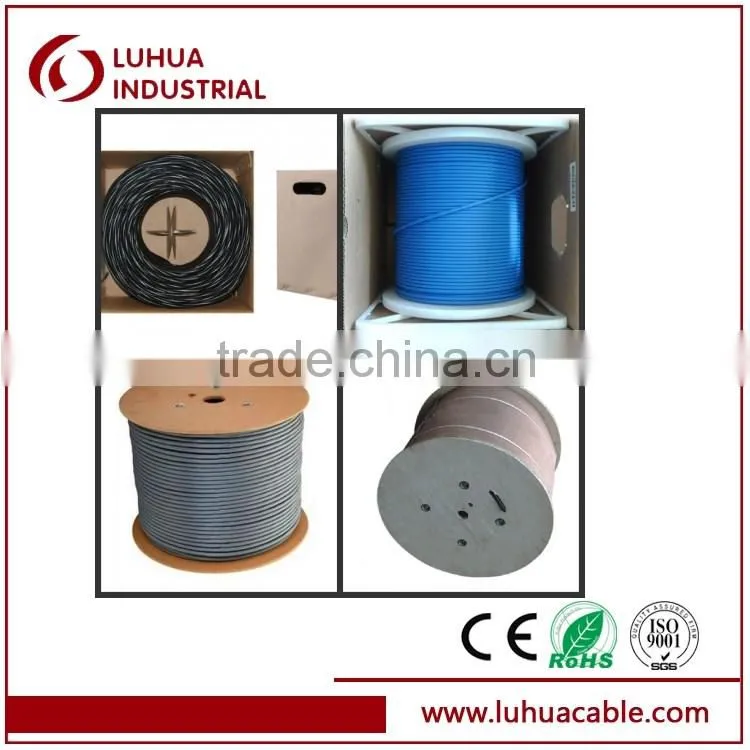

EU Standard UTP CAT5e cable with 23AWG conductor
- Ningbo/Shanghai
- T/T D/P D/A
You May Like
-
CMR Rated SFTP CAT5e lan cable passed Fluke test Permanent link 90 mtrs
-
CMR Rated Networking cable UTP CAT5e lan cable for USA Market
-
SFTP CAT6 LAN cable 4 pairs network cable
-
Professional Manufacturers SFTP CAT7 cable LAN cable computer cable with CE and RoHS approved made in China
-
Hangzhou Manufacturer High Quality UTP cable CAT6 computer cable with competitive price
-
high quality FTP CAT6 cable internet high speed Lan cable Network cable computer cable China factory
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Luhua | |
| Model Number | UTP Cat5e | Type | Cat 5e | |
| Number of Conductors | 8 |
Product Description

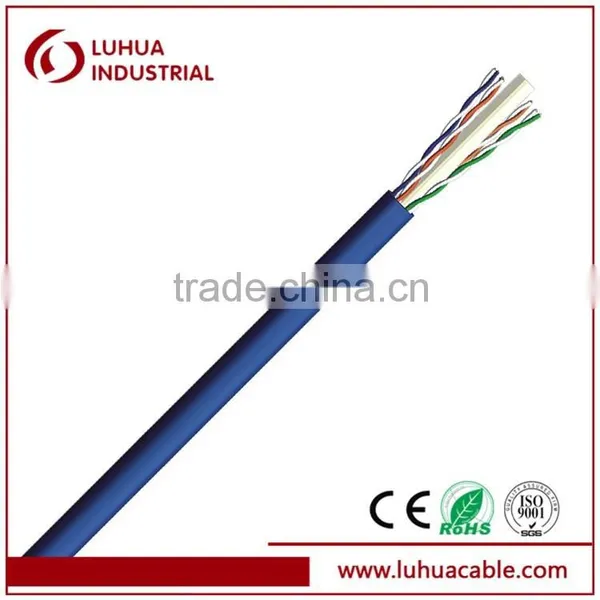

REACH Standard UTP CAT5e cable
UTP CAT5e
Application
100 Base-TX,100 Base-T4
100VG-AnyLAN
100 Base-T,(Gigabit Ethernet),ATM
Product Description
Rated temperature: 60℃,75℃,90℃
Reference Standard:UL444,TIA/EIA-568B
Bare copper conductor
RoHS complied PVC,PE or LSZH Jacket
Complies to TIA/EIA-568B&ISO/IEC11801
Cable construction
Item No. | LH501 | LH502 | LH503 | LH504 | LH505 |
Application | Indoor | Indoor | Outdoor | Outdoor | Outdoor |
Conductor Dia | 0.50mm | 0.51mm | 0.51mm | 0.51mm | 0.51mm |
Core Dia | 0.91mm | 0.91mm | 0.91mm | 0.91mm | 0.91mm |
No.of Pairs | 4 | 4 | 4 | 4 | 4 |
Nom.OD(mm) | 5.1mm | 5.1mm | 5.1mm | 5.1mm | 5.1mm |
Jacket | PVC | PVC | PE | PVC+PE | LSZH |
Remark |
|
| Jelly filled | Water block Tape |
|
Electrical Characteristics
Frequency(MHz) | 1 | 4 | 8 | 10 | 16 | 25 | 31.25 | 62.5 | 100 | 155 | 200 | 310 | 350 |
Impedance(Ω) | 100±15 | 100±18 | 100±22 | ||||||||||
RL(dB) | 20 | 23 |
| 25 | 25 | 25 | 24 | 22 | 20 | 19 | 19 | 18 | 17 |
Attenuation(dB/100m) | 2.0 | 4.1 |
| 5.8 | 6.5 | 8.2 | 10.4 | 17.0 | 22 | 28.1 | 28.1 | 41.8 | 44.9 |
NEXT(dB/100m) | 65.3 | 56.3 |
| 51.8 | 50.3 | 47.3 | 44.3 | 38.4 | 35.3 | 33.0 | 33.0 | 28.0 | 27.0 |
ELFEXT(dB/100m) | 63.8 | 51.7 |
| 45.7 | 43.8 | 39.7 | 35.8 | 27.8 | 23.8 | 20.0 | 20.0 | 14.0 | 13.0 |
PS NEXT(dB/100m) | 62.3 | 53.3 |
| 48.8 | 47.3 | 44.2 | 41.3 | 35.4 | 32.3 | 29.0 | 29.0 | 25.0 | 24.0 |
PSELFEXT(dB/100m) | 60.8 | 48.7 |
| 42.7 | 40.8 | 36.7 | 32.8 | 24.8 | 20.8 | 17.0 | 17.0 | 11.0 | 10.0 |
Propagation Speed(m/s) | 0.65c | ||||||||||||
