SY32E Slot Cutting Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

EMM

Extreme Machinery Manufacture Co., Ltd. (Jingjiang)

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name EMM

Model Number SY32E

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

SY32E slot cutting machine/slotted angle making machine/slot cutter machine

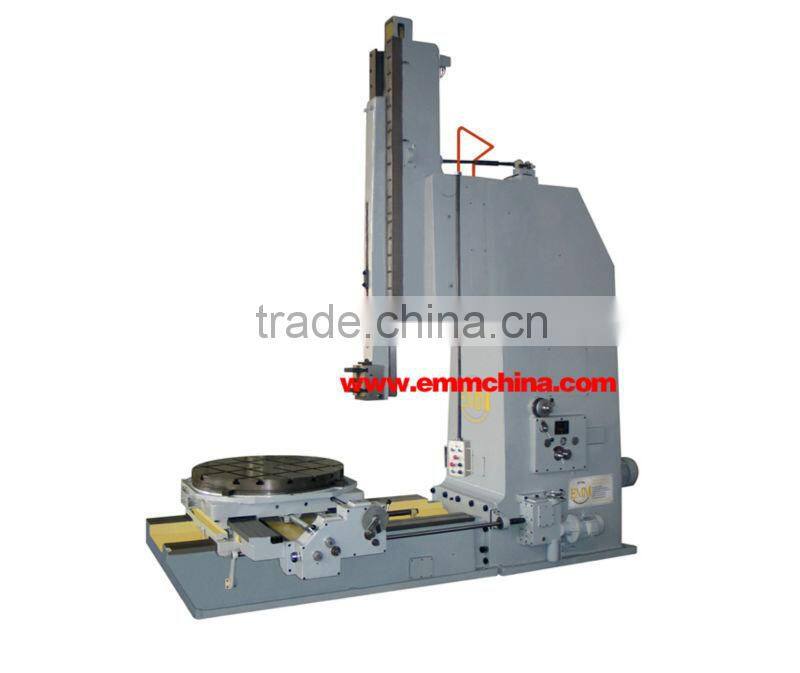

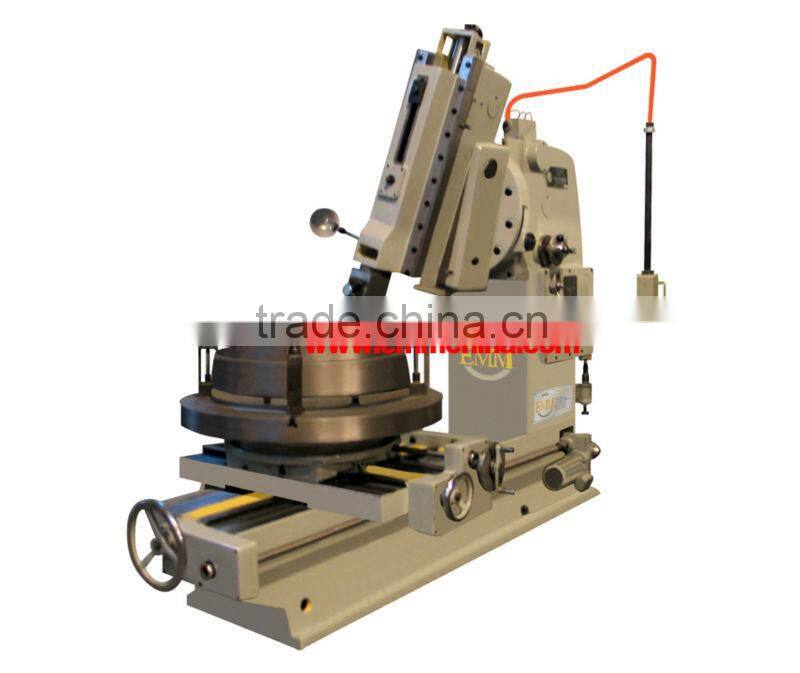

SY32E slot cutting machine

Description	SY32E
Max. stroke length of ram	350	mm
Min. stroke length of ram	125	mm
Max. slotting length	320	mm
Distance of vertical adjust of ram	340	mm
Extreme high speed for work stroke of ram	29	m/min
Extreme low speed for work stroke of ram	5	m/min
Speed ratio of work stroke and return stroke of ram	1:1.53
Speed adjust for work stroke	(Stepless)
Max. slotting force	16.6	KN
Distance from tool holding surface to column front	630	mm
Distance from worktable surface to underside of slide rack	500	mm
Max. longitudinal travel of worktable	620	mm
Max. transverse travel of worktable	535	mm
Diameter of worktable	φ630	mm
Inclination of ram	0—10	(°)
Feed range of worktable in longitudinal & transverse direction	0.054-1.24	mm
Rotary feed range of worktable	0.035-0.805	(°)
Max size of slotting tool (Length×High)	25×40	mm
Max loading weight on worktable	500	kg
T-slot width in the center of worktable	18H8	mm
Power supply of main electric motor	5.5	KW
Power of motor for rapid traverse	0.75	KW
Net weight (approx)	2900	kg
Dimensions of machine tool (Length×Width×High)	2624×1405×2505	mm
